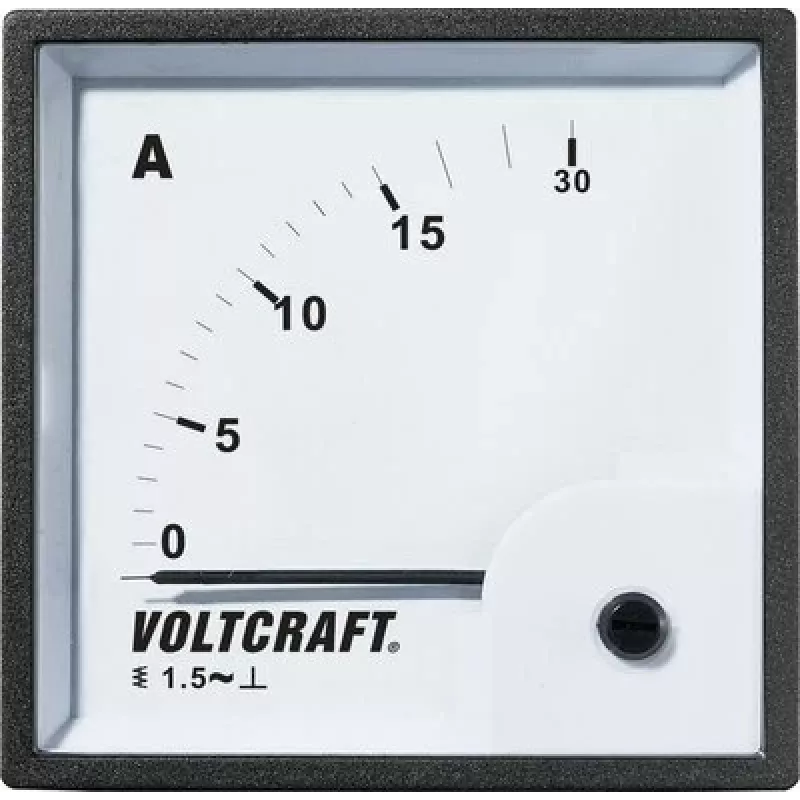

VOLTCRAFT AM-72X72/15A draaispoel-wisselstroommeter, 72x72mm, 0-15A, klasse 1.5

The VOLTCRAFT AM-72X72/15A stands out with its robust moving iron movement, delivering reliable AC current measurement in a compact 72x72mm panel format. Unlike digital meters that require power and can be hard to read in bright light, this analog ammeter offers instant, glanceable readings with no auxiliary supply needed.

Highlights

• Moving iron measurement principle for true RMS response on AC
• Direct measurement range of 0–15 A without external shunts
• Accuracy class 1.5 for dependable monitoring
• Front protection IP52 against dust and water splashes
• Standard 68x68mm panel cutout fits common enclosures

In daily use

Ideal for control panels, generator sets, and industrial machinery, the AM-72X72/15A provides continuous current indication. Its 60mm scale length ensures clear readability from a distance. Screw terminals accept conductors up to 6 mm², making installation straightforward. The meter withstands continuous overload of 1.2 times nominal current and short-term surges up to 150 A for 5 seconds, adding resilience in demanding environments.

Full specifications

• Measurement type: AC current (ammeter)
• Measurement principle: Moving iron
• Measurement range: 0–15 A
• Accuracy class: 1.5
• Frequency range: 15–100 Hz
• Front panel dimensions: 72 x 72 mm
• Panel cutout: 68 x 68 mm
• Installation depth: 60 mm
• Scale length: approx. 60 mm
• Display: Analog scale
• Mounting: Panel mount
• Housing material: Plastic
• Protection class front: IP52
• Protection class terminals: IP00
• Connection: Screw terminals
• Operating temperature: -25 to +50 °C
• Storage temperature: -40 to +70 °C
• Overload capacity continuous: 1.2 x nominal
• Overload capacity short-term: 10 x nominal for 5 s

Final note

With its proven moving iron design and clear analog display, the VOLTCRAFT AM-72X72/15A is a dependable choice for AC current monitoring where simplicity and durability matter most.
