Voltcraft AM-86X65/1MA inbouw-meetinstrument gelijkstroom 0-1 mA draaispoelmeter

Measures DC current from 0 to 1 mA with a moving-coil movement and an accuracy class of 2.5. The front panel is 86 x 65 mm, and the panel cutout is 76 x 58 mm. Installation depth is 35 mm, with screw terminal connections.

Overview

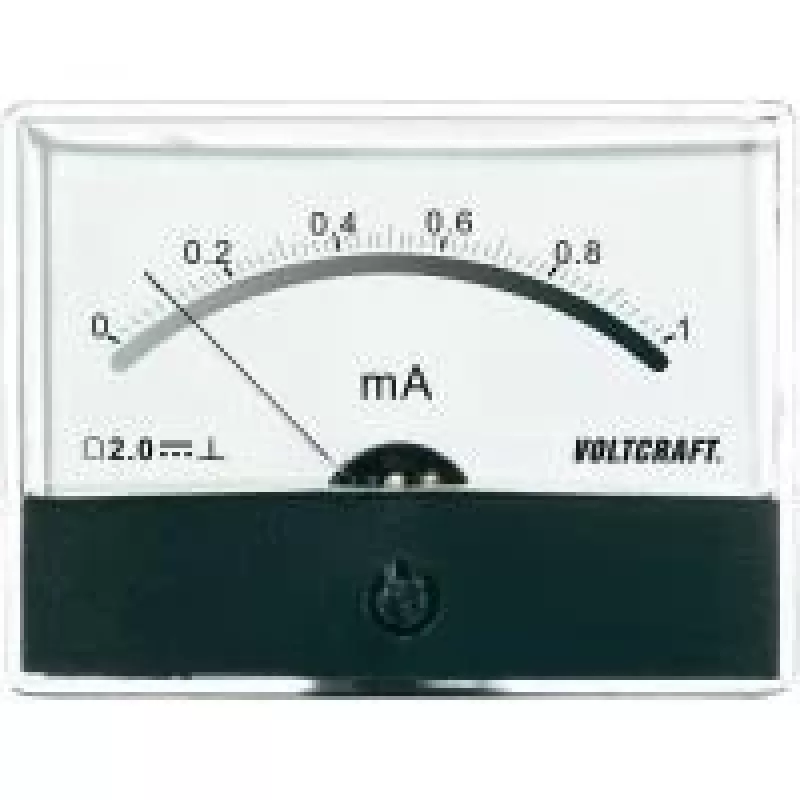

The Voltcraft AM-86X65/1MA is an analog panel meter for measuring DC current in the range of 0 to 1 mA. It uses a moving-coil mechanism and has an accuracy class of 2.5. The black housing is designed for panel mounting, with a front panel size of 86 x 65 mm and a cutout of 76 x 58 mm. Installation depth is 35 mm, and connections are made via screw terminals. Operating temperature range is -10 to +50 °C, storage temperature -25 to +65 °C, and relative humidity below 85%.

Technical details

• Measurement type: DC current
• Measuring range: 0 - 1 mA
• Display type: Analog
• Measuring principle: Moving coil
• Accuracy class: 2.5
• Front panel dimensions (W x H): 86 x 65 mm
• Panel cutout dimensions (W x H): 76 x 58 mm
• Installation depth: 35 mm
• Connection type: Screw terminals
• Operating temperature: -10 to +50 °C
• Storage temperature: -25 to +65 °C
• Relative humidity: < 85%
• Housing color: Black
• Mounting type: Panel mount

Our verdict

A straightforward analog DC current panel meter for 0-1 mA measurements, suitable for panel mounting in industrial or laboratory settings.
