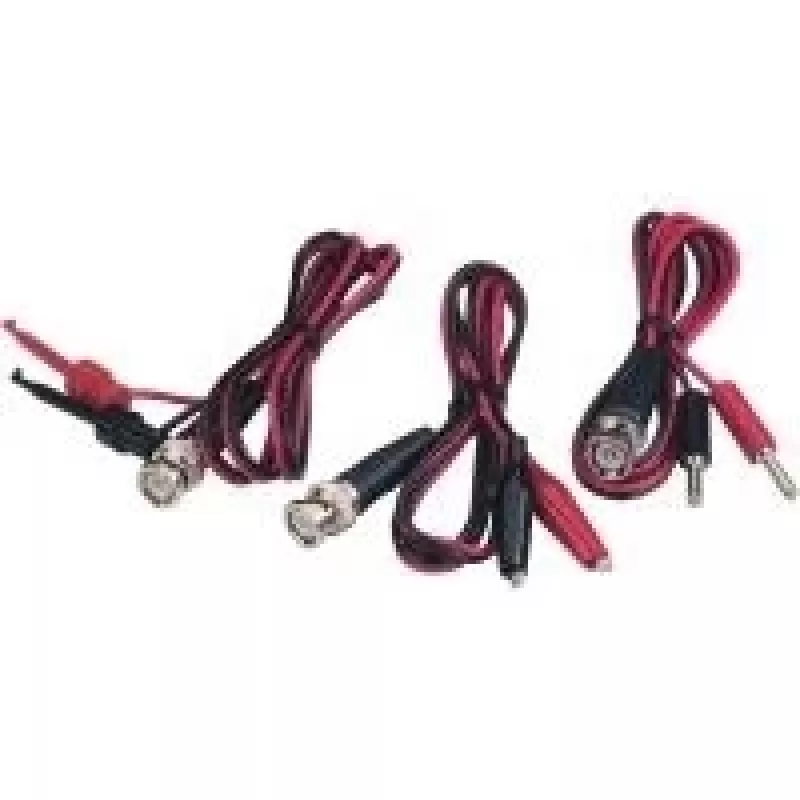

Voltcraft BNC-meetsnoerset met krokodillenklemmen, 0,8 m, zwart/rood (KC300IAB)

Connect your oscilloscope or signal generator to test points quickly and safely with this Voltcraft BNC test lead set. The set includes two coaxial leads: one black and one red, each terminated with a BNC plug on one end and an alligator clip on the other. Ideal for electronics labs, repair benches, and field service where reliable signal connections are essential.

Key specifications

• Connector A: BNC plug (male)
• Connector B: Alligator clips (nickel-plated steel, approx. 10 mm opening)
• Cable length: 0.8 m per lead
• Cable type: Coaxial, 50 Ohm impedance
• Max. voltage: 300 V, CAT II
• Max. current: 3 A
• Insulation: PVC
• BNC connector material: Nickel-plated brass
• Colour: Black and red

Why choose it

The 50 Ohm coaxial design ensures signal integrity for high-frequency measurements. Nickel-plated connectors resist corrosion and provide a secure connection. The alligator clips grip test points firmly, leaving your hands free for adjustments.

Ideal use cases

• Connecting oscilloscopes to circuit boards
• Signal generator output to test fixtures
• General test and measurement in electronics

Good to know

The set includes two leads, one black and one red, for easy channel identification. The clips open to approximately 10 mm, suitable for a wide range of terminals and wires.
