VOLTCRAFT BS-820 HD inspectiecamera met 5,5 mm sonde, 1 m kabel, 4,3 inch LCD, Full HD-opname

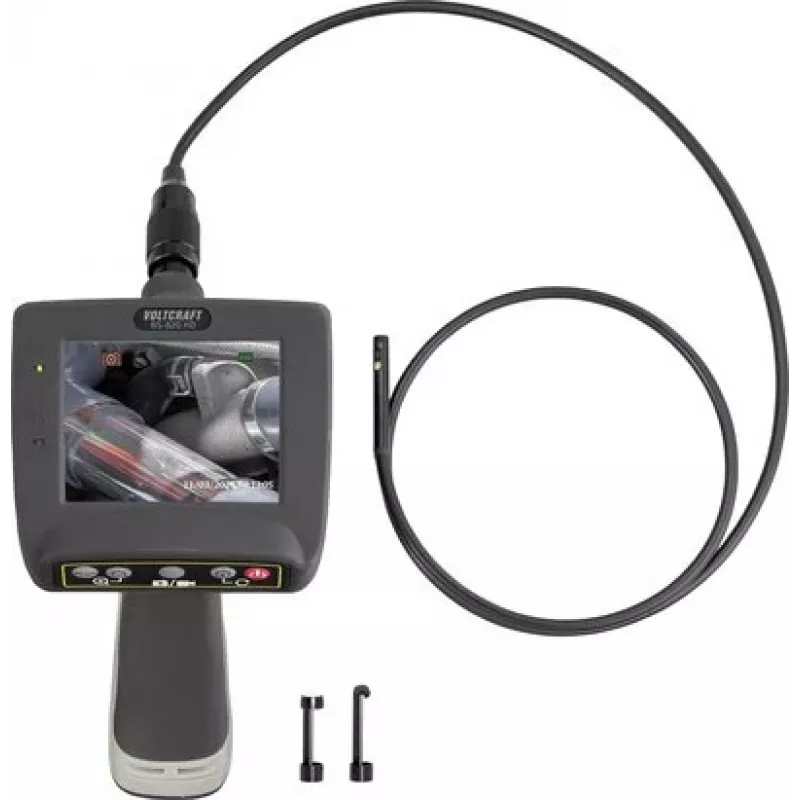

Hard-to-reach areas, hidden cavities, and dark corners often hide problems that are impossible to see without dismantling equipment or cutting into walls. The VOLTCRAFT BS-820 HD inspection camera solves this by putting a high-resolution eye on a flexible 1-metre probe, so you can visually inspect engines, pipes, wall cavities, and machinery without destructive teardown. The 5.5 mm diameter probe slips into narrow openings, while the 4.3-inch colour LCD screen shows a crisp live view, and you can capture photos or Full HD videos for documentation.

Who is it for

This endoscope is built for automotive technicians, HVAC engineers, electricians, plumbers, and serious DIYers who need to see inside confined spaces. Whether you are checking cylinder walls, tracing cable runs, inspecting drain lines, or verifying weld quality, the BS-820 HD gives you a clear view without guesswork.

Main features

• 5.5 mm camera probe with 1 m semi-rigid cable reaches deep into narrow openings
• 4.3-inch LCD colour display with 480 x 272 resolution for a bright, detailed image
• Full HD 1920 x 1080 photo and video recording to MicroSD card (up to 32 GB, not included)
• IP67 waterproof camera head withstands immersion and dusty environments
• 6 dimmable LEDs on the probe tip illuminate dark inspection areas
• 70° field of view and 30–80 mm depth of field keep subjects in focus
• Rechargeable 2600 mAh Li-ion battery provides up to 4 hours of run time
• USB-C charging port for convenient recharging
• Digital zoom and image rotation help you examine details from any angle

Specifications

• Display: 4.3" LCD colour, 480 x 272 pixels
• Video resolution: 1920 x 1080 (Full HD), 1280 x 720 (HD)
• Photo resolution: 1920 x 1080 (Full HD)
• Probe diameter: 5.5 mm
• Probe length: 1 m
• Camera head protection: IP67 waterproof
• Illumination: 6 dimmable LEDs
• Field of view: 70°
• Depth of field: 30–80 mm
• Storage: MicroSD card up to 32 GB (not included)
• Battery: Rechargeable Li-ion, 2600 mAh
• Operating time: up to 4 hours
• Charging port: USB-C
• Operating temperature: 0 to 45 °C
• Digital zoom: yes
• Image rotation: yes
• Video recording: yes
• Snapshot function: yes

Tips

For best results, insert the probe slowly and rotate it to orient the camera correctly. Use the dimmable LEDs to avoid glare on reflective surfaces. Always clean and dry the probe after use in wet environments to extend its service life. Keep a spare MicroSD card on hand so you never run out of storage during an inspection.
