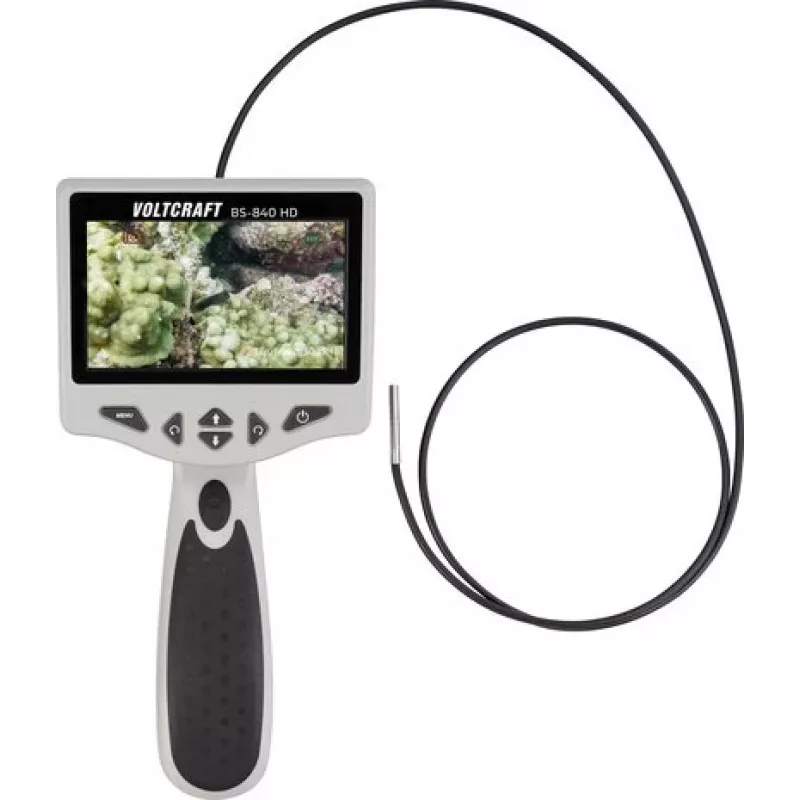

VOLTCRAFT BS-840 HD endoscoopsonde 3,9 mm diameter, 1 m lengte

For professionals who demand precision in tight spaces, the VOLTCRAFT BS-840 HD endoscope probe delivers a 3.9 mm diameter and 1 m semi-rigid cable that reaches where standard cameras cannot. Unlike bulky alternatives, this probe pairs with the BS-840 HD system to capture 1280 x 720 HD video with a 60° field of view and 6 dimmable LEDs, ensuring clear visuals even in dark, confined areas.

Highlights

• Ultra-slim 3.9 mm probe diameter for accessing narrow openings
• 1 m semi-rigid cable maintains shape for guided inspection
• HD 1280 x 720 resolution with 60° field of view
• 6 dimmable LEDs for adjustable illumination
• IP67 waterproof probe head and cable for wet environments
• Depth of field from 30 to 80 mm for versatile focus
• Durable PVC and metal construction
• Operating temperature range 0 to +45 °C

In daily use

Inspect engine cylinders, wall cavities, or pipe interiors with confidence. The semi-rigid cable can be bent to navigate curves, while the dimmable LEDs prevent glare on reflective surfaces. The IP67 rating means you can use it in damp conditions without worry. Connect to the BS-840 HD base unit (not included) and view real-time HD footage on its display.

Full specifications

• Product type: Endoscope probe
• Compatibility: VOLTCRAFT BS-840 HD endoscope system
• Probe diameter: 3.9 mm
• Probe length: 1 m
• Camera resolution: 1280 x 720 pixels (HD)
• Field of view: 60°
• Depth of field: 30 - 80 mm
• Illumination: 6 dimmable LEDs
• Protection class: IP67 (probe head and cable)
• Cable type: Semi-rigid
• Operating temperature: 0 to +45 °C
• Storage temperature: -20 to +60 °C
• Connector type: Proprietary (for BS-840 HD system)
• Material: PVC, metal

Final note

This probe is an essential accessory for your BS-840 HD system, extending its reach into the most challenging inspection points. Keep a spare on hand to minimise downtime.
