VOLTCRAFT ISO-gekalibreerde digitale multimeter IP65 CAT III 1000V CAT IV 600V 6000 Counts 1590172

Engineered for demanding electrical environments, this VOLTCRAFT digital multimeter delivers True RMS accuracy across AC and DC measurements, with a CAT III 1000 V / CAT IV 600 V safety rating and IP65 protection against dust and water jets. ISO calibration ensures traceable precision straight out of the box.

Overview

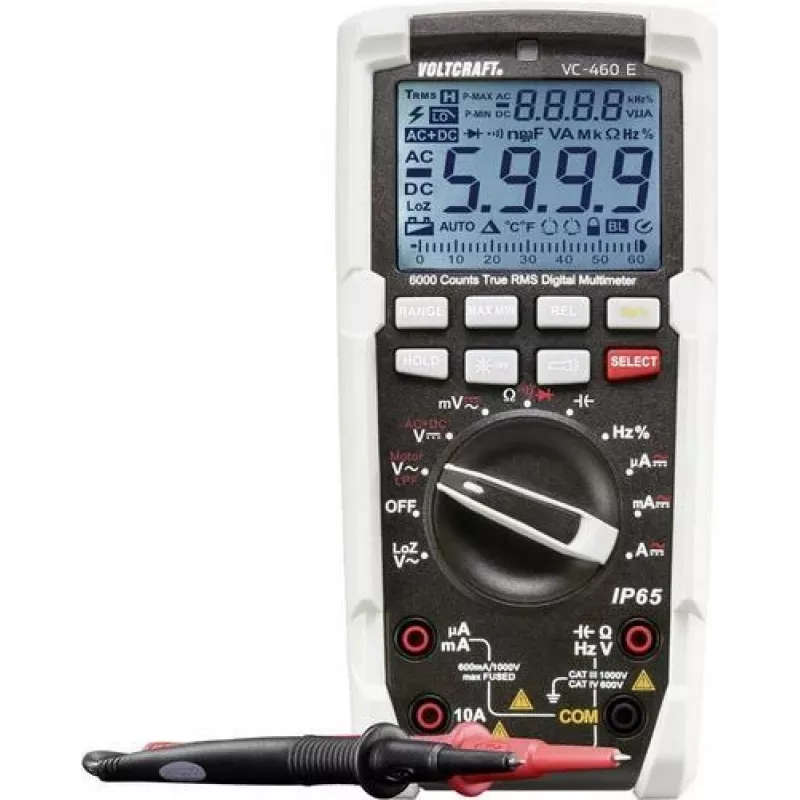

The VOLTCRAFT 1590172 is a professional-grade handheld multimeter built for electricians, technicians, and engineers who require reliable readings in harsh conditions. Its 6000-count LCD display with backlight provides clear visibility, while auto-ranging simplifies operation. The meter measures DC/AC voltage up to 1000 V and 750 V respectively, DC/AC current up to 10 A, resistance up to 60 MΩ, capacitance up to 100 mF, frequency up to 10 MHz, and temperature from -40 °C to +1000 °C with a K-type thermocouple (sensor not included).

What stands out

• ISO calibration certificate included for documented accuracy
• IP65-rated housing: dust-tight and protected against water jets
• CAT III 1000 V / CAT IV 600 V safety rating for high-energy circuits
• True RMS measurement for accurate readings on non-sinusoidal waveforms
• Data hold and min/max functions to capture transient values
• Diode and continuity tests with audible buzzer
• Powered by a single 9 V battery (not included)

Technical details

• Display: 6000 counts, LCD, backlit
• DC voltage range: 0.1 mV – 1000 V
• AC voltage range: 0.1 mV – 750 V
• DC current range: 0.1 µA – 10 A
• AC current range: 0.1 µA – 10 A
• Resistance range: 0.1 Ω – 60 MΩ
• Capacitance range: 1 nF – 100 mF
• Frequency range: 1 Hz – 10 MHz
• Temperature range: -40 °C to +1000 °C (K-type)
• Safety rating: CAT III 1000 V, CAT IV 600 V
• Protection: IP65
• Power: 1 x 9 V block battery
• Dimensions (W x H x D): 89 x 189 x 53 mm
• Weight: 420 g

Our verdict

A rugged, calibrated multimeter that meets the highest safety standards for industrial and field use. Its IP65 rating and True RMS capability make it a dependable tool for professionals who refuse to compromise on accuracy or durability.
