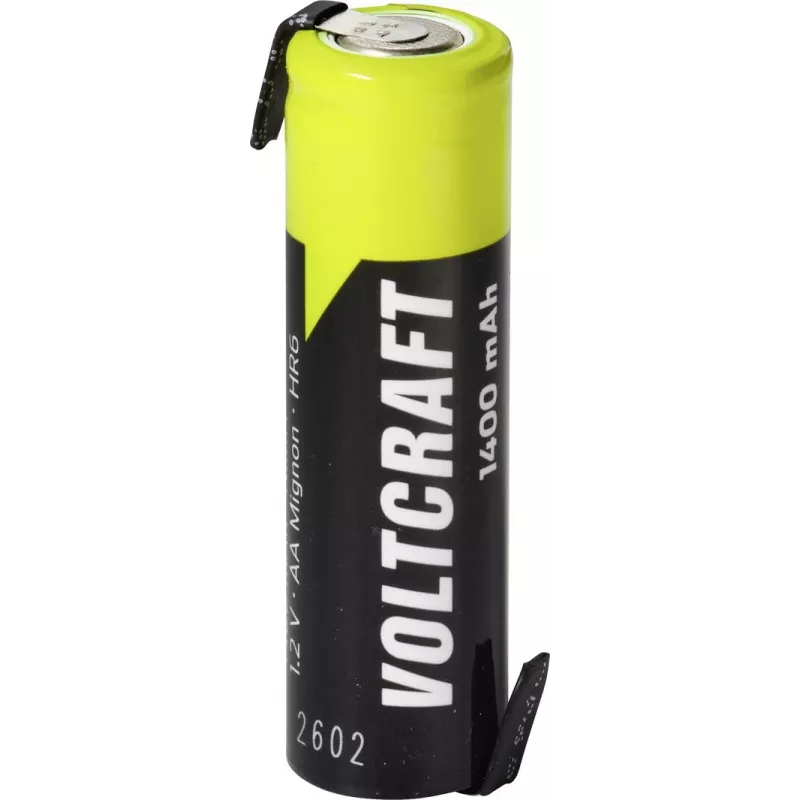

VOLTCRAFT Mignon AA-accu NiMH 1,2 V 1400 mAh High-Current met Z-soldeerlip, Ready to Use (1 st.) VC-17666040

For custom battery packs and high-drain industrial electronics, the VOLTCRAFT Mignon AA NiMH cell with Z-solder tag stands apart from standard consumer rechargeables. Its welded solder tabs allow direct, vibration-resistant connections without spring contacts, while the high-current design sustains heavy loads that would sag ordinary cells. Pre-charged and ready to use, it arrives with a stable 1.2 V nominal voltage and 1400 mAh capacity, backed by low self-discharge chemistry that holds charge for months in storage.

Highlights

• Z-solder tag terminals for permanent soldering into battery packs
• High-current capable NiMH chemistry for demanding applications
• Pre-charged and ready to use straight from the pack
• Low self-discharge: retains up to 80% charge after 12 months
• Up to 1000 recharge cycles for long service life
• 1.68 Wh energy content per cell

In daily use

This cell is engineered for custom assemblies: cordless tools, medical devices, emergency lighting, RC models, and industrial sensors. The Z-solder tag eliminates the need for battery holders and ensures low-resistance, reliable connections under vibration. Because it is pre-charged, you can build a pack and use it immediately. The high-current capability means it delivers consistent voltage even under pulse loads, while the low self-discharge keeps it ready after weeks of inactivity. Typical dimensions are 14.5 mm diameter and 50.5 mm length excluding tabs, fitting standard AA compartments when tabs are trimmed or folded.

Full specifications

• Brand: VOLTCRAFT
• Model: VC-17666040
• MPN: VC-17666040
• EAN: 4064161498355
• Battery size: AA (Mignon)
• Chemistry: NiMH (Nickel-Metal Hydride)
• Nominal voltage: 1.2 V
• Capacity: 1400 mAh
• Energy content: 1.68 Wh
• Terminal type: Z-solder tag
• High-current capable: Yes
• Pre-charged (Ready to Use): Yes
• Low self-discharge: Yes
• Recharge cycles: up to 1000
• Diameter: 14.5 mm
• Length (excluding tabs): 50.5 mm
• Quantity per pack: 1 piece
• Recommended applications: custom battery packs, industrial electronics, DIY projects

Final note

When you need a dependable, solderable AA cell that won't quit under load, the VOLTCRAFT VC-17666040 delivers the performance and convenience that off-the-shelf batteries can't match.
