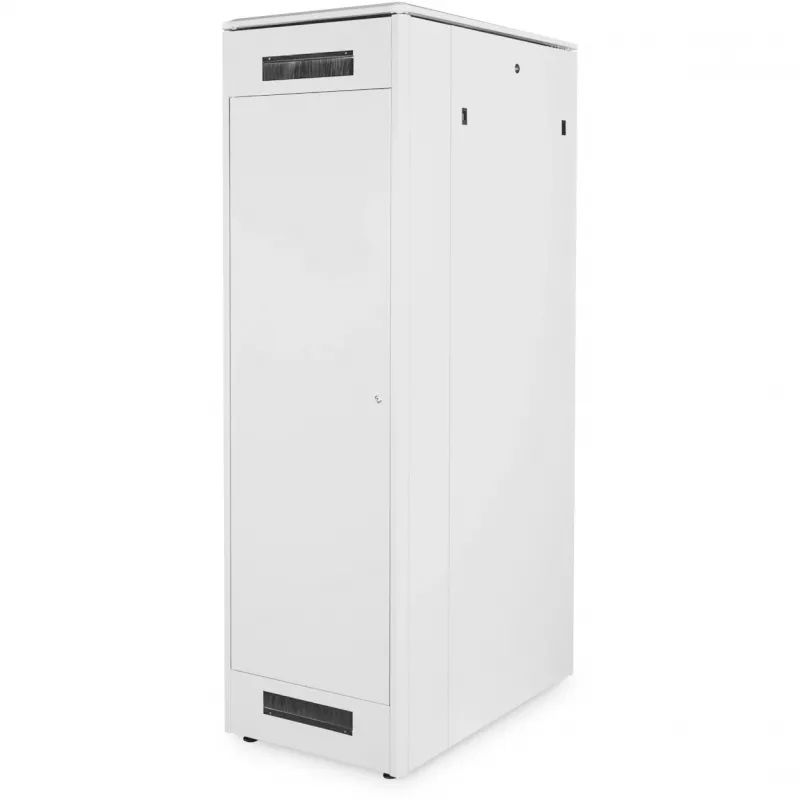

Vrijstaand rack Digitus DN-19 42U-6/10-1

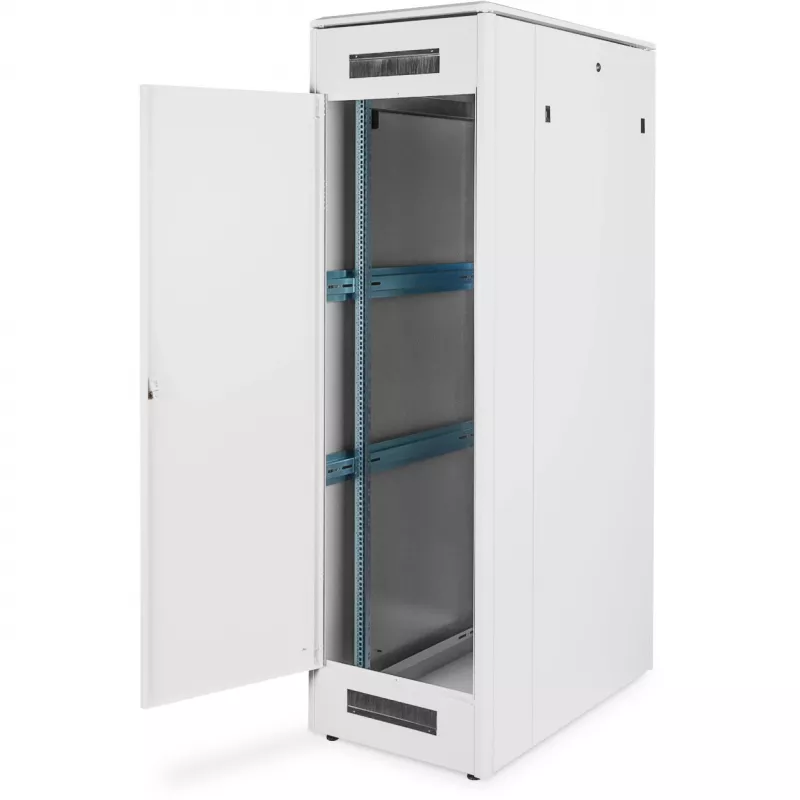

The DIGITUS Unique Series freestanding rack DN-19 42U-6/10-1 is a 42U network cabinet designed for high-demand IT infrastructure. Measuring 600 x 1000 mm, it supports a maximum load of 800 kg and provides IP20 protection against solid objects. Constructed from up to 1.5 mm sheet steel with electrostatic powder coating in grey (RAL 7035) or jet black (RAL 9005), the cabinet features two pairs of adjustable 483 mm (19") profile rails labeled with rack units readable in both directions, removable side panels and doors, and a collapsible design for easy transport and installation.

Advantages

The cabinet offers flexible cable management with roof and floor inlets equipped with brushes, a sliding cable entry with foam rubber sealing, and vertical cable channels (available on 800 mm width models). A special removable roof cover with ventilation slits and an integrated fan-module mounting design improves airflow. The front door lock with pivot lever accepts a profile half cylinder (adapter included), and the profile rails are galvanized for durability. Modular, lockable or removable side panels and switchable door hinges increase accessibility and maintenance convenience.

Suitable for

• Server rooms and data centers with standard 19" equipment
• Network and telecommunications cabinets for commercial or industrial sites
• Racks requiring organized cable routing and ventilation

Key specifications

• Model: Digitus DN-19 42U-6/10-1
• Dimensions (W x D): 600 x 1000 mm
• Mounting height: 42U (483 mm / 19")
• Maximum load capacity: 800 kg
• Material thickness: up to 1.5 mm sheet steel
• Protection rating: IP20
• Color: Grey (RAL 7035) — also available in Jet Black (RAL 9005)
• Front door lock: pivot lever, ready for profile half cylinder (adapter included)

How to use

Place the freestanding rack on a level surface and assemble the base and profile rails according to the included instructions. Adjust the depth of the 19" profile rails to suit your equipment and secure them to the depth bars. Route network and power cables through the roof or floor inlets with brushes or the sliding cable entry to maintain tidy cable management and sealing. Install equipment into the rack units, using the rack unit markings to ensure correct alignment. Fit the removable roof cover and, if required, mount a fan module in the designated roof area for improved ventilation.

Recommendations

Use the rack in indoor, dust-protected environments consistent with an IP20 rating. For optimal cooling, combine the removable roof cover and fan module with appropriate airflow planning. Secure the front door using the pivot lever lock and profile half cylinder for controlled access. For installations with heavy equipment, ensure even load distribution across mounting rails and verify floor load capacity.
