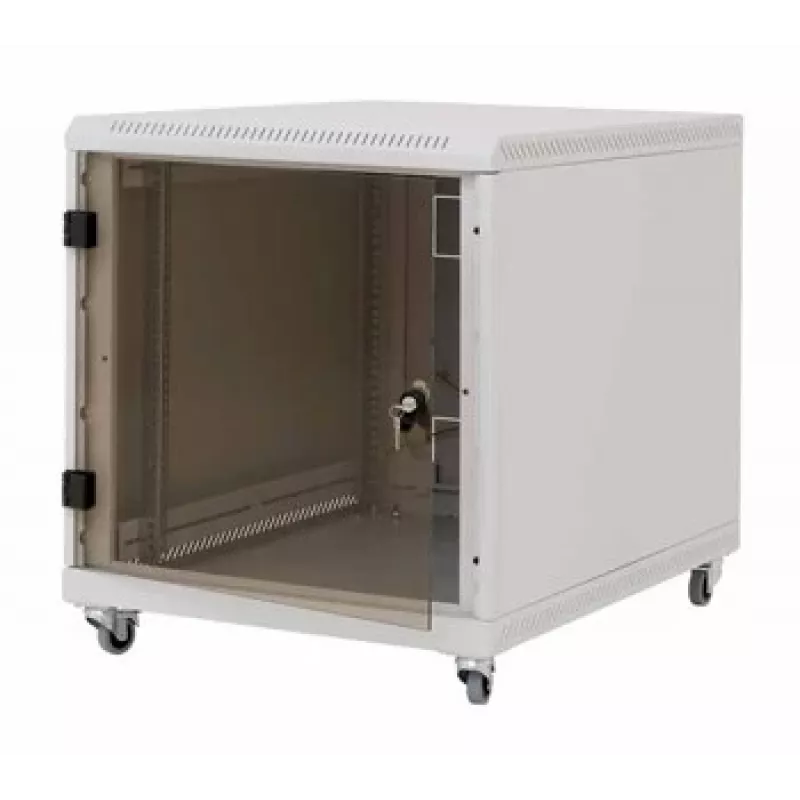

Vrijstaand rack Triton RCA-12-A69-CAX-A1 12U wit

The Triton RCA-12-A69-CAX-A1 12U freestanding rack is designed to organise small to medium office network installations while keeping a compact footprint. Built with a robust welded frame and finished in white, this rack accommodates standard 19" equipment on two pairs of adjustable vertical rails. The cabinet includes glass front door (alternative steel or perforated door options available), wide-opening hinges with removable doors, castors with two braked wheels for mobility and stability, and breakout-type blanking panels with a plastic frame and brush to protect cable openings from dust.

Advantages

The welded construction and quality workmanship deliver structural stability and a consistent appearance appropriate for office environments. Adjustable 19" vertical rails allow flexible mounting of servers, switches and patch panels. The almost 180° hinge opening and removable doors simplify equipment access and maintenance. Castors enable easy relocation while two braked wheels secure the cabinet in position. Breakout-type blanking panels at the bottom and rear provide dust protection around cable entry points.

Suitable for

• Small to medium-sized network closets and telecom cabinets
• Server, switch and patch panel mounting in office environments

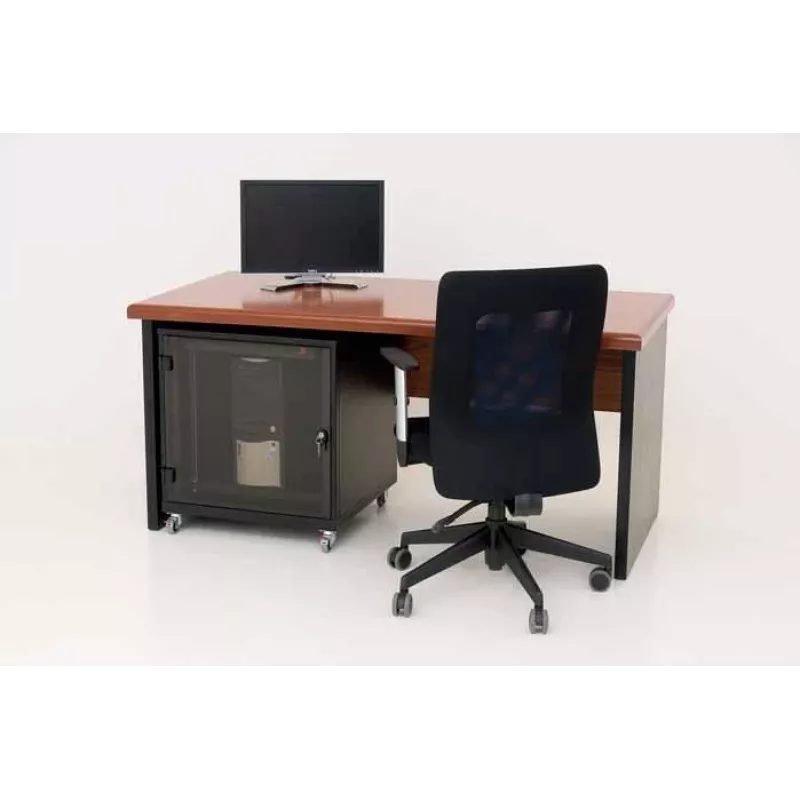

• Equipment consolidation under desks or in compact technical rooms
• Temporary or mobile installations requiring castored cabinets

Key specifications

• Rack capacity: 12U
• Mounting standard: 19" (imperial size)
• Weight: 43.4 kg
• Finish colour: White
• Construction: Robust welded frame
• Front door: Glass (standard); option for steel or perforated door

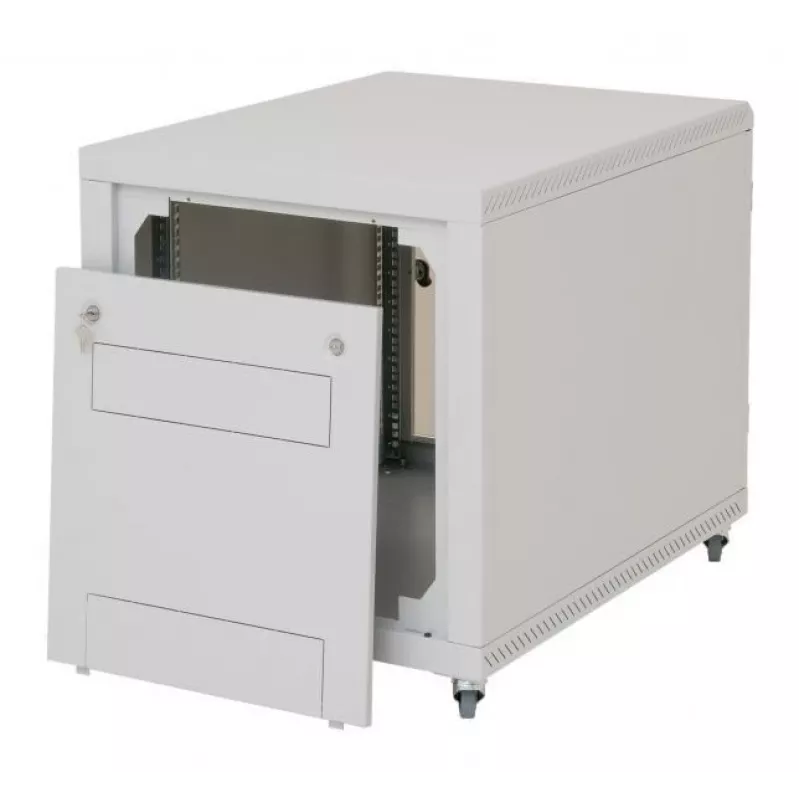

• Door hinge: Wide-opening hinge up to approximately 180°, doors removable

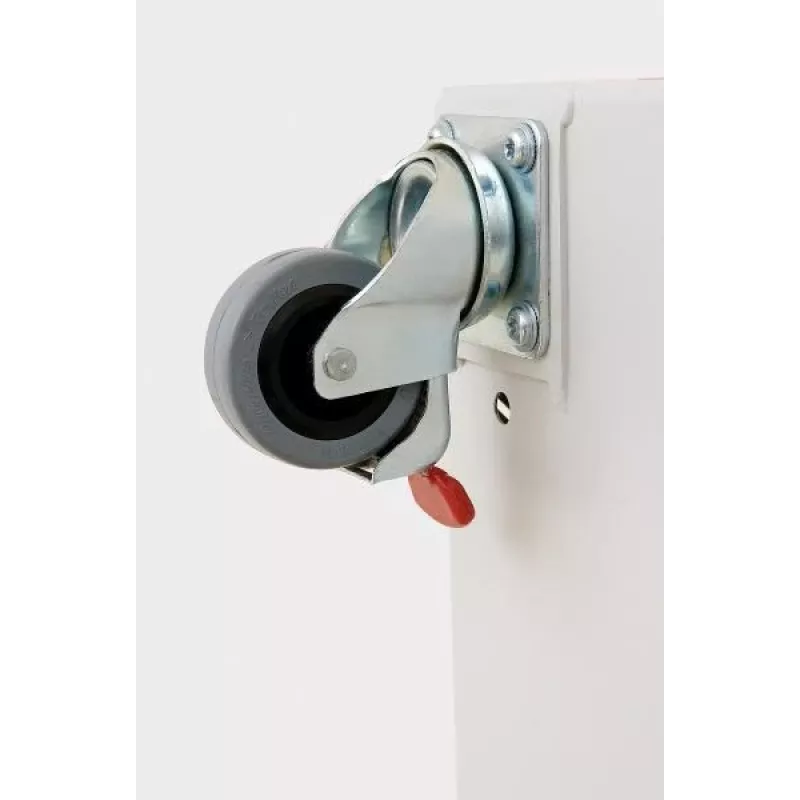

• Mobility: Castors included, two castors with brake

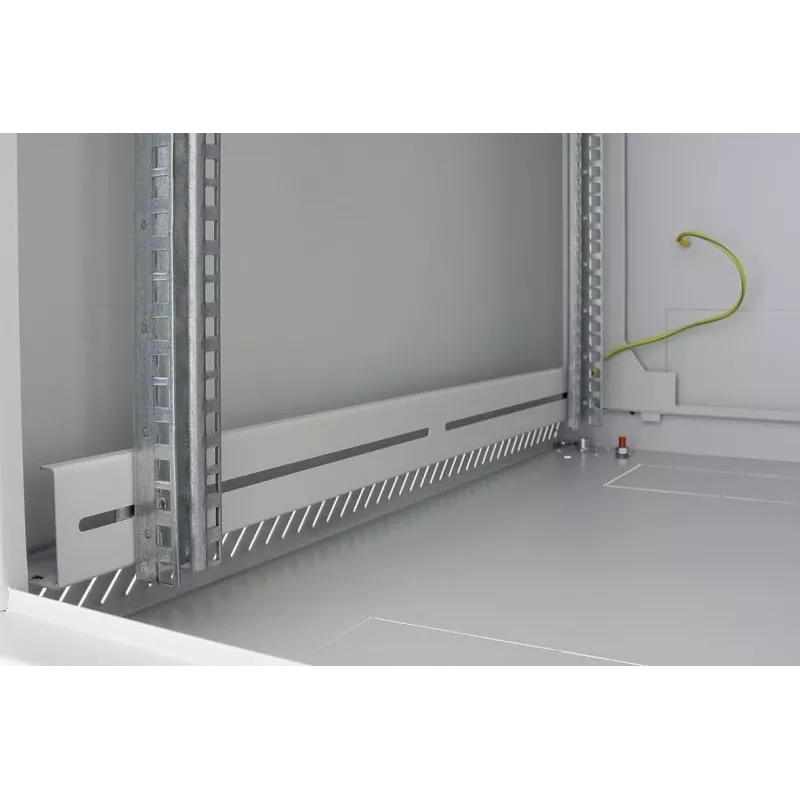

• Rails: Two pairs of adjustable vertical 19" rails (middle rails included for deeper models)
• Cable management: Breakout-type blanking panels with plastic frame and brush for bottom and rear cable openings

How to use

Position the freestanding rack where stable placement and access are available, then engage the two castor brakes to prevent movement. Install equipment on the 19" vertical rails, adjusting the rail positions as needed to accommodate device depths and mounting points. Use the removable front door and wide hinge opening to gain access during installation and maintenance. Route cables through the bottom and rear openings and fit the plastic frame and brush-equipped blanking panels to minimise dust ingress.

Recommendations

For safe operation, verify floor load capacity and ensure the cabinet is secured when fully loaded. Leave sufficient clearance at the rear and front for ventilation and service access. When relocating the rack, lock or remove delicate equipment and use the castor brakes after positioning. Select a perforated or steel door variant if enhanced airflow or increased physical protection is required.
