Vrijstaande rack Extralink EX.11359 27U zwart

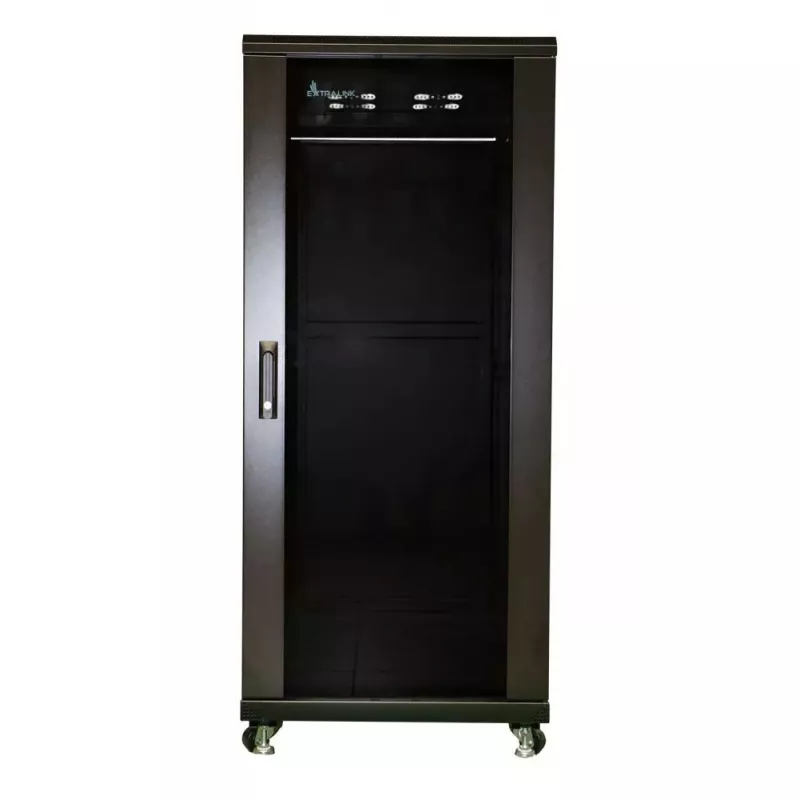

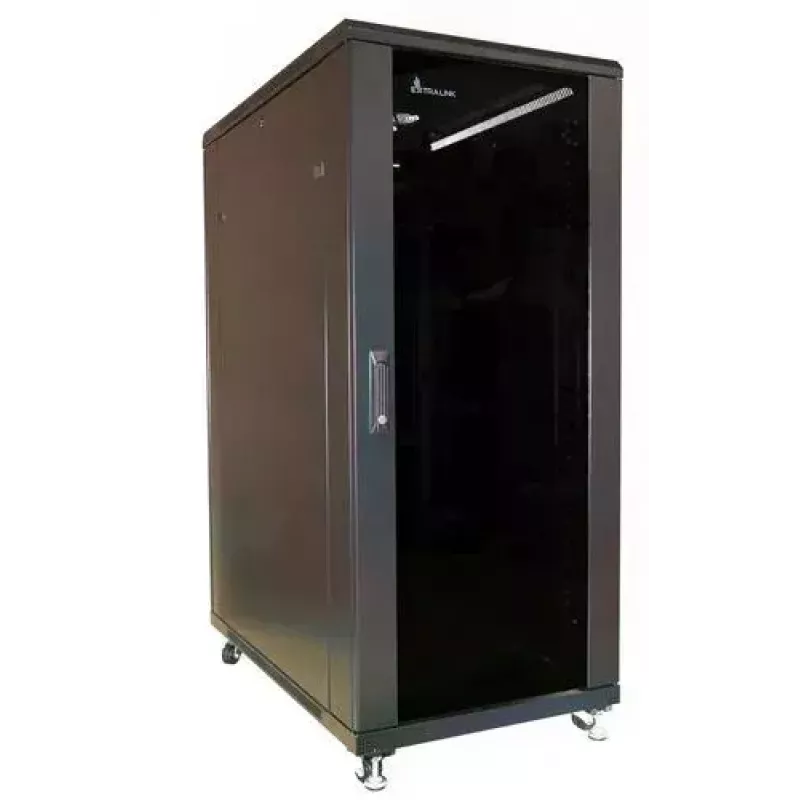

The Extralink 27U 600x1000 standing rack cabinet (Extralink EX.11359) is a 27U freestanding rack designed for offices, network server rooms and CCTV control rooms. Its body is made from cold-rolled steel and the front door is tempered glass with bidirectional opening. The cabinet total height is 1320 mm and it provides a stable, secure housing for networking and server equipment.

Advantages

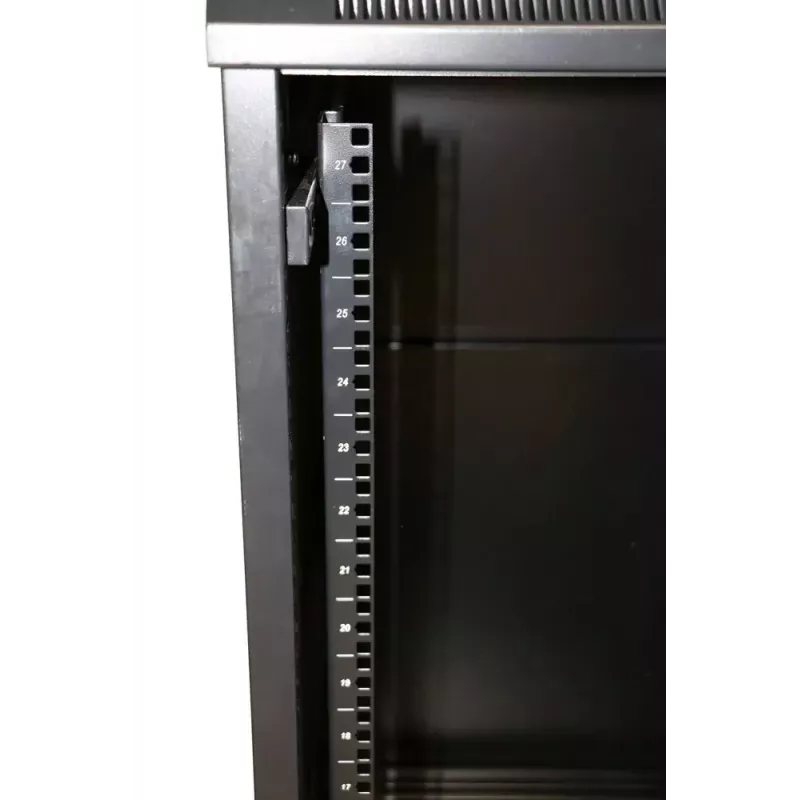

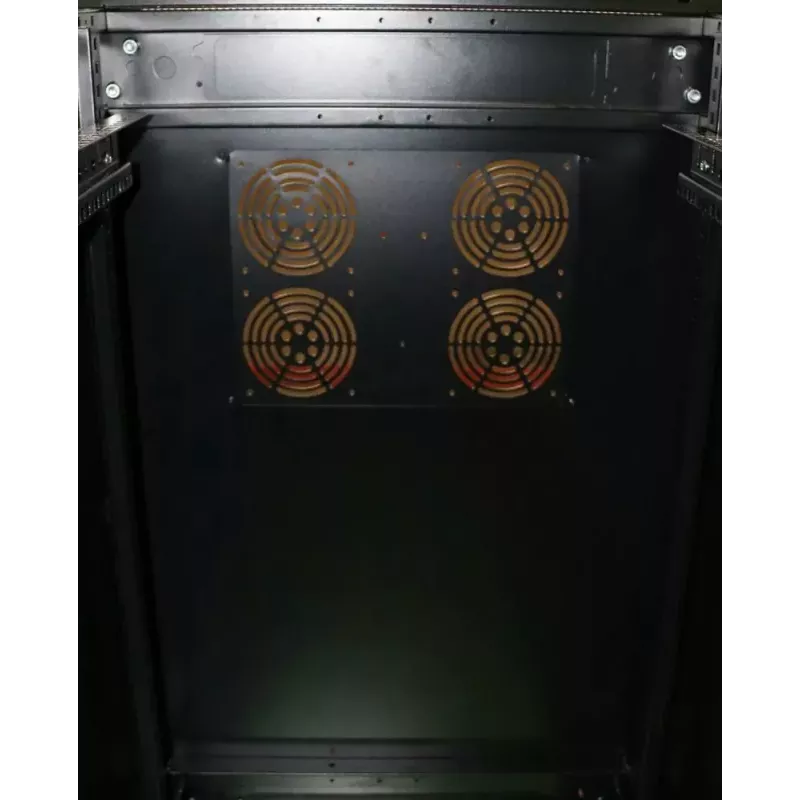

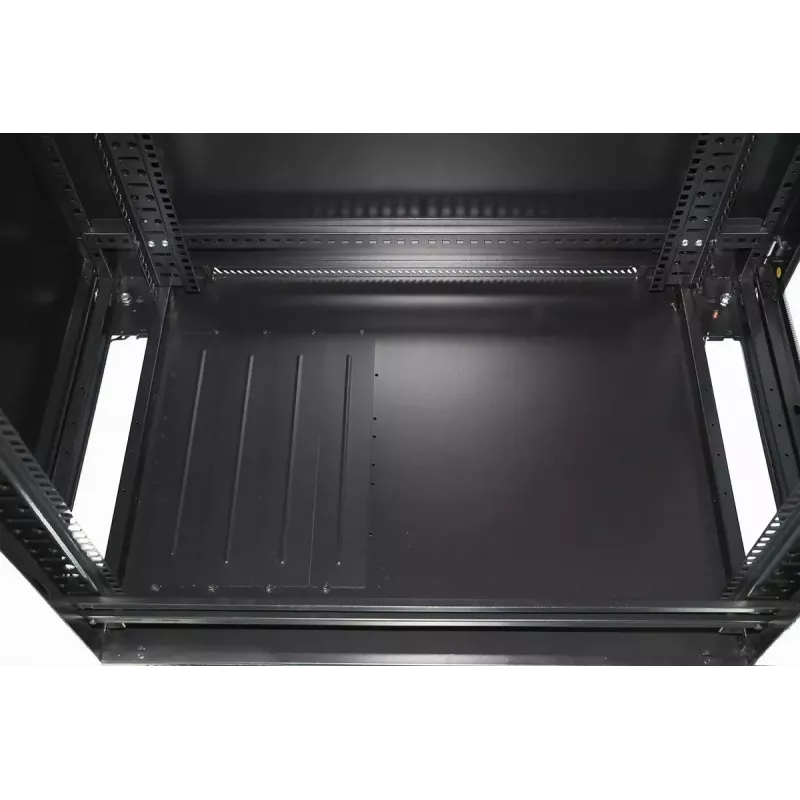

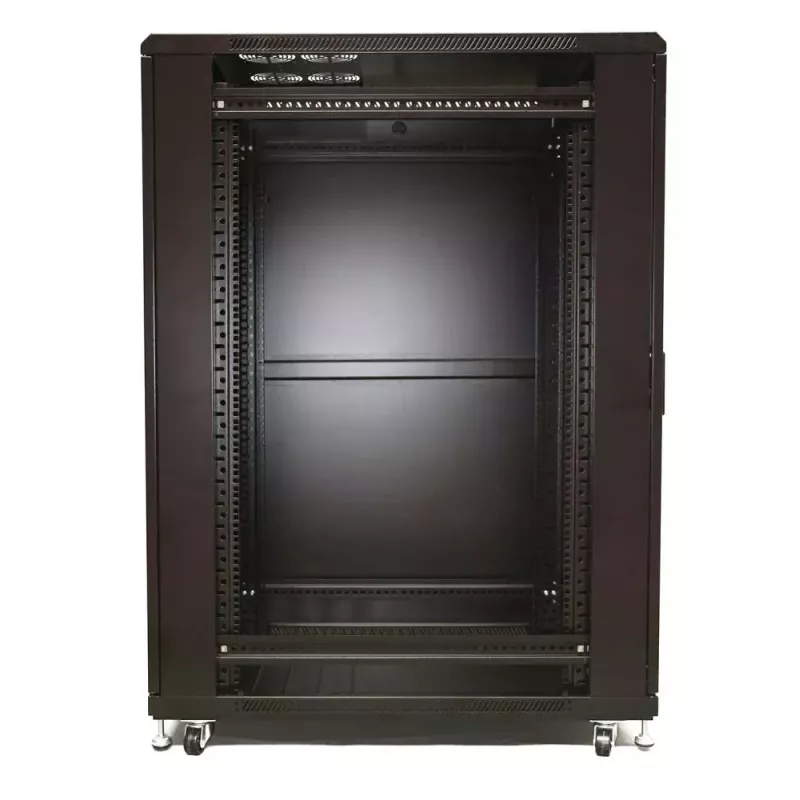

The cabinet features clearly marked vertical rails up to 27U for straightforward device placement, a robust steel construction with a black finish, and a tempered glass front door for visibility and access. Side panels are removable using snap fasteners for easier maintenance and installation. The lower panel includes four cable outlets to simplify cable routing and reduce strain. The ceiling has cutouts to mount up to four fans and additional conduits for cable exit. Locks and keys are included and adjustable feet help level the rack.

Suitable for

• Small and medium office network racks
• Server rooms and equipment cabinets
• CCTV control rooms and surveillance system equipment
• Structured cabling and telecom installations

Key specifications

• Rack capacity: 27U
• Height: 1320 mm (total)
• Width: 600 mm
• Depth: 1000 mm
• Colour: Black
• Front door: Tempered glass, reversible opening
• Body material: Cold-rolled steel
• Included: locks and keys, adjustable feet, rack rails

How to use

Place the freestanding rack on a level surface and adjust the feet to ensure stability. Open the front tempered glass door (left or right) and install equipment on the 27U marked vertical rails using standard 19" mounting. Route power and network cables through the lower panel outlets and ceiling conduits as required. Remove side panels via snap fasteners when accessing internal components or performing maintenance. If needed, install fans in the ceiling cutouts to improve airflow.

Recommendations

For safe operation, distribute equipment weight evenly across the 27U space and verify load limits. Use the provided locks to secure access, maintain clear cable paths through the designated outlets to avoid strain, and consider active cooling if racked equipment generates significant heat.
