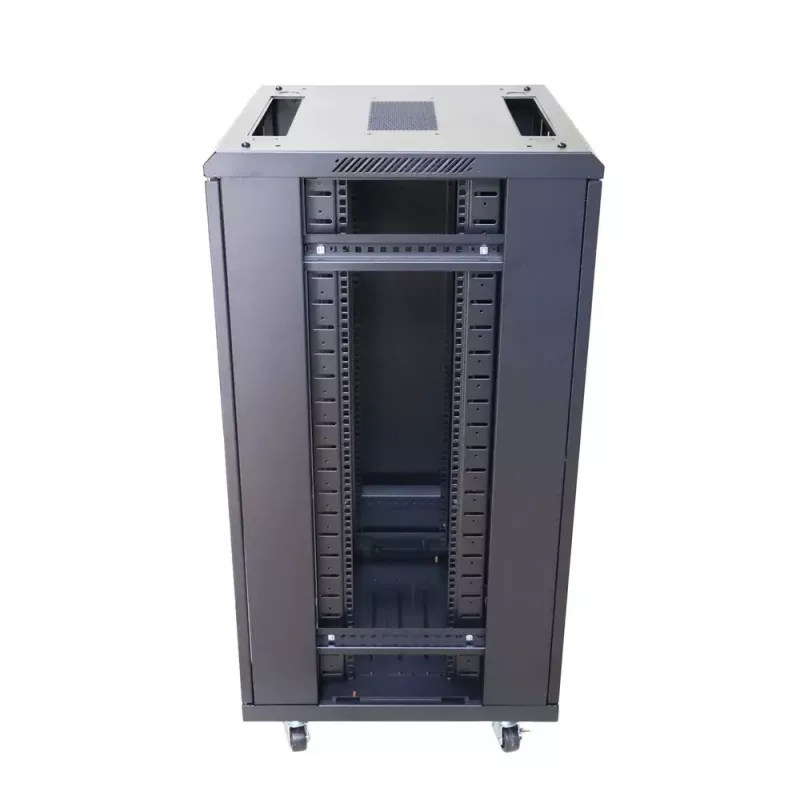

Vrijstaande rack Extralink EX.14381 22U zwart

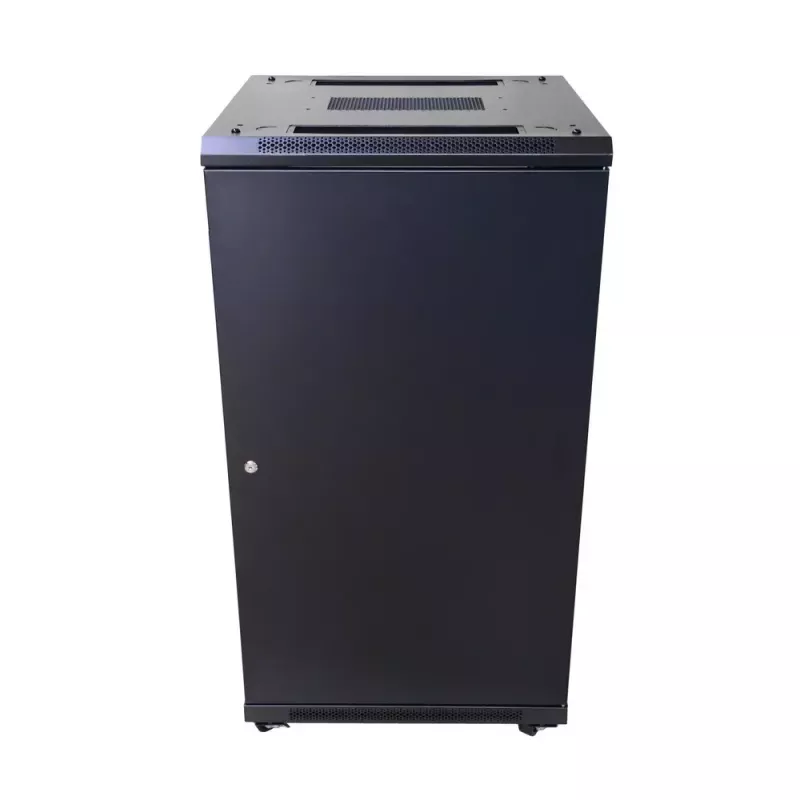

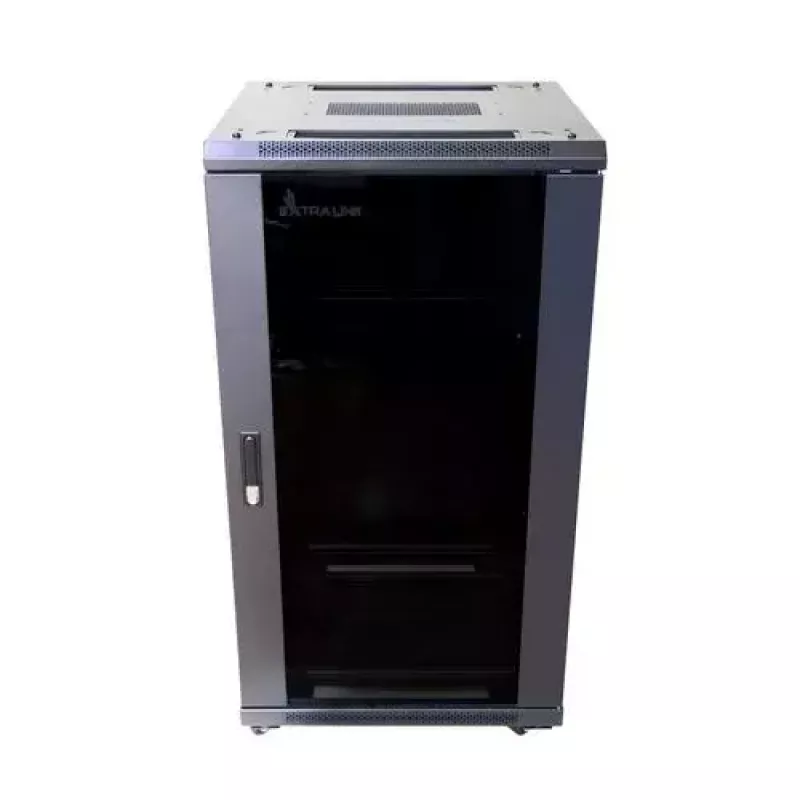

The Extralink 22U 600 x 600 standing rack cabinet is a freestanding network cabinet designed for offices, server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can be hinged left or right, the cabinet provides organized housing for rack-mount equipment with a total height of 1100 mm and a 22U mounting capacity.

Advantages

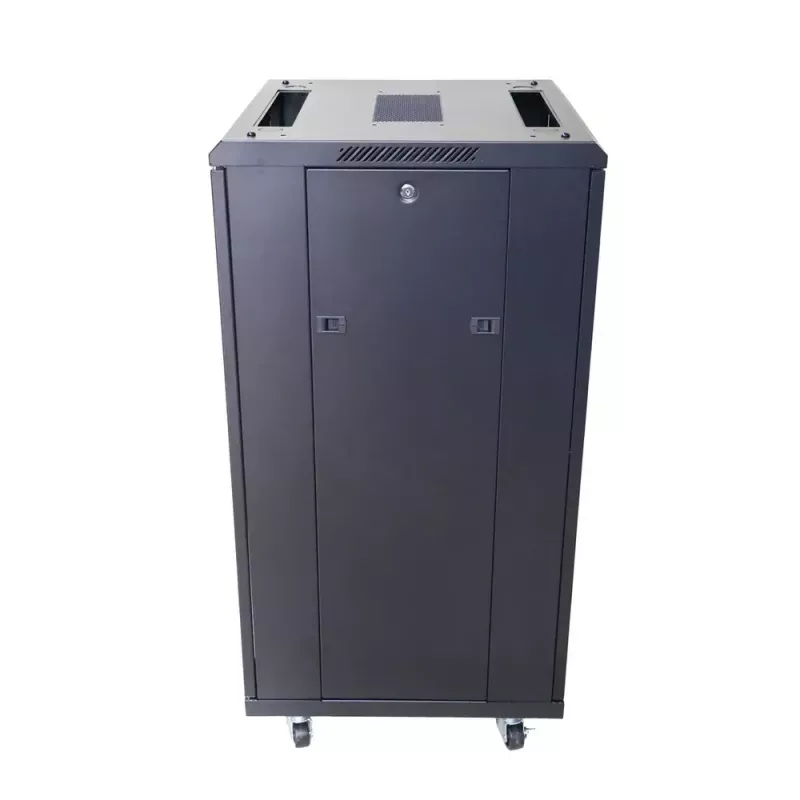

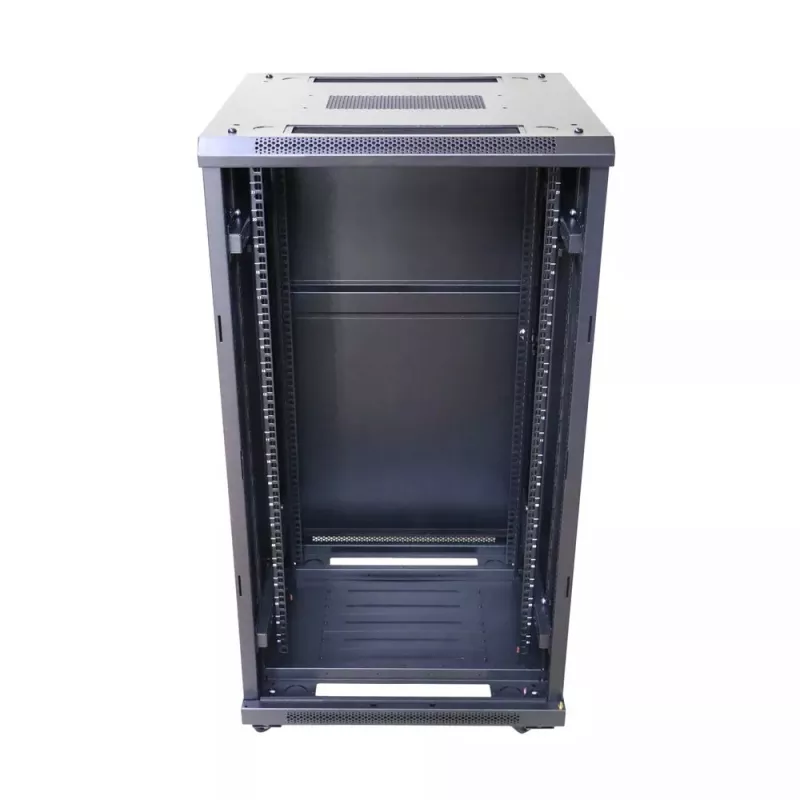

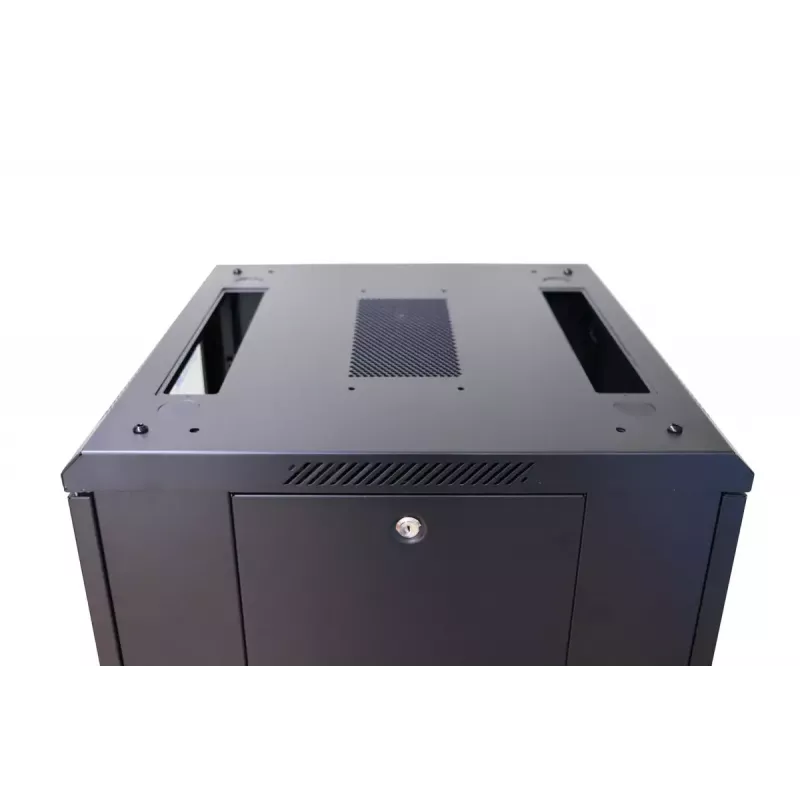

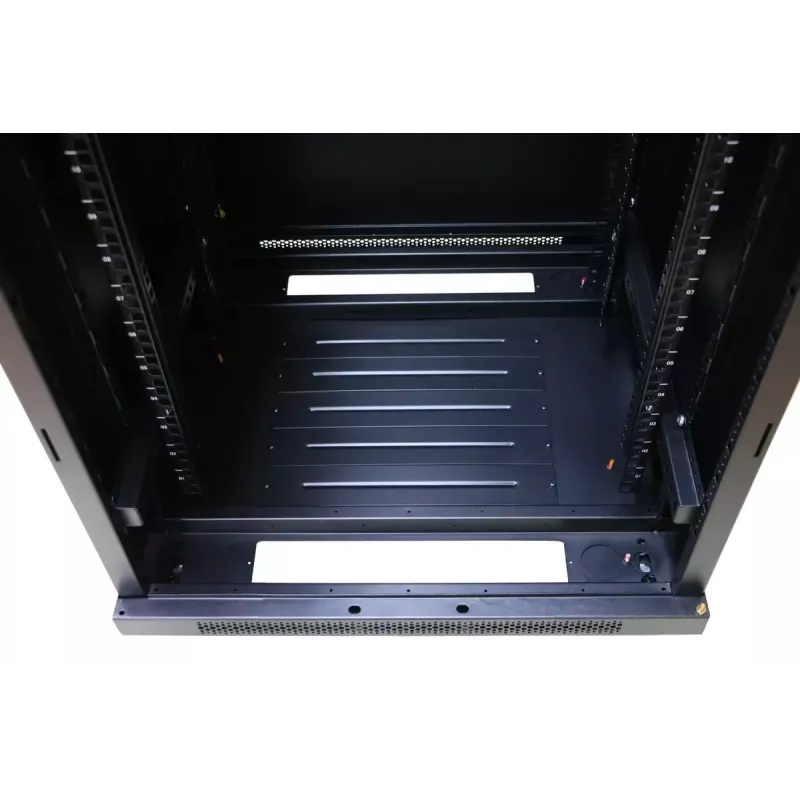

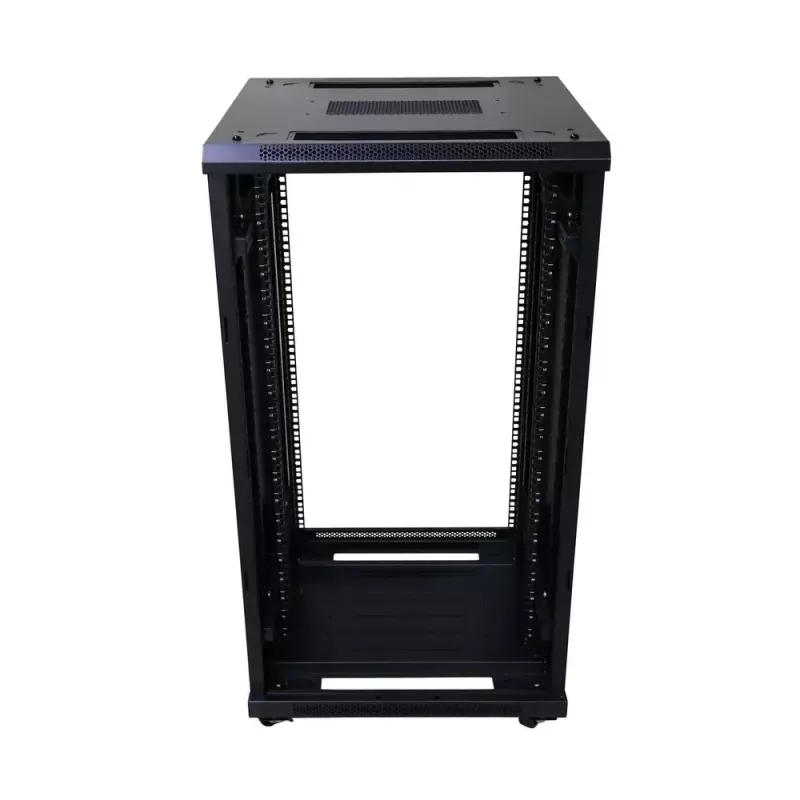

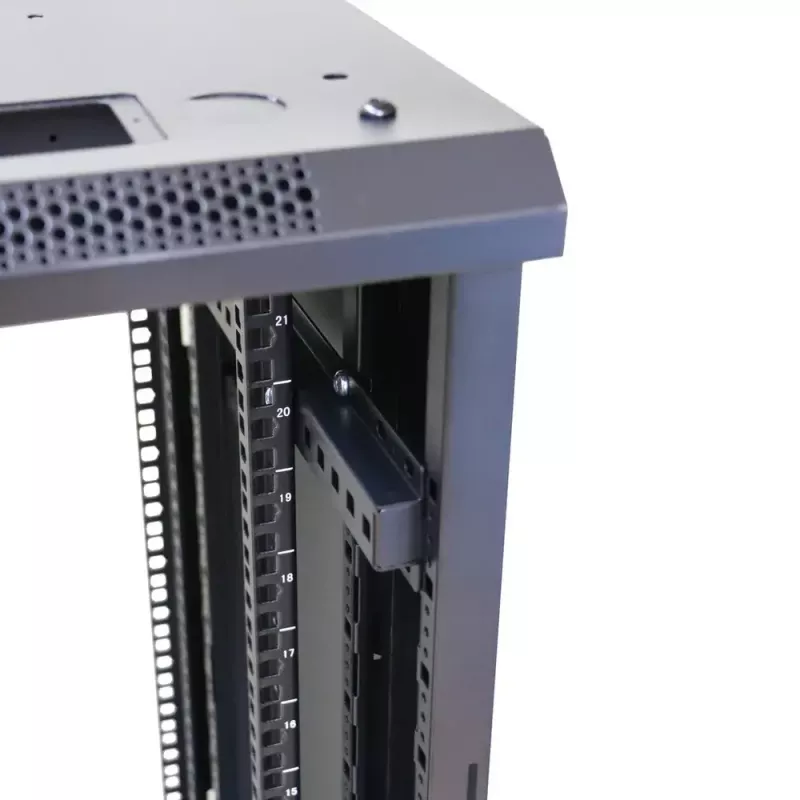

The cabinet features clearly marked vertical rails up to 22U for accurate device placement, removable side panels secured with snap fasteners for easier access, and a front door with a key lock for security. Its lower panel includes five cable entry grommets to simplify cable routing and reduce risk of pinching or tangling, while the ceiling provides a ventilation opening and two additional cable passages. Adjustable feet and 600 x 600 mm footprint make it suitable for compact installations.

Suitable for

• Small to medium office network equipment
• Server room rack installations with up to 22U of equipment
• CCTV and surveillance control room hardware

Key specifications

• Brand: Extralink
• Model / MPN: EX.14381
• Rack capacity: 22U
• Height: 1100 mm (total)
• Width: 600 mm
• Depth: 600 mm
• Maximum supported equipment depth: 19" standard rack
• Colour: Black
• Front door: Tempered glass, reversible hinge
• Cable entries: 5 lower grommets, 2 ceiling passages

How to use

Place the cabinet on a level surface and adjust the feet to ensure stability. Unlock and open the front door (can be set to open left or right) to access the 22U vertical rails. Install rack-mount equipment on the marked rails using appropriate screws and cage nuts. Route power and network cables through the lower grommets or ceiling passages to keep cabling organized and prevent strain on connectors. Reattach side panels as needed for maintenance or installation.

Recommendations

Ensure total load and individual device depths are within the cabinet’s rated capacity and the 600 x 600 mm footprint. Provide adequate ventilation or active cooling if installed equipment generates significant heat. Lock the front door to restrict access when the cabinet contains critical infrastructure.
