WAGO 2001-1201 doorvoerklem, 1-ader, 800V, 24A, 2,5mm², grijs, Push-in CAGE CLAMP®

The WAGO 2001-1201 is a compact 1-conductor through terminal block from the 2001 Series, designed for reliable and maintenance-free wiring in industrial control cabinets. Featuring the innovative Push-in CAGE CLAMP® connection technology, it enables fast and tool-free installation of solid conductors, significantly reducing wiring time. With a rated voltage of 800 V and a rated current of 24 A, this terminal block is suitable for a wide range of applications up to 2.5 mm² (12 AWG). The gray polyamide (PA66) housing offers excellent insulation and a UL94 V-0 flammability rating for high safety standards.

Advantages

Push-in termination for solid conductors saves up to 50% wiring time compared to traditional screw clamps. The compact design (4.2 mm width) allows high-density wiring on DIN-rail TS 35. Integrated test ports enable easy troubleshooting without disconnecting wires. Vibration-proof and corrosion-resistant connection ensures long-term reliability in demanding environments.

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Machine building and factory automation
• Power distribution and signal wiring

Key specifications

• Connection technology: Push-in CAGE CLAMP®
• Number of conductors: 1
• Rated voltage (III/2): 800 V
• Rated surge voltage: 8 kV
• Rated current: 24 A
• Conductor cross-section: 0.2 – 2.5 mm² (24 – 12 AWG) solid/stranded/fine-stranded
• Stripping length: 9 – 10 mm
• Mounting: DIN-rail TS 35
• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability rating: UL94 V-0
• Pollution degree: 2
• Operating temperature: -35 to +85 °C

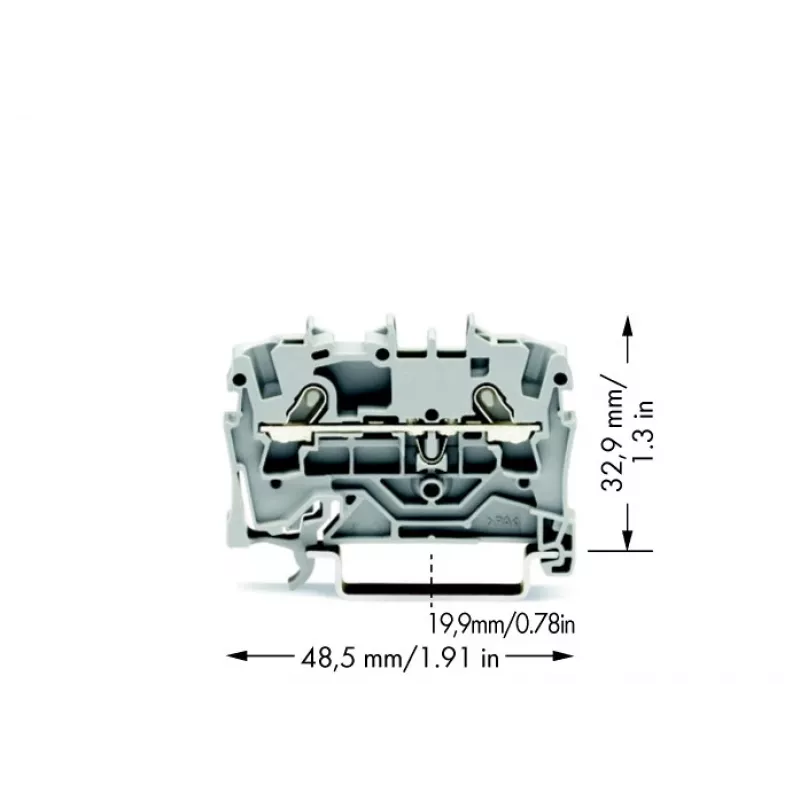

• Dimensions (WxHxD): 4.2 x 48.5 x 32.9 mm

Recommendations

For optimal performance, use with WAGO ferrule sets and marking strips. Always ensure proper stripping length (9-10 mm) for reliable push-in termination. Suitable for use with solid or ferruled stranded conductors.
