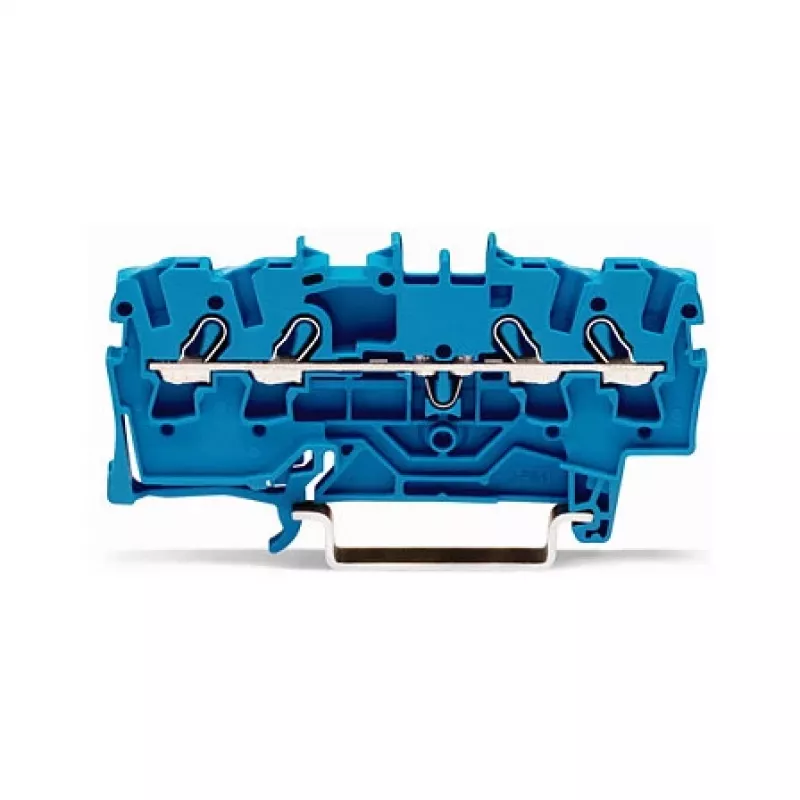

WAGO 2002-1404 4-aderige doorgangsklem, 2,5 mm²

The WAGO 2002-1404 is a 4-conductor through terminal block suitable for Ex e II and Ex i applications. It has a nominal voltage of 800 V and a current rating of 32 A.

Key features

• 4-conductor through terminal block
• Suitable for Ex e II applications
• Suitable for Ex i applications
• Blue product colour

Specifications

• Brand: WAGO
• MPN: 2002-1404

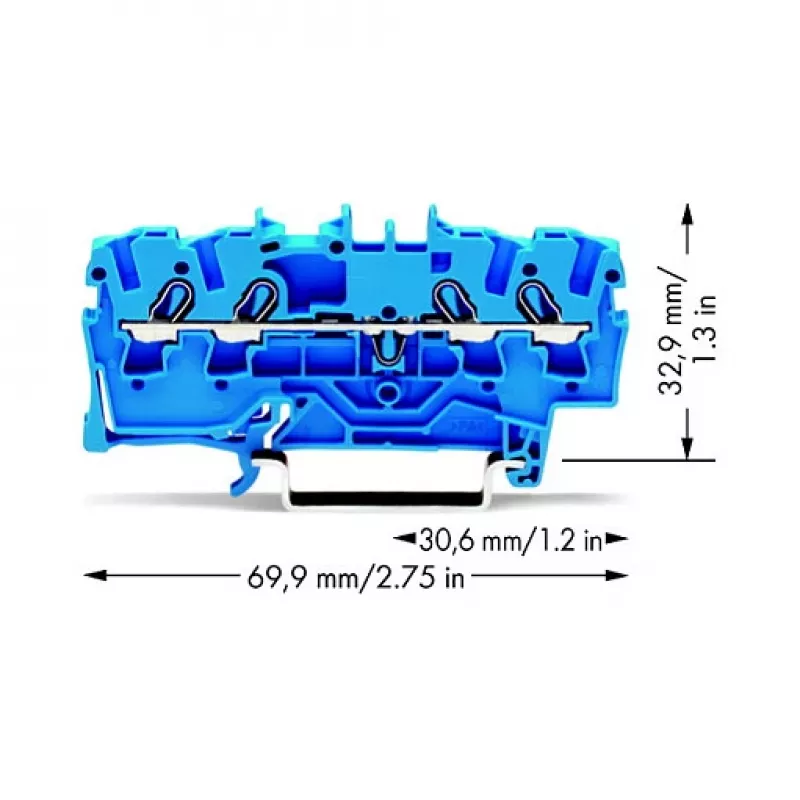

• Width: 5.2 mm
• Depth: 69.9 mm
• Height: 32.9 mm
• Nominal voltage: 800 V
• Current: 32 A
• Wire size (AWG): 22 - 12
• Minimum wire cross-section: 0.25 mm²
• Maximum wire cross-section: 4 mm²
