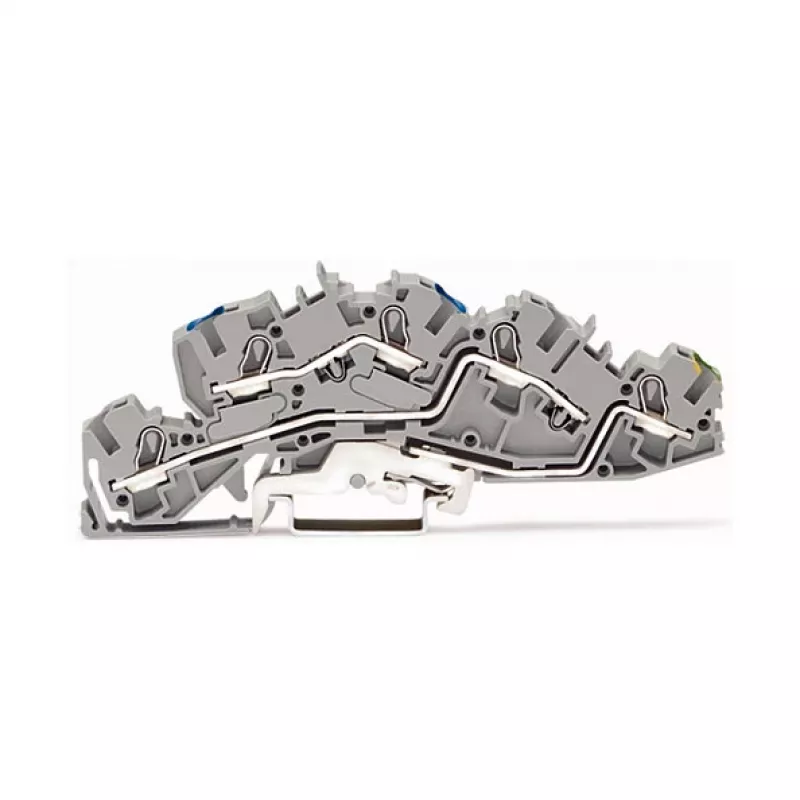

WAGO 2005-7646 doorvoerklem, 3-ader, 400V, 24A, 2,5mm², grijs

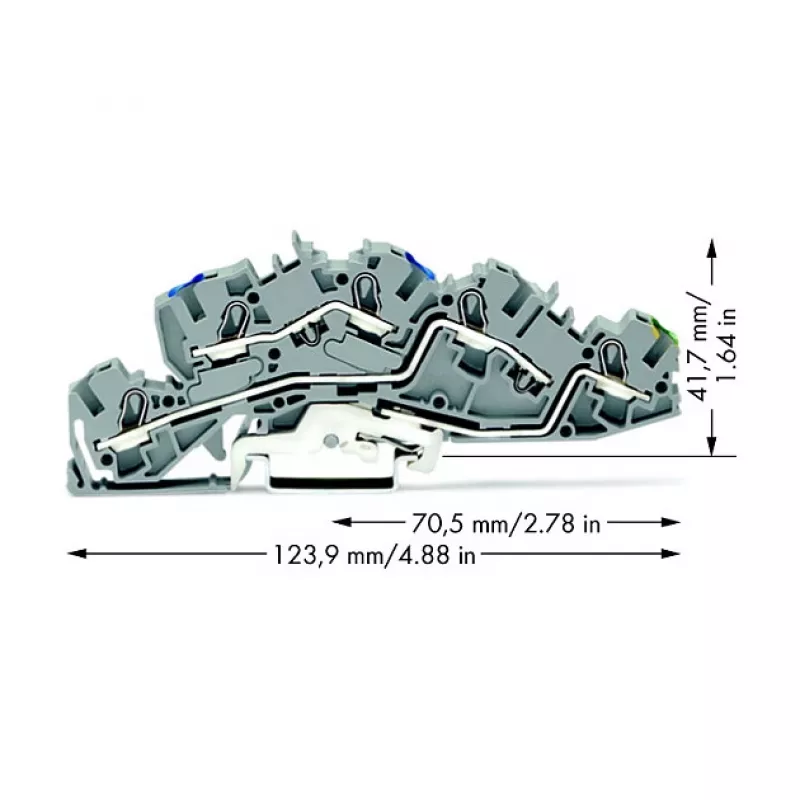

The WAGO 2005-7646 is a high-quality through terminal block designed for reliable and maintenance-free electrical connections. With a compact design measuring 6.2 mm width, 124 mm height, and 41.7 mm depth, it is ideal for use in control cabinets and junction boxes. This terminal block features WAGO's innovative CAGE CLAMP® connection technology for fast and secure wiring.

Advantages

Push-in actuation allows for tool-free installation, saving time and effort. The CAGE CLAMP® connection ensures a gas-tight, vibration-resistant contact that reduces maintenance. Rated for 400 V and 24 A, it handles demanding applications with ease. The polyamide (PA 66) housing provides excellent insulation and durability.

Suitable for

• Industrial control systems
• Building automation
• Electrical distribution panels
• Machine wiring

Key specifications

• Terminal block type: Through terminal block
• Number of conductors: 3
• Connection technology: CAGE CLAMP®
• Actuation type: Push-in
• Rated voltage (EN 60947-7-1): 400 V
• Rated impulse voltage: 6 kV
• Rated current (EN 60947-7-1): 24 A
• Nominal cross-section: 2.5 mm²
• Solid conductor size: 0.25 - 4 mm² (22 - 12 AWG)
• Stranded conductor size: 0.25 - 4 mm² (22 - 12 AWG)
• Fine-stranded conductor size: 0.25 - 4 mm² (22 - 12 AWG)
• Strip length: 9 - 11 mm (0.35 - 0.43 inch)
• Mounting type: DIN-rail 35
• Color: Gray
• Insulation material: Polyamide (PA 66)
• Pollution degree: 2
• Overvoltage category: II
• Operating temperature: -35 to +85 °C

Recommendations

For optimal performance, use with WAGO end brackets and marking strips. Ensure proper strip length for secure connections. Suitable for use in environments with pollution degree 2.
