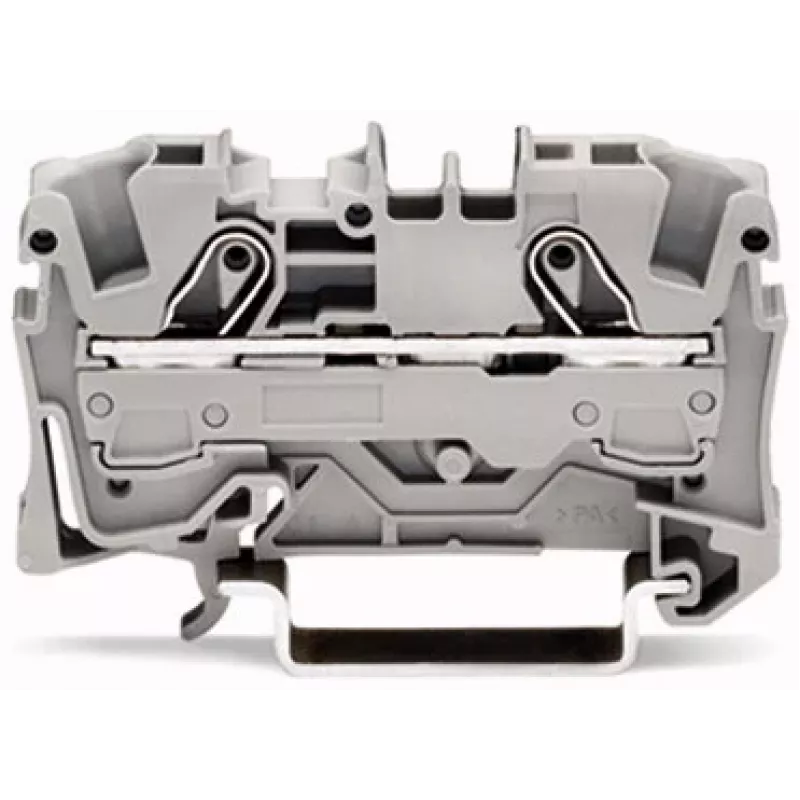

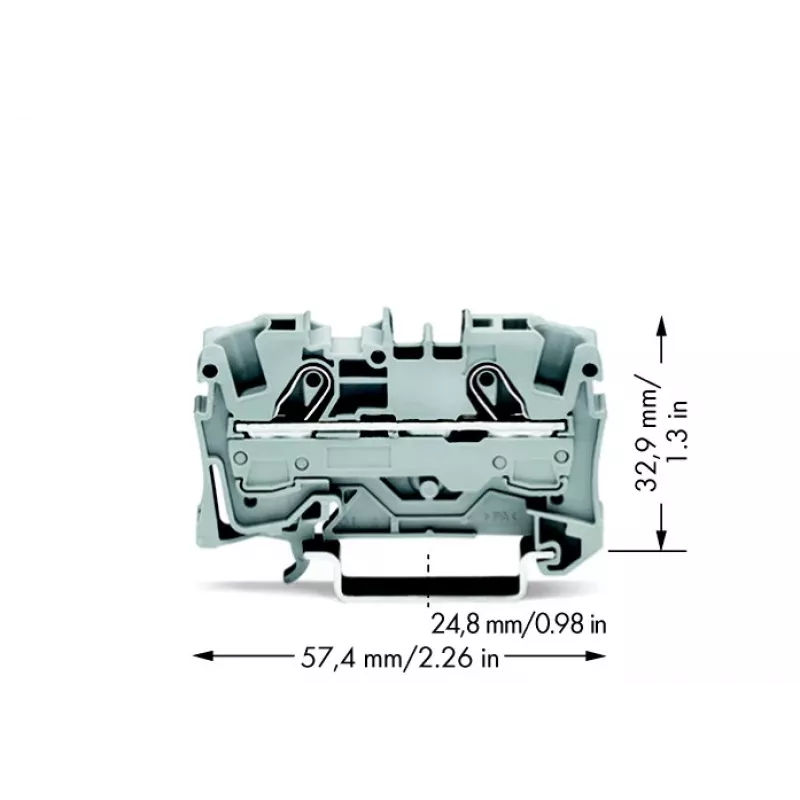

WAGO 2006-1201 doorvoerklem, 2-aderig, 6 mm², 800 V, grijs, DIN-rail 35

The WAGO 2006-1201 is a high-quality through terminal block designed for reliable and maintenance-free electrical connections. Featuring the innovative Push-in CAGE CLAMP® connection technology, it ensures fast, tool-free wiring for solid and fine-stranded conductors. This terminal block is ideal for industrial control cabinets, building automation, and power distribution applications where safety and efficiency are paramount.

Advantages

Push-in CAGE CLAMP® technology allows for direct insertion of solid conductors without tools, saving installation time. The compact 7.5 mm width saves space on the DIN-rail. Rated for 800 V and 41 A, it handles high power demands. The gray polyamide housing provides excellent insulation and meets UL 94 V-0 flammability rating for fire safety.

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Power distribution and junction boxes
• Machine wiring and electrical installations

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Conductors: 2
• Nominal Cross-Section: 6 mm² (AWG 10)
• Solid Conductor Size: 0.5 … 10 mm² (20 … 8 AWG)
• Fine-Stranded Conductor Size: 0.5 … 6 mm² (20 … 10 AWG)
• Nominal Voltage (EN): 800 V
• Rated Current (EN): 41 A
• Rated Surge Voltage: 8 kV
• Insulating Material: Polyamide (PA)
• Color: Gray
• Mounting Type: DIN-rail 35
• Operating Temperature: -35 … +105 °C
• Flammability Rating: UL 94 V-0
• Terminal Block Type: Through Terminal Block
• Number of Potentials: 1
• Pollution Degree: 3
• Overvoltage Category: III
• Approvals: VDE, UL, CSA, EAC, KEMA/KEUR

Recommendations

For optimal performance, use with WAGO marking strips and end brackets. Ensure proper conductor stripping length as per manufacturer guidelines. This terminal block is suitable for use in environments with pollution degree 3.
