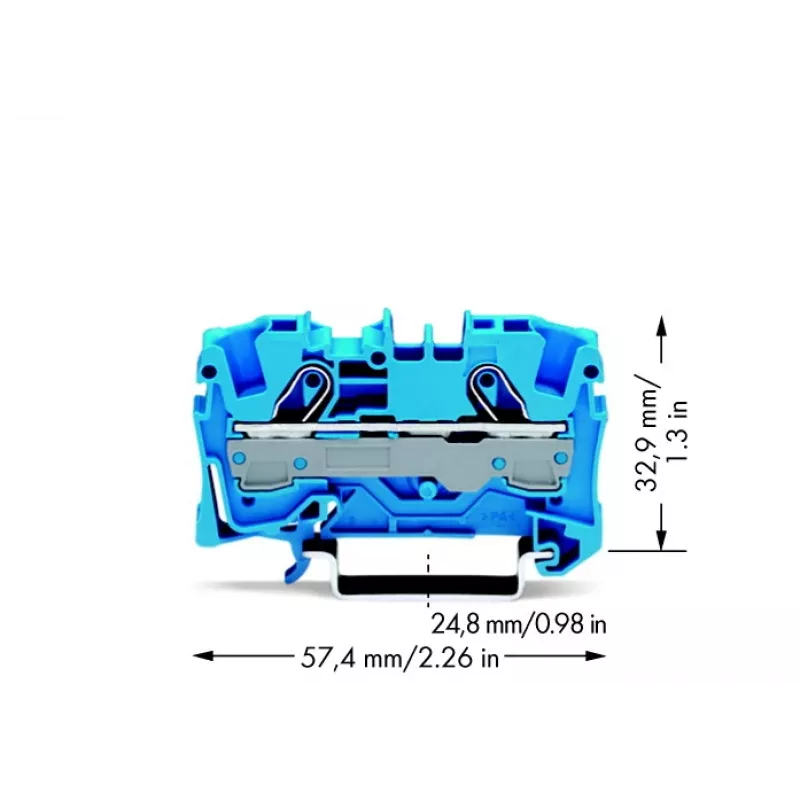

WAGO 2006-1204 doorvoerklem, Push-in CAGE CLAMP, 800 V, 41 A, 6 mm², grijs, DIN-rail 35

The WAGO 2006-1204 is a high-quality through terminal block designed for reliable and maintenance-free wiring in industrial and building installations. Featuring the innovative Push-in CAGE CLAMP® connection technology, it allows for fast and tool-free connection of solid and stranded conductors. This terminal block is rated for 800 V and 41 A, making it suitable for a wide range of applications.

Advantages

Push-in CAGE CLAMP® technology enables direct insertion of solid conductors without tools, saving installation time. The compact design with front-entry wiring simplifies wiring in tight spaces. The terminal block is explosion-protected (Ex e II) and suitable for use in hazardous environments. Its gray polyamide housing provides high mechanical strength and electrical insulation.

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution
• Machine wiring
• Ex e II approved applications

Key specifications

• Product Type: Through Terminal Block
• Connection Technology: Push-in CAGE CLAMP®
• Number of Potentials: 1
• Number of Connection Points: 2
• Number of Levels: 1
• Nominal Voltage (EN 60947-7-1): 800 V
• Rated Surge Voltage: 8 kV
• Nominal Current (EN 60947-7-1): 41 A (for 6 mm² conductor)
• Conductor Cross-section (Solid): 0.5 - 10 mm² (20 - 8 AWG)
• Conductor Cross-section (Stranded): 0.5 - 10 mm² (20 - 8 AWG)
• Conductor Cross-section (Fine-stranded): 0.5 - 6 mm² (20 - 10 AWG)
• Stripped Length: 15 - 17 mm (0.59 - 0.67 inch)
• Mounting Type: DIN-rail 35
• Color: Gray
• Insulating Material: Polyamide (PA)
• Pollution Degree: 3
• Operating Temperature: -35 … +85 °C
• Fire Load: 0.15 MJ
• Wiring Type: Front-entry wiring
• Explosion Protection (Ex e II): Yes

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper conductor stripping length (15-17 mm) for reliable connection. This terminal block is part of the WAGO 2006 series, offering a complete range of through and ground terminal blocks for various applications.
