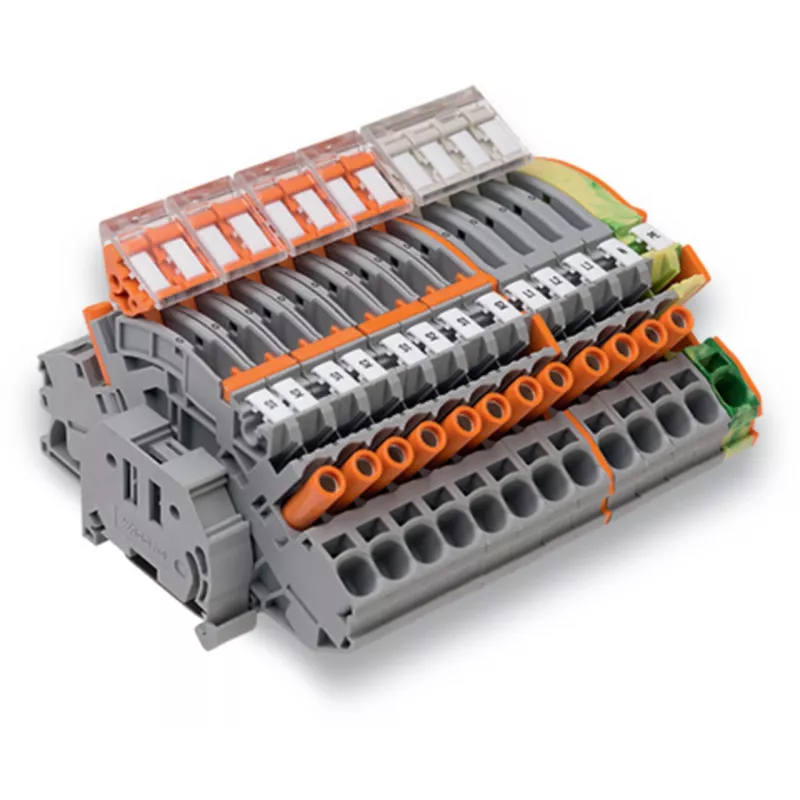

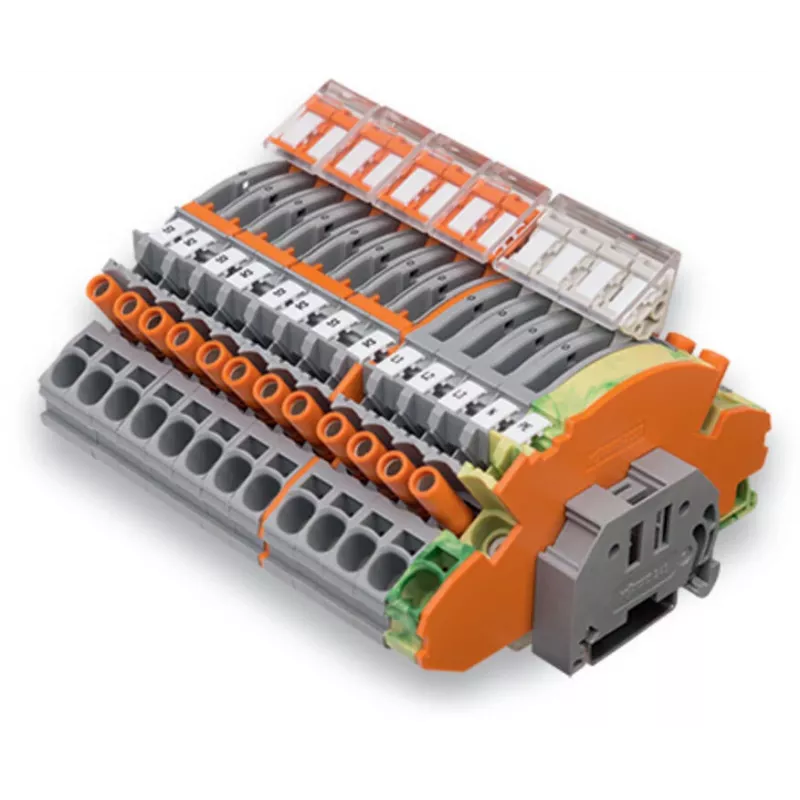

WAGO 2007-8874 rijgklem voor stroom-/spanningstransformatoren, 4 aansluitpunten, grijs, CAGE CLAMP

The WAGO 2007-8874 terminal block is specifically designed for current and voltage transformers, offering a reliable and compact connection solution for industrial applications. With its push-in CAGE CLAMP® technology, it ensures fast, tool-free wiring and a maintenance-free connection.

Advantages

• Tool-free push-in actuation for solid and fine-stranded conductors
• Compact design with 4 connection points on 1 potential
• High rated voltage of 800 V and surge voltage of 8 kV for demanding environments
• Wide operating temperature range from -35 °C to +85 °C
• Pollution degree 3 suitable for industrial settings

Suitable for

• Current and voltage transformer circuits in control cabinets
• DIN-35 rail mounting in industrial automation
• Power distribution and measurement applications

Key specifications

• Number of Potentials: 1
• Number of Connection Points: 4
• Connection Technology: CAGE CLAMP®
• Actuation Type: Push-in
• Rated Voltage (III/3): 800 V
• Rated Surge Voltage (III/3): 8 kV
• Rated Current: 24 A
• Connection Type: Side-entry
• Solid Conductor Size: 0.25 … 4 mm² (22 … 12 AWG)
• Fine-Stranded Conductor Size: 0.25 … 4 mm² (22 … 12 AWG)
• Strip Length: 9 … 11 mm
• Mounting Type: DIN-35 Rail
• Color: Gray
• Insulating Material: Polyamide (PA)
• Operating Temperature: -35 … +85 °C
• Pollution Degree: 3

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper strip length and conductor preparation for reliable connections.
