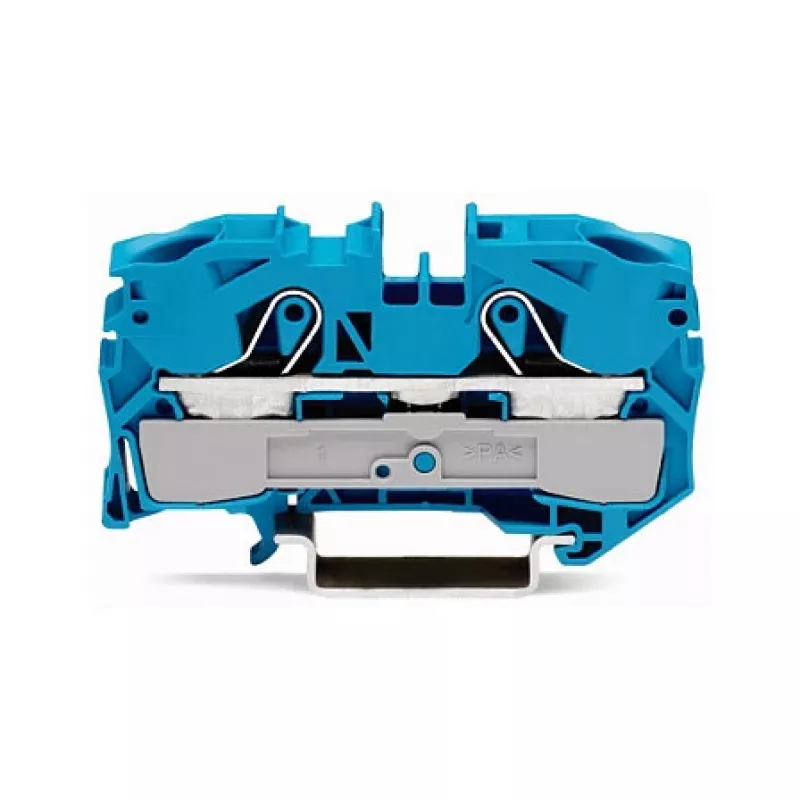

WAGO 2016-1204 2-aderige doorgangsklem, 16 mm², 800 V

The WAGO 2016-1204 is a 2-conductor through terminal block suitable for Ex e II and Ex i applications. It has a nominal voltage of 800 V and a current rating of 90 A, with a blue product colour.

Key features

• 2-conductor through terminal block
• Suitable for Ex e II applications
• Suitable for Ex i applications
• Blue product colour

Specifications

• Brand: WAGO
• MPN: 2016-1204
• Nominal voltage: 800 V
• Current: 90 A
• Minimum cable cross-section: 0.5 mm²
• Maximum cable cross-section: 16 mm²
• Wire range (AWG): 20 - 6

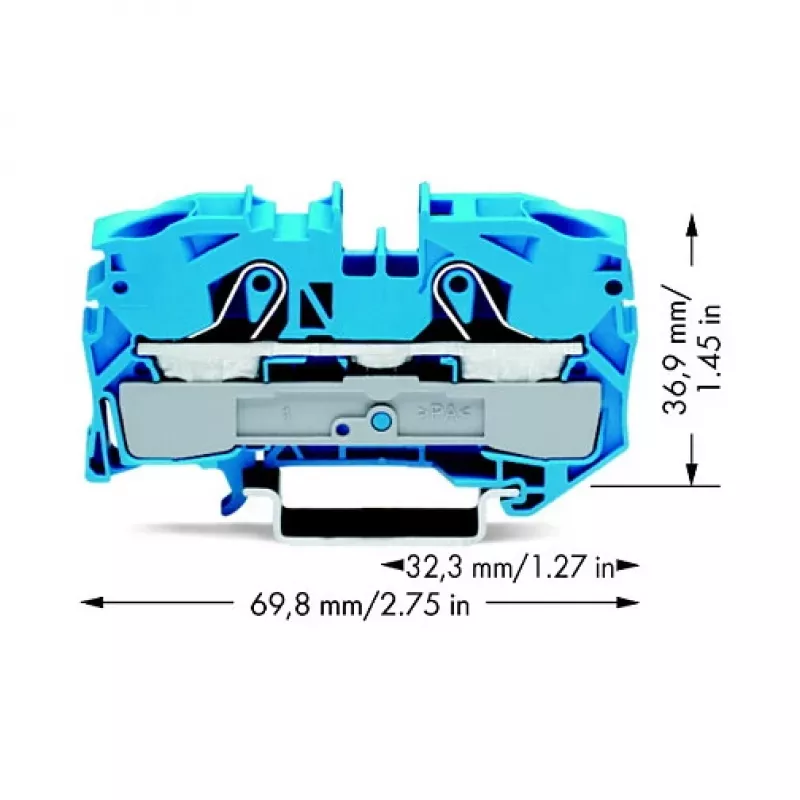

• Width: 12 mm
• Depth: 69.8 mm
• Height: 36.9 mm
