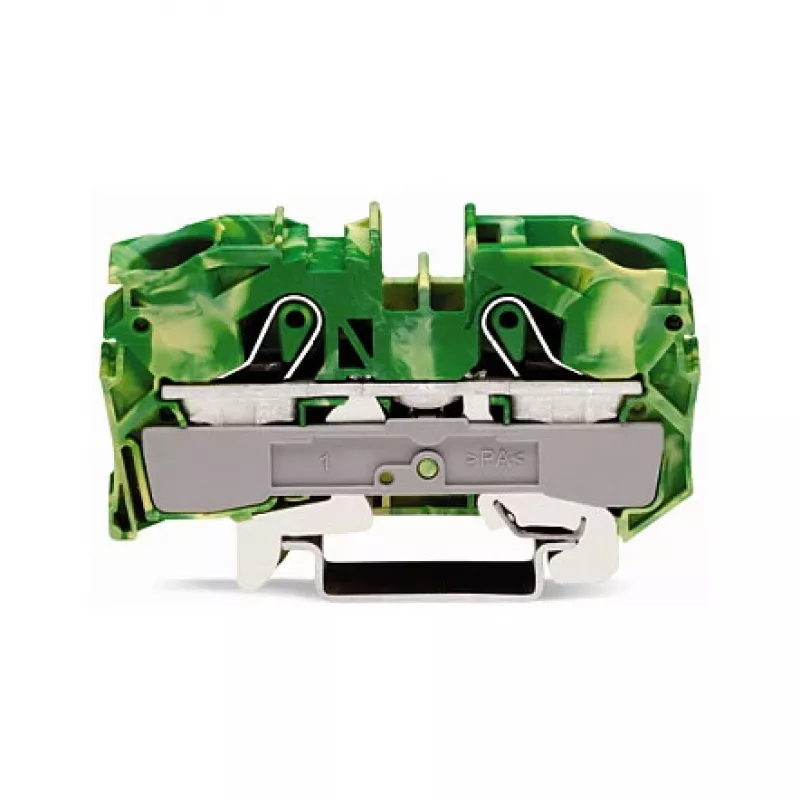

WAGO 2016-1207 2-aderige aardklem, 16 mm²

The WAGO 2016-1207 is a 2-conductor ground terminal block and PE feed-in terminal suitable for Ex e II applications. It features a green-yellow colour and supports wire sizes from 0.5 mm² to 16 mm² (AWG 20-4).

Key features

• 2-conductor ground terminal block
• PE feed-in terminal
• Suitable for Ex e II applications
• Green-yellow colour

Specifications

• Brand: WAGO
• MPN: 2016-1207
• Product colour: Green, Yellow
• Wire size (AWG): 20 - 4
• Minimum wire cross-section: 0.5 mm²
• Maximum wire cross-section: 16 mm²

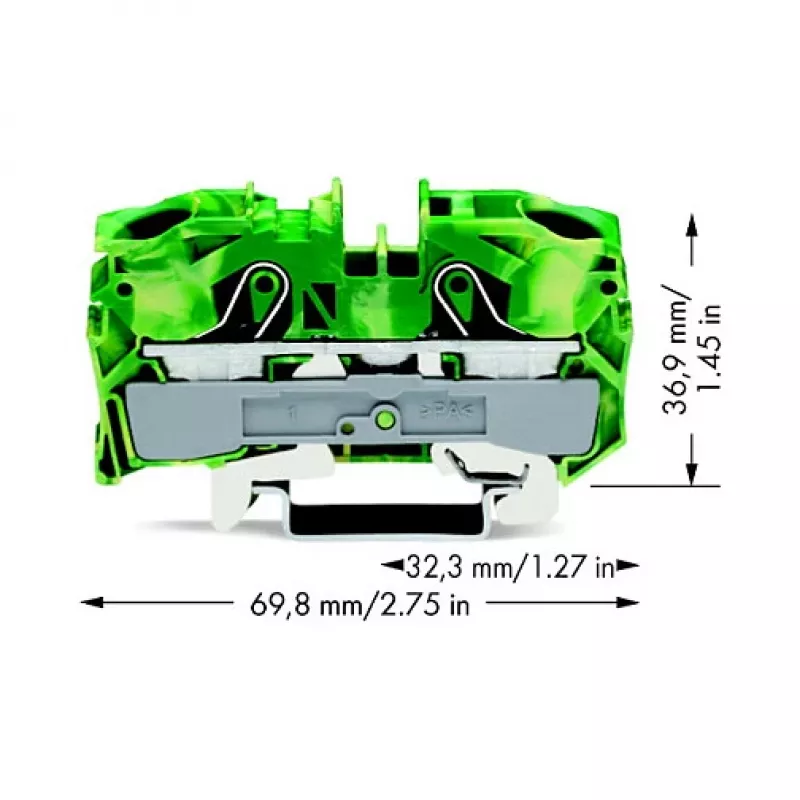

• Width: 12 mm
• Depth: 69.8 mm
• Height: 36.9 mm
