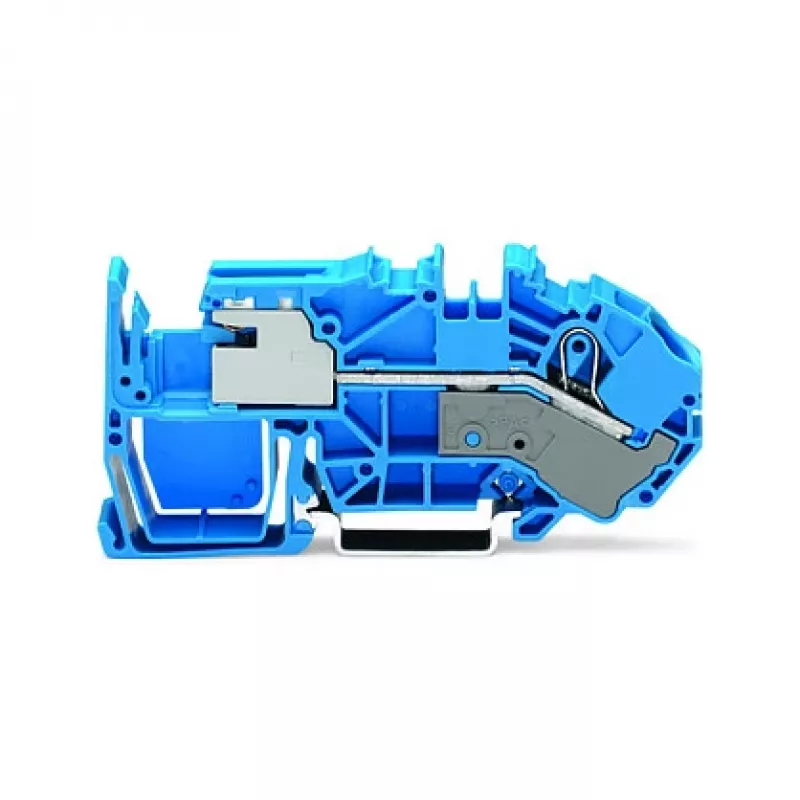

WAGO 2016-7714 1-aderige N-scheidingsklem, 16 mm², Push-in CAGE CLAMP, blauw

The WAGO 2016-7714 is a 1-conductor N-disconnect terminal block in blue, featuring Push-in CAGE CLAMP technology. It supports a nominal voltage of 250 V and a current of 76 A, with a conductor cross-section range of 0.5 mm² to 16 mm² (AWG 20–4).

Key features

• Push-in CAGE CLAMP connection
• 1-conductor N-disconnect function
• Blue colour

Specifications

• Brand: WAGO
• MPN: 2016-7714
• Product colour: Blue
• Current: 76 A
• Nominal voltage: 250 V
• Minimum cable cross-section: 0.5 mm²
• Maximum cable cross-section: 16 mm²
• Wire gauge (AWG): 20–4
• Width: 12 mm
• Depth: 86 mm
• Height: 40.8 mm
