WAGO 221-430 COMPACT 2-aderige verbinder, 0,2-4 mm², 15 stuks, Green Range

The WAGO 221-430 is a compact 2-conductor splicing connector from the 221 COMPACT series, designed for fast and reliable wiring in junction boxes and electrical installations. With a transparent housing and orange operating levers, it allows for easy visual inspection of the connection. This Green Range variant is manufactured using sustainable processes and materials, reducing environmental impact without compromising performance.

Advantages

Tool-free operation: The CAGE CLAMP® connection technology with operating lever enables quick and secure wiring without special tools. Reusable and maintenance-free: Connections can be opened and closed multiple times for testing or reconfiguration. Space-saving design: The compact form factor fits easily into shallow junction boxes. Transparent housing: Allows visual verification of conductor insertion depth and connection quality. Green Range: Eco-friendly production with reduced carbon footprint.

Suitable for

• Solid, stranded, and fine-stranded copper conductors from 0.2 to 4 mm² (24–12 AWG)
• Lighting, socket outlets, and general electrical installations
• Junction boxes, distribution boards, and control cabinets
• Applications requiring frequent reconnection or testing

Key specifications

• Number of conductors: 2
• Conductor cross-section: 0.2–4 mm² (solid/stranded), 0.14–4 mm² (fine-stranded)
• Rated voltage (EN): 450 V
• Rated current (EN): 32 A
• Rated impulse voltage: 4 kV
• Connection technology: CAGE CLAMP®

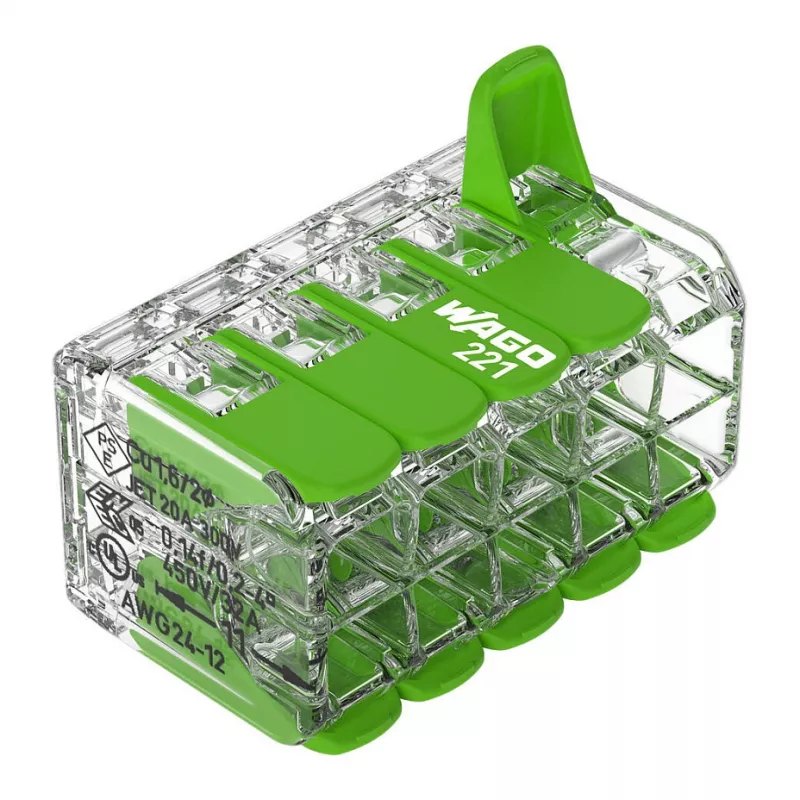

• Actuation: Operating lever
• Stripping length: 11 mm / 0.43 inch
• Insulation material: Polycarbonate (PC)
• Contact material: Electrolytic copper (E Cu)
• Flammability class: UL94 V0
• Operating temperature: up to 105 °C
• Pollution degree: 2
• Approvals: VDE, UL, CSA, ENEC
• Pack quantity: 15 pieces

Recommendations

For optimal performance, use with WAGO 221 series accessories and ensure proper stripping length. Suitable for both new installations and retrofitting. Always follow local electrical codes and regulations.
