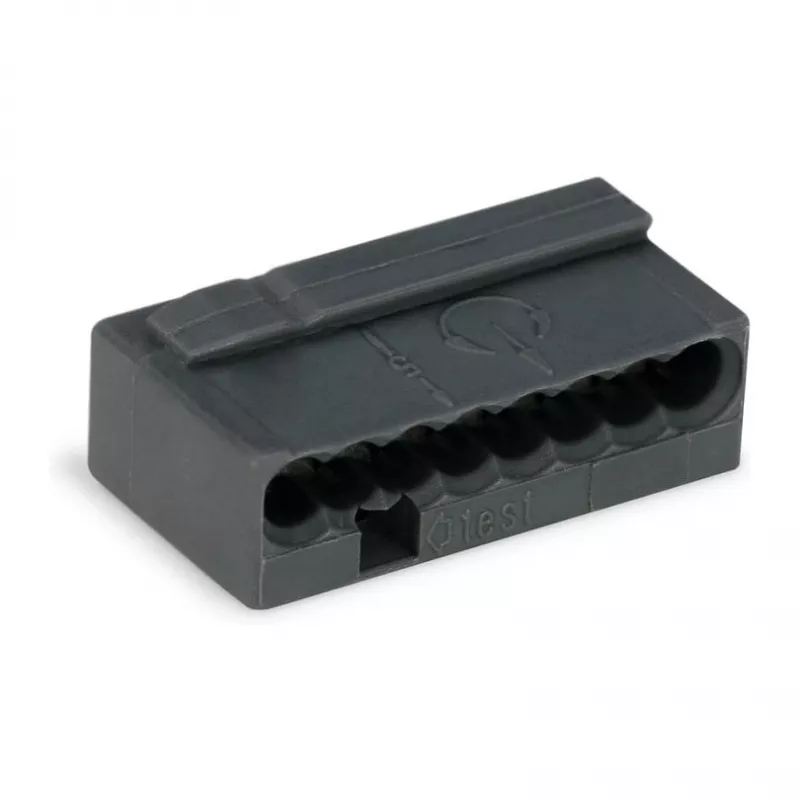

WAGO 243-208 PUSH WIRE® connector, grijs, 6 A, 100 V, 2-geleider, 0,5-1,5 mm²

The WAGO 243-208 is a compact PUSH WIRE® connector from the 243 Series, designed for fast and tool-free wiring of solid conductors in lighting fixtures and luminaires. With a rated voltage of 100 V and current of 6 A, it provides reliable connections for low-voltage applications. The grey polyamide 6.6 housing offers excellent insulation and a flammability rating of UL 94 V-2. Side-entry wiring and a stripping length of 9-11 mm simplify installation. Suitable for solid conductors from 0.5 to 1.5 mm², this connector is approved by VDE, ENEC, UL, and CSA.

Advantages

Tool-free PUSH WIRE® connection saves installation time. Compact design (18.4 mm x 6.8 mm) fits tight spaces. High-quality electrolytic copper contacts ensure reliable conductivity. Wide operating temperature range from -35 to +105 °C.

Suitable for

• Lighting fixtures and luminaires
• Control cabinets and junction boxes
• Low-voltage wiring applications

Key specifications

• Nominal Voltage: 100 V
• Nominal Current: 6 A
• Number of Connection Points: 2
• Conductor Type: Solid
• Cross Section: 0.5 - 1.5 mm²
• Connection Technology: PUSH WIRE®
• Color: Grey
• Insulation Material: Polyamide 6.6 (PA 6.6)
• Flammability Rating: UL 94 V-2
• Operating Temperature: -35 to +105 °C
• Pollution Degree: 2
• Rated Impulse Voltage: 2.5 kV
• Wiring Type: Side-entry wiring
• Stripping Length: 9 - 11 mm
• Approvals: VDE, ENEC, UL, CSA
• Contact Material: Electrolytic copper (Cu ETP)
• Series: 243 Series

Recommendations

For optimal performance, use with solid copper conductors and ensure proper stripping length. Always follow local electrical codes.
