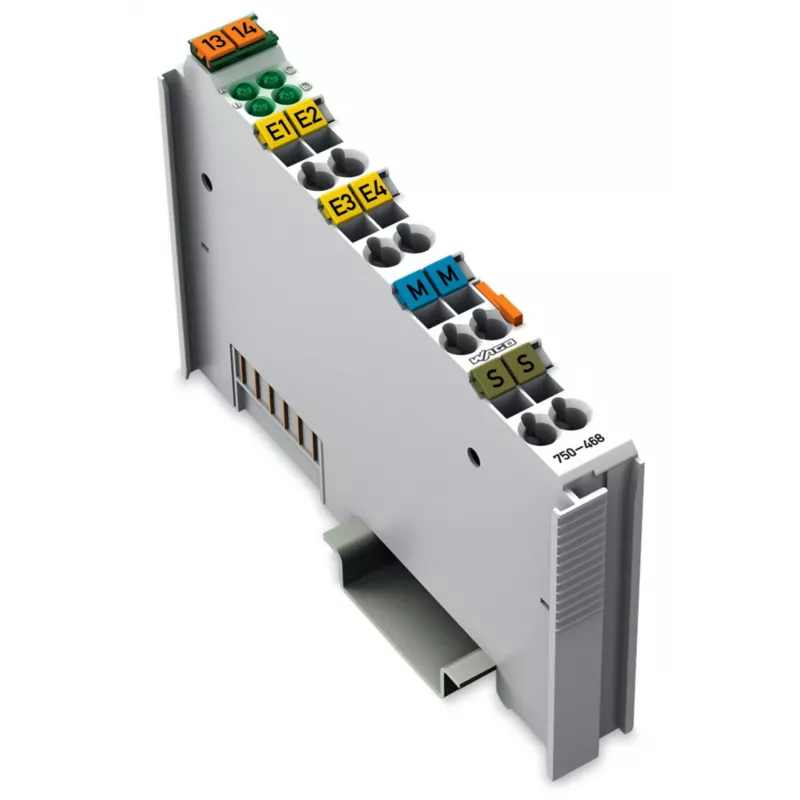

WAGO 750-468 - 4-kanaals analoog ingangsmodule, 12 bit, 4 ms, 0-10 V / 4-20 mA

The WAGO 750-468 is a 4-channel analog input module for the WAGO I/O System 750. It accepts voltage (0-10 V, 2-10 V, ±10 V) and current (0-20 mA, 4-20 mA, ±20 mA) signals with 12-bit resolution and a conversion time of 4 ms for all channels. The module features 500 V system/field isolation and uses CAGE CLAMP® connection technology for secure wiring. It is designed for DIN-rail mounting and operates on a 24 VDC system bus supply.

Advantages

High accuracy (0.1% of full scale), fast conversion, robust isolation, and flexible input ranges make this module ideal for precise industrial automation and process control applications.

Suitable for

• Industrial automation and control systems
• Process monitoring and data acquisition
• Building automation and energy management
• Machine control and sensor integration

Key specifications

• Number of Channels: 4
• Input Type: Analog Voltage/Current
• Input Voltage Range: 0-10 V, 2-10 V, ±10 V
• Input Current Range: 0-20 mA, 4-20 mA, ±20 mA
• Resolution: 12 Bit
• Conversion Time: 4 ms (all channels)
• Isolation Voltage: 500 V (System/Field)
• Connection Technology: CAGE CLAMP®
• Supply Voltage: 24 VDC (via system bus)
• Accuracy: 0.1% of full scale (typical)
• Operating Temperature: 0 to +55 °C
• Mounting Type: DIN-rail
• Internal Current Consumption: 40 mA (typical)
• Process Data Width: 2 x 16-bit

Recommendations

For optimal performance, use with WAGO I/O System 750 bus couplers and configure via WAGO-I/O-PRO or similar software. Ensure proper wiring (2-wire or 3-wire) and observe environmental limits.
