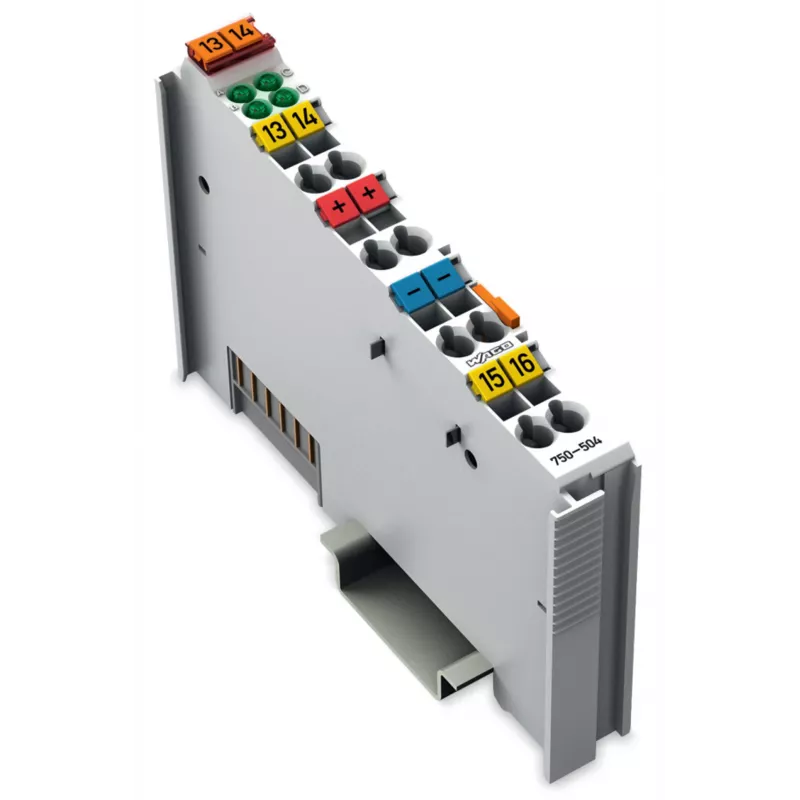

WAGO 750-504 digitaal uitgangsmodule, 4 kanalen, 24 VDC, 0,5 A, CAGE CLAMP, DIN-rail

The WAGO 750-504 is a high-performance digital output module designed for the WAGO-I/O-SYSTEM 750. It features 4 sourcing (PNP) outputs with a maximum output current of 0.5 A per channel and a total output current of 2 A. The module operates at 24 VDC and provides reliable switching for industrial automation applications. With CAGE CLAMP® connection technology, it ensures secure and maintenance-free wiring. The module includes short-circuit and overload protection, status LEDs for each channel, and is rated IP20 for use in control cabinets.

Advantages

Compact design with 12 mm width saves space on DIN rail. Integrated protection features enhance system reliability. Easy wiring with CAGE CLAMP® technology reduces installation time. LED indicators provide quick visual status feedback.

Suitable for

• Industrial automation and control systems
• Building automation
• Process control
• Machine control

Key specifications

• Module Function: Digital Output
• Number of Outputs: 4
• Output Type: Sourcing (PNP)
• Output Voltage: 24 VDC
• Max. Output Current per Channel: 0.5 A
• Total Output Current: 2 A
• Connection Technology: CAGE CLAMP®
• System Compatibility: WAGO-I/O-SYSTEM 750
• Isolation Voltage: 500 V (System/Field)
• Internal Current Consumption: 25 mA
• Wiring Type: 2-wire
• Operating Temperature: 0 to 55 °C
• Relative Humidity: 0 to 95 % (non-condensing)
• Mounting Type: DIN Rail
• Protection Class: IP20
• Short-Circuit Protection: Yes
• Overload Protection: Yes
• Status Indicators: LED (for each channel and module status)
• Dimensions (W x H x D): 12 x 100 x 69.8 mm

Recommendations

For optimal performance, use with WAGO power supply and bus coupler modules. Ensure proper DIN rail mounting and observe ambient temperature limits.
