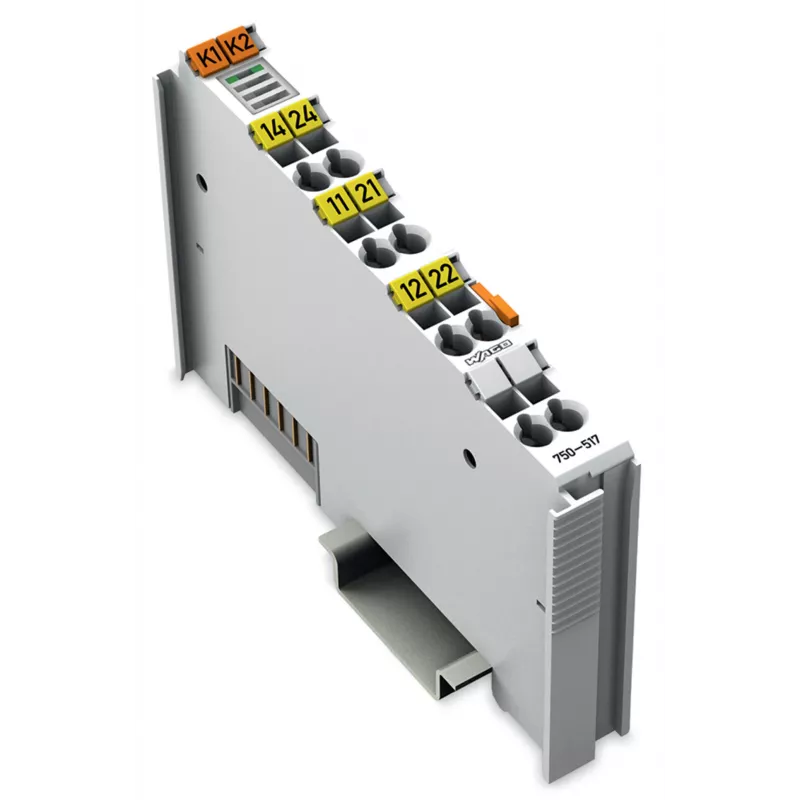

WAGO 750-517 - 2-kanaals relaisschakelmodule, 1,5 kV isolatie, 24 VDC, DIN-rail

The WAGO 750-517 is a 2-channel relay output module designed for the WAGO I/O System 750. It provides reliable switching of loads up to 250 VAC / 30 VDC and 2 A per channel, with galvanic isolation of 1.5 kV between system and field. The module features normally open (NO) contacts and status LEDs per channel for easy diagnostics. It is powered via the system backplane bus and requires no configuration, making it ideal for simple on/off control applications in industrial automation.

Advantages

Compact design saves space on DIN rail; high switching voltage and current capability; robust 1.5 kV isolation ensures safety; LED status indication simplifies troubleshooting; pluggable CAGE CLAMP® connections for fast wiring; no configuration needed reduces setup time.

Suitable for

• Industrial control cabinets
• Building automation
• Process control systems
• Machine control
• Switching of motors, valves, and lighting

Key specifications

• Number of channels: 2
• Output type: Relay (Normally Open)
• Max. switching voltage: 250 VAC / 30 VDC
• Max. switching current: 2 A per channel
• Isolation voltage: 1.5 kV (system/field)
• Supply voltage (system): 24 VDC
• Power consumption: 30 mA typ.
• Connection technology: CAGE CLAMP®
• Operating temperature: 0 to +55 °C
• Storage temperature: -25 to +85 °C
• Relative humidity: 0 to 95 % (non-condensing)
• Mounting type: DIN Rail
• Protection class: IP20
• Dimensions (W x H x D): 12 x 100 x 69.8 mm

Recommendations

For optimal performance, use with WAGO 750 series bus couplers and power supply modules. Ensure proper DIN rail mounting and observe derating guidelines for high ambient temperatures.
