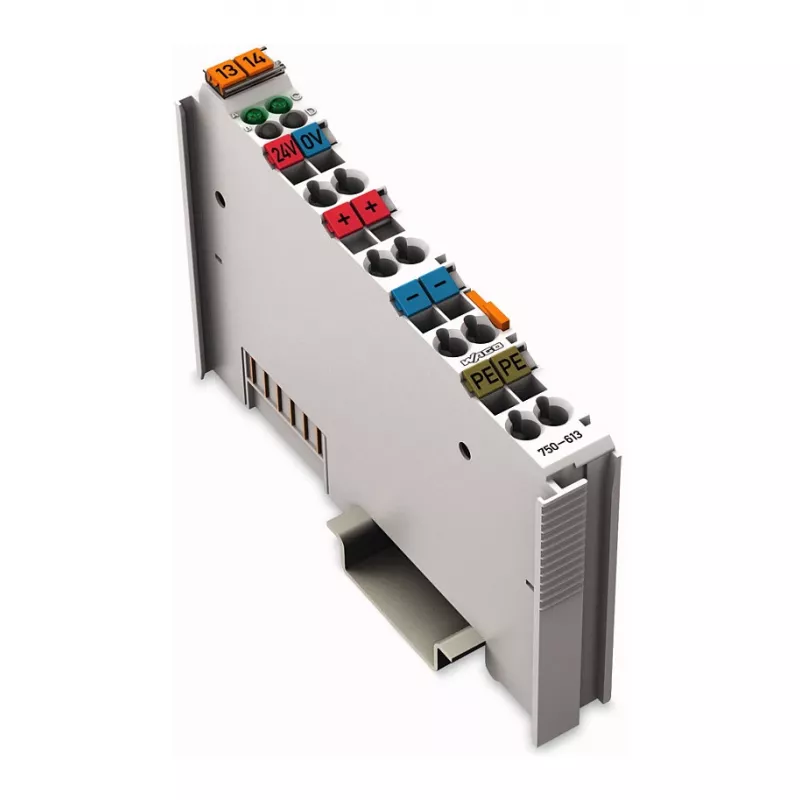

WAGO 750-613 4-geleider klemmenblok, grijs, CAGE CLAMP, 0,08-2,5 mm², DIN-35-rail

The WAGO 750-613 is a high-quality 4-conductor terminal block designed for reliable and maintenance-free connections in industrial control systems. Featuring the renowned CAGE CLAMP® connection technology, it ensures secure, vibration-proof wiring for solid and fine-stranded conductors. This gray terminal block is ideal for use on DIN-35 rails and is suitable for a wide range of applications, from building automation to machine control.

Advantages

• CAGE CLAMP® technology for fast, tool-free wiring and high contact reliability
• Compact design saves space on the DIN rail
• Wide conductor range (0.08 to 2.5 mm²) for flexible use
• High nominal voltage (500 V) and current (24 A) for demanding applications
• Robust polyamide 66 housing with UL94 V-0 flammability rating for safety

Suitable for

• Industrial automation and control cabinets
• Building management systems (HVAC, lighting)
• Process control and instrumentation
• Power distribution and signal wiring

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Potentials: 1
• Number of Connection Points: 4 (2 x 2-conductor)
• Nominal Voltage (IEC): 500 V
• Nominal Current (IEC): 24 A
• Solid Conductor Size: 0.08 - 2.5 mm² (28 - 14 AWG)
• Fine-Stranded Conductor Size: 0.08 - 2.5 mm² (28 - 14 AWG)
• Fine-Stranded Conductor with Ferrule: 0.25 - 1.5 mm² (22 - 16 AWG)
• Stripped Length: 8 - 9 mm
• Mounting Type: DIN-35 Rail
• Color: Gray
• Pollution Degree: 2
• Overvoltage Category: III
• Insulation Material: Polyamide 66 (PA 66)
• Flammability Class: UL94 V-0
• Operating Temperature: -20 ... +60 °C
• Storage Temperature: -40 ... +85 °C
• Approvals: CE, cULus, KEMA/KEUR, GL, LR, DNV, RINA, ABS, BV

Recommendations

For optimal performance, use with WAGO marking strips and tools. Ensure proper stripping length (8-9 mm) for reliable connection. Suitable for use in pollution degree 2 environments.
