WAGO 750-963 D-sub-aansluitmodule, 9-polig bus, grijs, IP20, voor WAGO I/O System 750

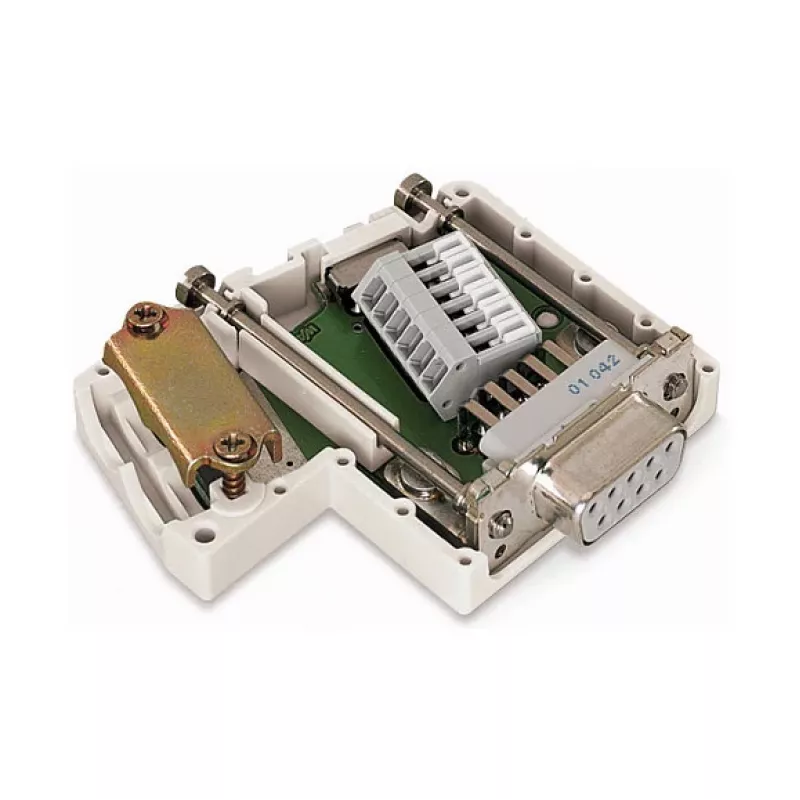

The WAGO 750-963 is a D-Sub connector module designed for the WAGO I/O System 750. It provides a 9-pin female D-Sub interface for connecting external devices to the automation system. The module features a compact design, grey housing, and IP20 protection, making it suitable for industrial control cabinets.

Advantages

Reliable CAGE CLAMP® connection technology ensures secure and maintenance-free wiring. The module is easy to install on a DIN rail and integrates seamlessly with the WAGO I/O System 750 backplane bus.

Suitable for

• Industrial automation and PLC systems
• Connecting serial devices (RS-232, etc.) to WAGO I/O modules
• Control cabinet wiring in manufacturing and process industries

Key specifications

• Connector: D-Sub 9-pin socket (female)
• Protection class: IP20
• Color: Grey
• Mounting: DIN rail
• Operating temperature: 0 ... 55 °C
• Storage temperature: -25 ... 85 °C
• Relative humidity: 95% (non-condensing)
• Housing material: Polyamide 6.6 (PA 6.6)
• Weight: 27.6 g

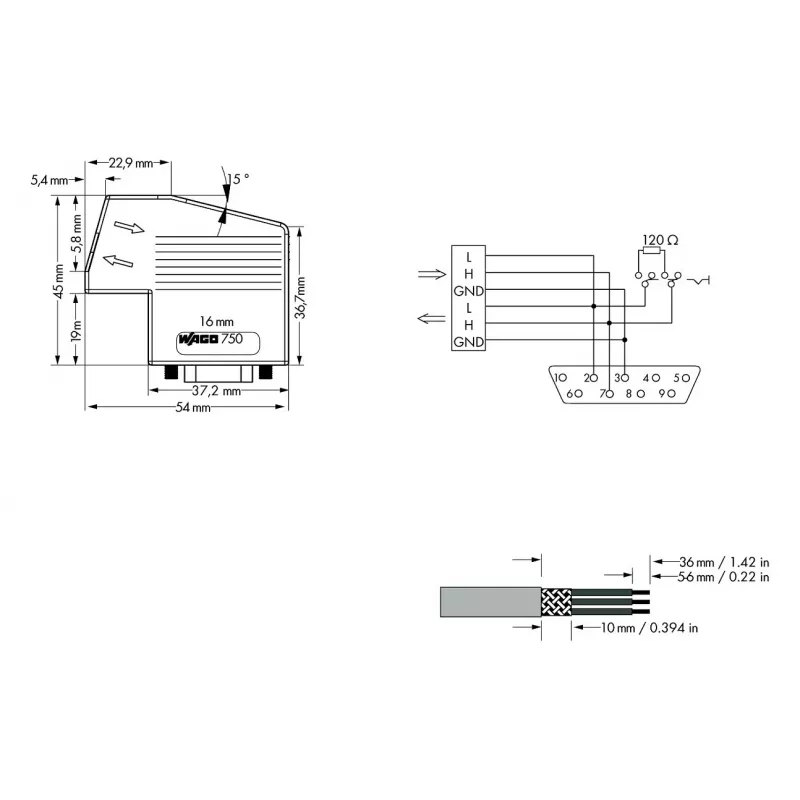

• Dimensions: 45 mm x 54 mm

Recommendations

For optimal performance, use with WAGO I/O System 750 components and ensure proper DIN rail mounting. Verify compatibility with your specific PLC or controller.
