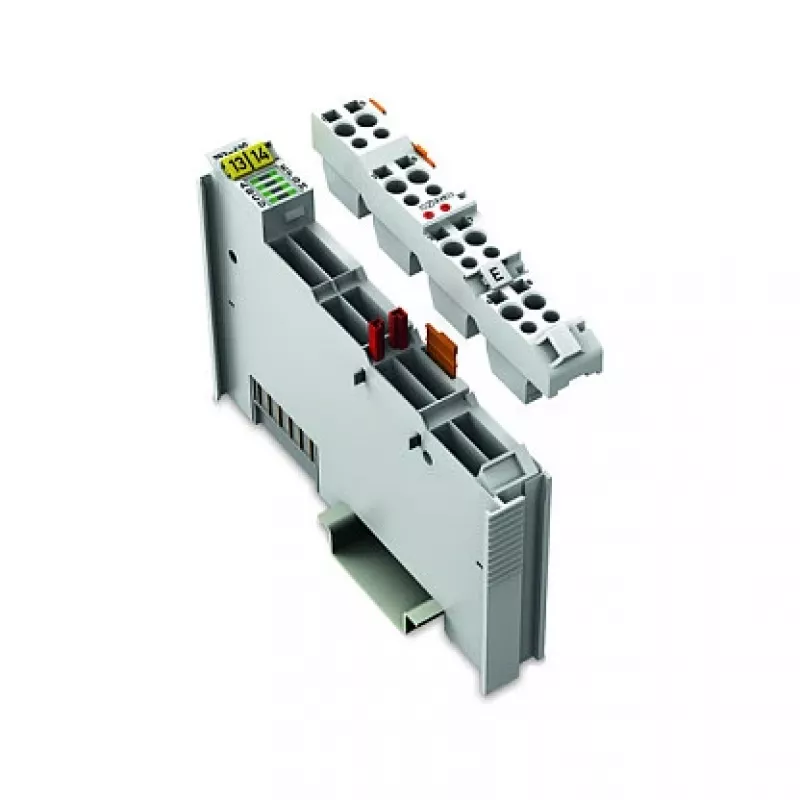

WAGO 753-430 - 8-kanaals digitaal ingangsmodule, 24 VDC, 5 kV isolatie, CAGE CLAMP, DIN-rail

The WAGO 753-430 is a high-performance 8-channel digital input module designed for the WAGO I/O System 750/753. It features 24 VDC nominal input voltage, 5 kV system isolation, and CAGE CLAMP® connection technology for secure and maintenance-free wiring. The module is ideal for industrial automation applications requiring reliable signal acquisition in harsh environments.

Advantages

• 8 digital inputs with 3-wire connection (sensor supply)
• High isolation voltage of 5 kV for enhanced system protection
• LED status indication per channel for easy diagnostics
• Compact design: 12 x 100 x 69 mm (width x height x depth)
• Wide operating temperature range: -20 ... +60 °C
• IP20 protection for use in control cabinets

Suitable for

• Industrial automation and control systems
• Building automation
• Process control
• Machine building
• Any application requiring reliable digital signal acquisition

Key specifications

• Number of channels: 8
• Input type: Digital (DC)
• Nominal input voltage: 24 VDC
• System isolation voltage: 5 kV
• Wiring type: 3-wire
• Internal current consumption: 17 mA
• Connection technology: CAGE CLAMP®
• Mounting type: DIN rail
• Input delay: 3 ms
• Bit width: 8 bits
• Input current per channel: 2.8 mA
• Operating temperature: -20 ... +60 °C
• Protection class: IP20
• Compatibility: WAGO I/O System 750/753

Recommendations

For optimal performance, use with WAGO bus couplers and power supplies. Ensure proper DIN rail mounting and observe isolation ratings.
