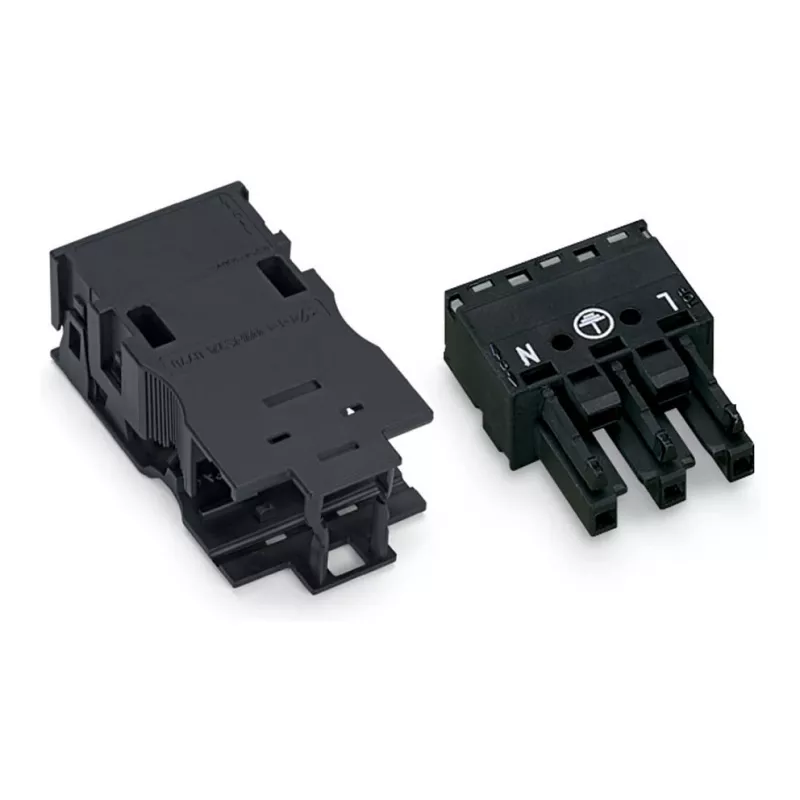

WAGO busconnector 770-203/035-000 met trekontlastingsbehuizing, zwart

The WAGO 770-203/035-000 is a high-quality female connector (socket) from the WINSTA MINI series, featuring an integrated strain relief housing for secure cable connections. Designed for industrial and building automation applications, this 3-pole connector utilizes the reliable CAGE CLAMP® connection technology for fast and maintenance-free wiring.

Advantages

Integrated strain relief housing protects the cable connection from mechanical stress. Compact design saves space in control cabinets and junction boxes. Tool-free operation with CAGE CLAMP® spring terminals reduces installation time. Tin-plated copper contacts ensure excellent conductivity and corrosion resistance.

Suitable for

• Industrial control systems
• Building automation (lighting, HVAC)
• Machine building and plant engineering
• Sensor and actuator wiring

Key specifications

• Connector type: Female (Socket)
• Number of poles: 3
• Rated voltage: 250 V
• Rated current: 16 A
• Conductor cross-section: 0.5 - 1.5 mm² (solid/fine-stranded)
• Stripped length: 9 mm
• Color: Black
• Housing material: Polyamide 66 (PA 66)
• Contact material: Copper alloy, tin-plated
• Protection type: IP20
• Flammability rating: UL94 V-0
• Operating temperature: -35 °C to +85 °C

Recommendations

For optimal performance, use with WAGO mating connectors and ensure proper stripping length. Suitable for solid and fine-stranded conductors. Always observe local electrical codes and regulations.
