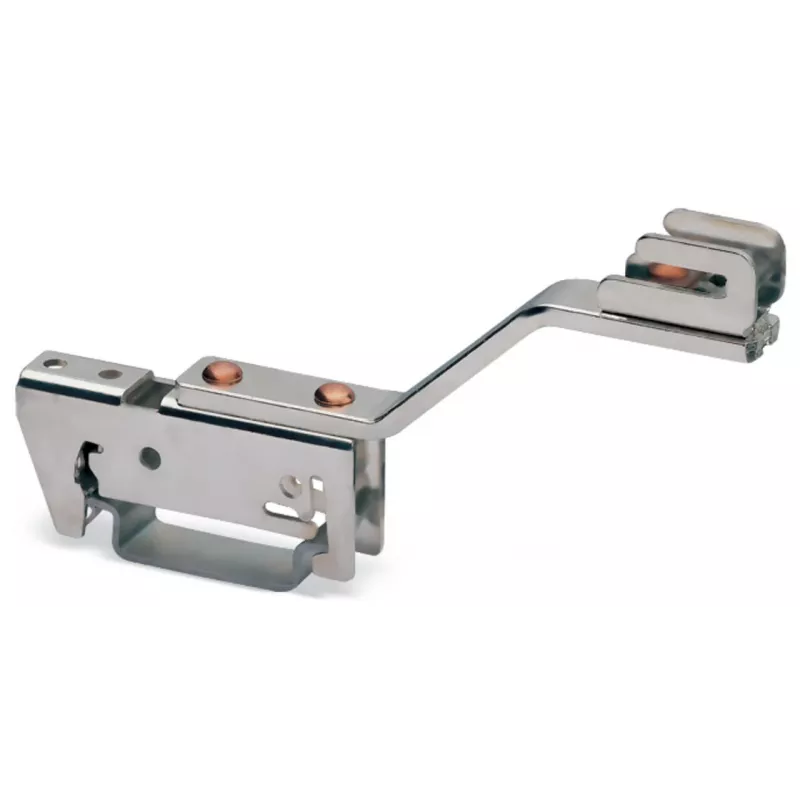

WAGO verzamelrailhouder voor Cu-verzamelrails 10 mm x 3, 790-301

The WAGO 790-301 busbar holder is a high-quality mounting accessory designed for secure snap-on installation on DIN rail TS 35. It accommodates copper busbars with dimensions of 10 mm x 3 mm, providing reliable electrical connection and insulation. Ideal for industrial control cabinets and distribution systems.

Advantages

Easy snap-on mounting on DIN rail; robust polyamide construction with UL 94 V-0 flammability rating; halogen-free and RoHS compliant; wide operating temperature range from -35 °C to +105 °C.

Suitable for

• Industrial control cabinets
• Power distribution systems
• Electrical installations requiring busbar support

Key specifications

• Product Type: Busbar Holder
• Compatible Busbar Dimensions: 10 x 3 mm
• Busbar Material: Copper (Cu)
• Mounting Type: Snap-on
• Mounting Rail: DIN rail TS 35
• Material: Polyamide (PA 6.6)
• Color: Light Grey
• Operating Temperature: -35 °C to +105 °C
• Flammability Rating: UL 94 V-0
• Rated Voltage: 800 V
• Rated Impulse Voltage: 6 kV
• Pollution Degree: 3
• Number of Busbars per Holder: 1

Recommendations

For optimal performance, use with WAGO busbars and ensure proper installation on DIN rail. Verify compatibility with your system voltage and environmental conditions.
