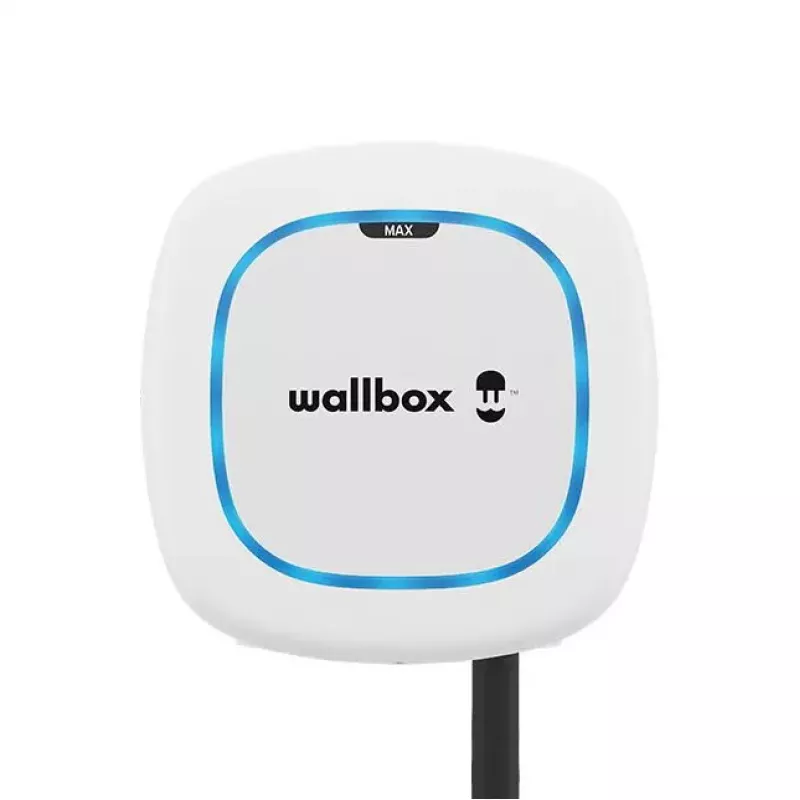

Wallbox Pulsar Max Wallbox 22 kW, Wi‑Fi & Bluetooth, 5 m kabel, IP54, IK10, Wit

The Wallbox Pulsar Max is a compact 22 kW electric vehicle charger designed for residential and light commercial installations. It features Wi‑Fi and Bluetooth connectivity for control via the myWallbox app, IK10 impact protection, IP54 ingress protection and a 5 m charging cable. The unit supports Wallbox energy management functionalities and is built for outdoor-capable operation across a wide temperature range.

Advantages

Pulsar Max combines a small footprint with high charging capacity, allowing faster charging in limited spaces. Built to withstand impacts and outdoor conditions, it offers simplified installation and app-based authorization and control. Wireless connectivity via Wi‑Fi and Bluetooth enables remote management and integration with Wallbox energy features.

Suitable for

• Home charging for electric cars
• Small business or workplace charging points
• Outdoor or semi-outdoor installations requiring weather protection

Key specifications

• Charging capacity: 22 kW
• Connectivity: Wi‑Fi, Bluetooth
• Cable length: 5 m
• Ingress protection: IP54
• Impact protection: IK10
• Operating temperature range: -25°C to +50°C
• Color: White
• Gross weight (packaged): 5.40 kg; Net weight (unit): 4.91 kg
• Warranty: 36 months

How to use

Install the Wallbox Pulsar Max according to local electrical regulations and the manufacturer’s installation guide. Connect the charger to a compatible three-phase or single-phase supply as required for 22 kW operation, mount the unit in a suitable location, and run the 5 m cable to the vehicle inlet. Use the myWallbox app to authorize users, start and stop charging sessions, and monitor charging status over Wi‑Fi or Bluetooth.

Recommendations

For reliable performance, mount the charger where it is protected from extreme mechanical stress and ensure sufficient clearance for ventilation. Verify site electrical capacity before installation and keep the myWallbox app updated to access the latest firmware and energy management features.
