Wandframe voor Sonoff M5-4C-80-FW schakelaar — viervoudig wit

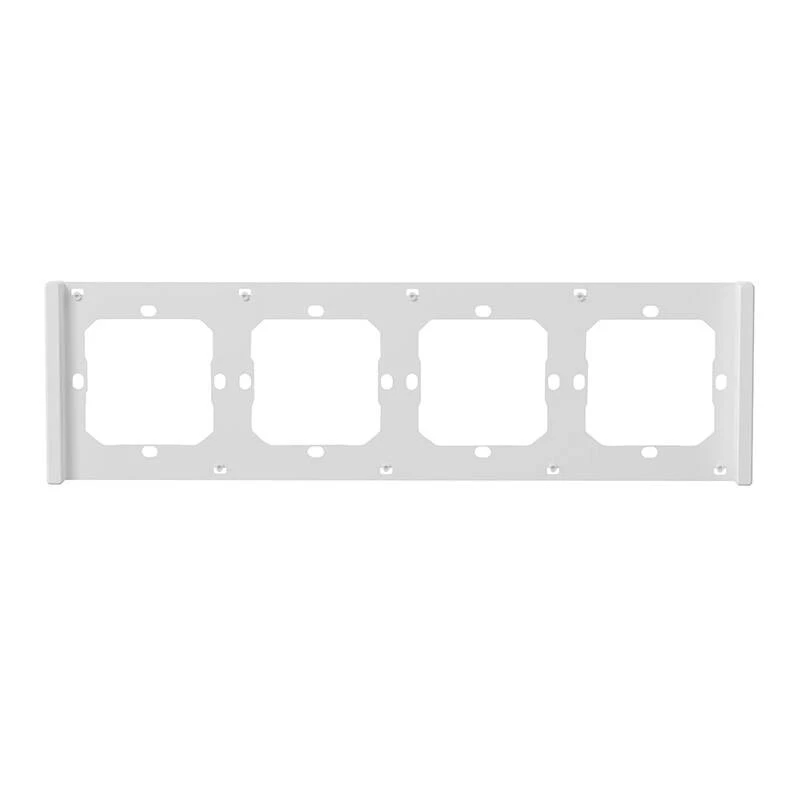

Frame for M5 80 switch quadruple SONOFF M5-4C-80-FW (white). Replacement wall frame designed for the Sonoff M5-4C-80-FW quadruple switch. The white finish provides a neat, unobtrusive look for residential or commercial interiors while protecting and securing the installed switch unit.

Advantages

The frame is precisely shaped for Sonoff M5-80 series quadruple switches to ensure an exact fit and clean installation. Manufactured from fire-resistant PC V0 material, it offers elevated temperature resistance and long-term durability while maintaining a slim profile. Its white color integrates smoothly into modern interiors and helps conceal mounting edges.

Suitable for

• Mounting the Sonoff M5-4C-80-FW quadruple switch in residential interiors
• Finishing wall installations in offices and commercial spaces
• Replacing a damaged or worn frame for Sonoff M5-80 series switches

Key specifications

• Manufacturer: Sonoff
• Model: M5-4C-80-FW
• Dimensions: 299 x 86 x 14.8 mm (length x width x height)
• Package dimensions: 301 x 88 x 16 mm
• Weight (net/gross): 60 g / 70 g
• Color: White
• Material: Fire resistant PC V0
• Compatibility: M5-80 Sonoff quadruple switches

How to use

Remove the existing frame if present and position the Sonoff M5-80 quadruple switch into the wall box according to the switch manufacturer’s mounting instructions. Align the M5-4C-80-FW frame over the switch module and secure it with the original fixings or screws provided during installation. Ensure cable connections are accessible and that the frame sits flush against the wall for a neat finish.

Recommendations

Check compatibility with the Sonoff M5-80 series before purchase. Use appropriate fixings for the wall material and follow local electrical safety rules during installation; disconnect power before handling wiring.
