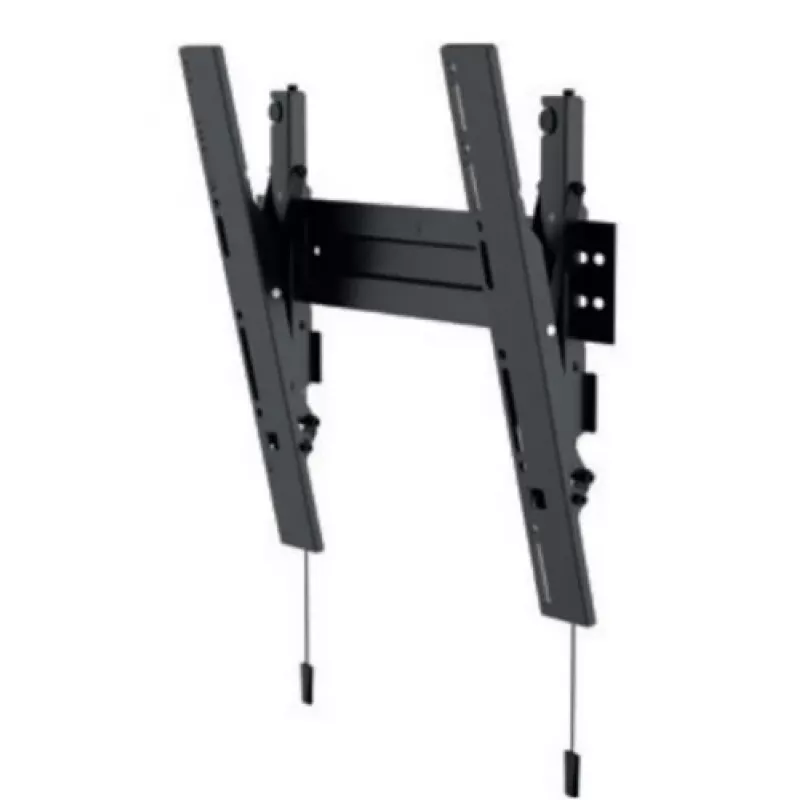

Wandhouder Hagor BL Superslim Tilt 400 55 inch zwart

The BL Superslim Tilt 400 is a tiltable wall mount for screens with diagonals from 32" to 55" (81–140 cm). It supports VESA patterns from 100 x 100 mm up to 400 x 400 mm and holds displays up to 35 kg. The mount sits close to the wall with a slim 30 mm profile, offers a +0° to +12° tilt range and is finished in black with a solvent-free, impact- and scratch‑resistant powder coating.

Advantages

The BL Superslim Tilt 400 combines a very low wall distance with a universal VESA compatibility, allowing neat, space-saving installations for a wide range of TVs and displays. Independent ±8 mm fine height adjustment on each side ensures precise leveling after installation. A rope-actuated spring latch with quick-release and integrated magnets holds the bracket securely while remaining easy to remove when needed.

Suitable for

• Mounting 32"–55" TVs or monitors with VESA 100x100 up to 400x400
• Rooms where a slim wall profile is desired (30 mm)
• Installations requiring a small tilt adjustment for viewing comfort (0–12°)
• Setups where a single display up to 35 kg is used

Key specifications

• Supported screen diagonal: 32"–55" (81–140 cm)
• Maximum load: 35 kg
• VESA compatibility: from 100 x 100 mm to 400 x 400 mm
• Tilt range: 0° to +12°
• Wall distance: 30 mm
• Height fine adjustment: ±8 mm per side
• Color/finish: Black, solvent-free powder coating

How to use

Attach the wall plate to a suitable load-bearing surface according to the VESA and weight specifications. Fix the matching VESA adapter to the display, hang the display on the wall plate and secure it using the rope-drawn spring-loaded latch. Use the adjusting screws on each side to level the screen with up to ±8 mm independent height adjustment. Tilt the display within the 0–12° range to achieve the preferred viewing angle.

Recommendations

Ensure the chosen mounting location and wall fixings support the display weight (max. 35 kg). Verify VESA pattern compatibility before installation and use appropriate screws and anchors for the wall material. Regularly check the latch and fasteners for secure attachment.
