Wandmontage-rack EFB Elektronik 691609VGR.60

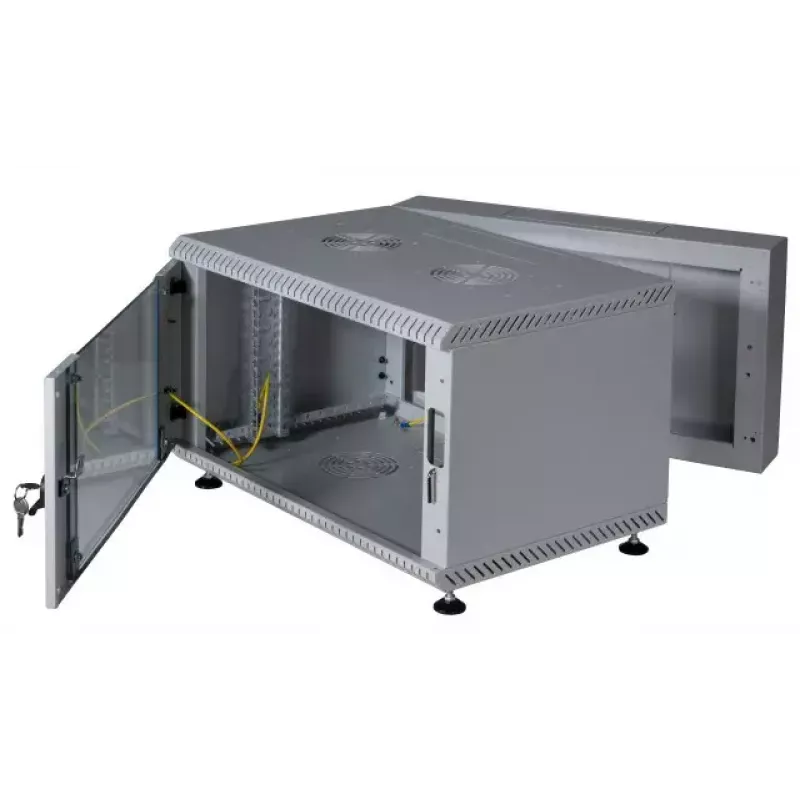

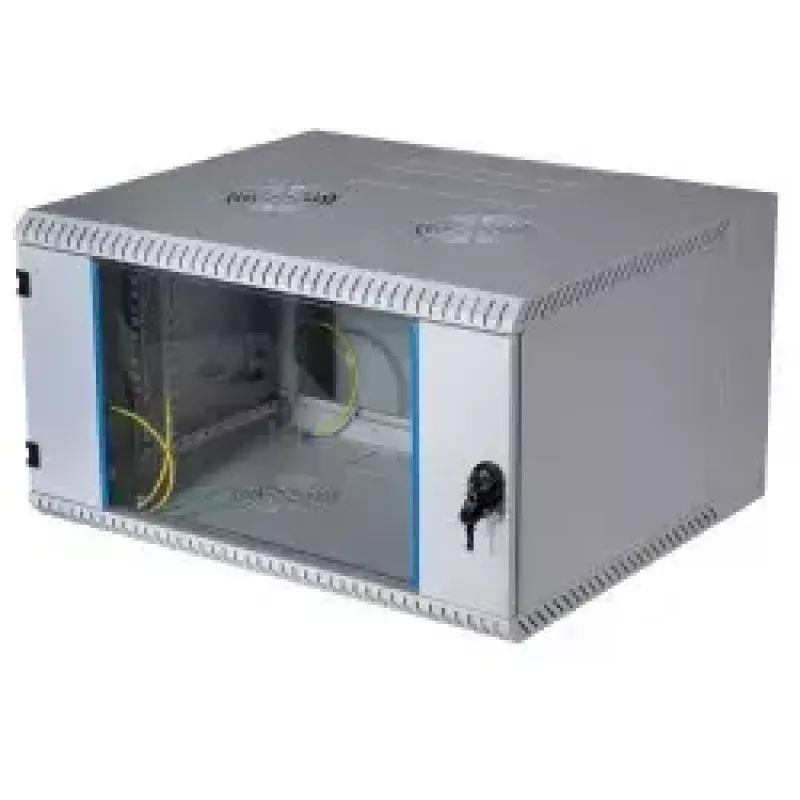

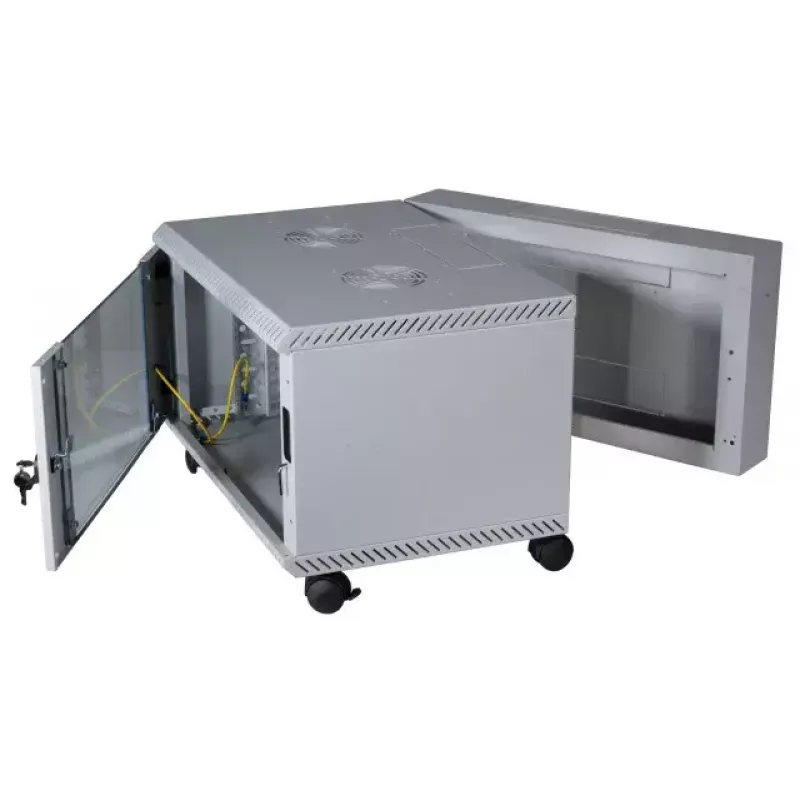

The EFB Elektronik 691609VGR.60 is a 9U wall mounted rack with a steel sheet housing and welded frame, pre-assembled for straightforward installation. It features a rear-sided swing-frame that allows the front part of the housing to swivel for easier access to installed equipment. The compact grey enclosure is intended for indoor network cabinet use and conforms to IP20 protection.

Advantages

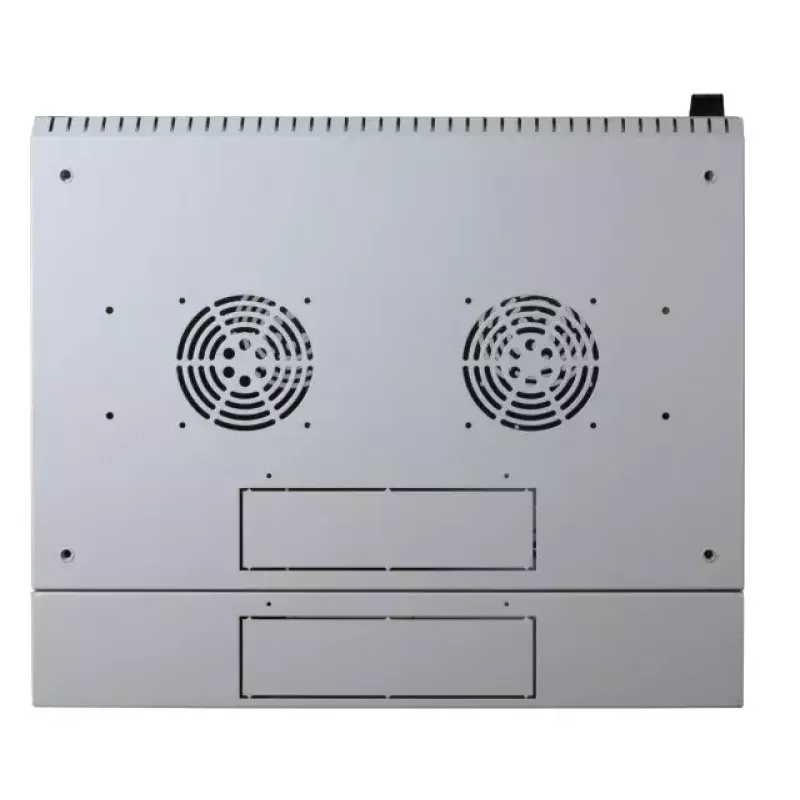

This wall mounted rack offers a robust welded steel construction and comes pre-assembled to reduce installation time. The rear-sided swing-frame improves serviceability by permitting the front section to swing open, and the self-ventilated housing supports passive airflow for installed components. With a 9U rack capacity and a 40 kg maximum load, the unit is suitable for light to moderate networking equipment.

Suitable for

• Small server or network equipment in offices and telecom closets
• Patch panels, switches and small routers
• Environments requiring compact wall-mounted rack solutions with IP20 protection

Key specifications

• Brand: EFB Elektronik
• Model (MPN): 691609VGR.60
• EAN: 4049759212681
• Rack capacity: 9U
• Dimensions (W × D × H): 600 × 600 × 465 mm
• Size: 19"
• Maximum load: 40 kg
• IP rating: IP20
• Colour: Grey

How to use

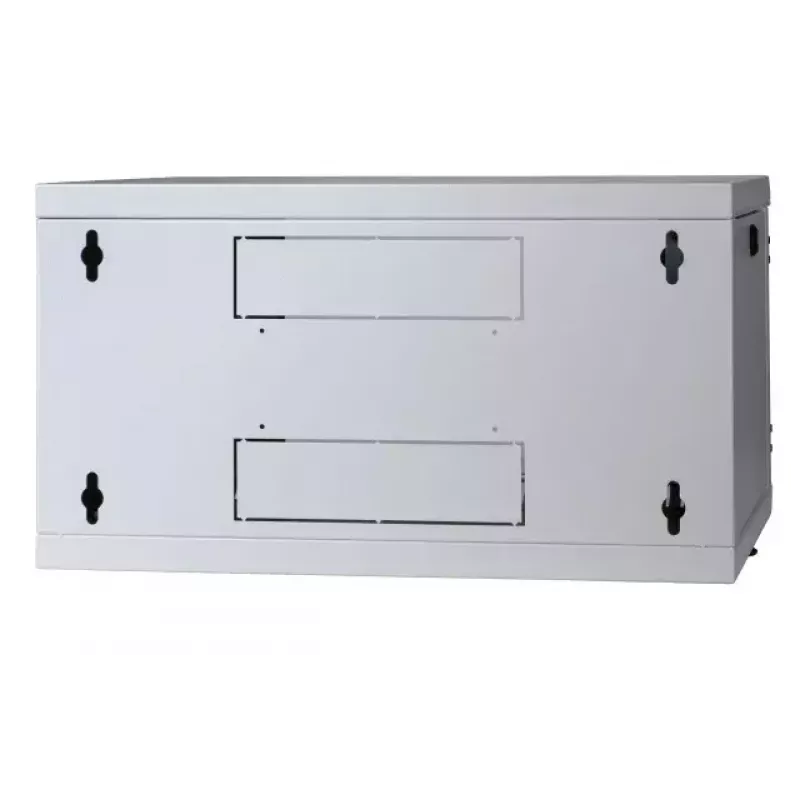

Mount the rack to a suitable load-bearing wall using appropriate fixings rated for the combined weight of the cabinet and installed equipment. Install 19" equipment into the 9U rack using standard cage nuts or mounting hardware. Use the rear-sided swing-frame to swivel the front part of the housing for access during installation and maintenance. Ensure adequate cable routing and leave clearance for ventilation.

Recommendations

Install the unit indoors in an environment within the IP20 protection scope, avoid exposure to moisture and dust, and do not exceed the stated 40 kg load. For safety and stability, follow local mounting standards and use fasteners appropriate for your wall material.
