Wandplaat-moduleframe DELOCK Easy 45, 2x keystone-houders, 45×45 mm

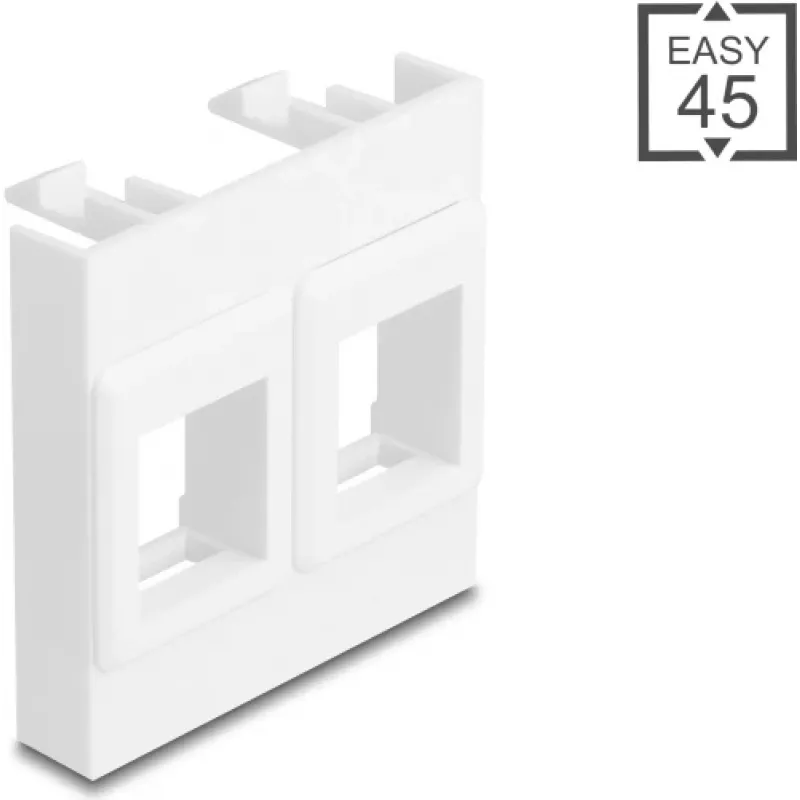

DELOCK Easy 45 module frame with two keystone holders provides a compact mounting solution for standard keystone inserts. Each module position measures 45×45 mm and the frame accepts two keystone modules side by side, enabling neat organisation of network, audio or AV connectors in wall plates, patch panels or custom installations. The design ensures secure seating of keystone jacks and a tidy cable outlet suitable for professional and home environments.

Advantages

The module frame is compatible with common keystone inserts and offers a stable mounting platform resistant to everyday handling. Its dual-holder layout minimises wall space while allowing flexible combination of connectors such as RJ45, RCA, HDMI or audio jacks. The 45×45 mm format facilitates integration into modular plates and patch panels, and the robust plastic construction delivers reliable mechanical support and alignment for installed modules.

Suitable for

• Home and office network wall plates
• Patch panels and structured cabling installations
• AV and multimedia connector arrangements
• Custom enclosures and furniture mounting

Key specifications

• Format: two module positions, each 45×45 mm
• Compatibility: standard keystone inserts
• Material: durable plastic construction
• Mounting: designed for wall plate and patch panel integration
• Orientation: side-by-side arrangement for two keystone modules

How to use

Insert standard keystone jacks into each holder until they click into place, ensuring the connector faces are flush with the frame surface. Secure the assembled frame into a compatible wall plate or patch panel opening following the host plate’s mounting method, then route and terminate cables to the installed keystone modules. Verify seating and alignment of connectors before finalising the wall plate installation to ensure reliable connections and correct cable strain relief.

Recommendations

For best results, match keystone insert depth and latch types to the frame and host plate. Use the frame in compatible 45×45 mm modular faceplates and avoid forcing non-standard modules into the holders. When installing network or AV connectors, follow recommended cable termination and testing procedures to ensure correct signalling and durable connections.
