Wandschakelaar montageframe Sonoff M5-80 voor M5-F4 viervoudig ontwerp

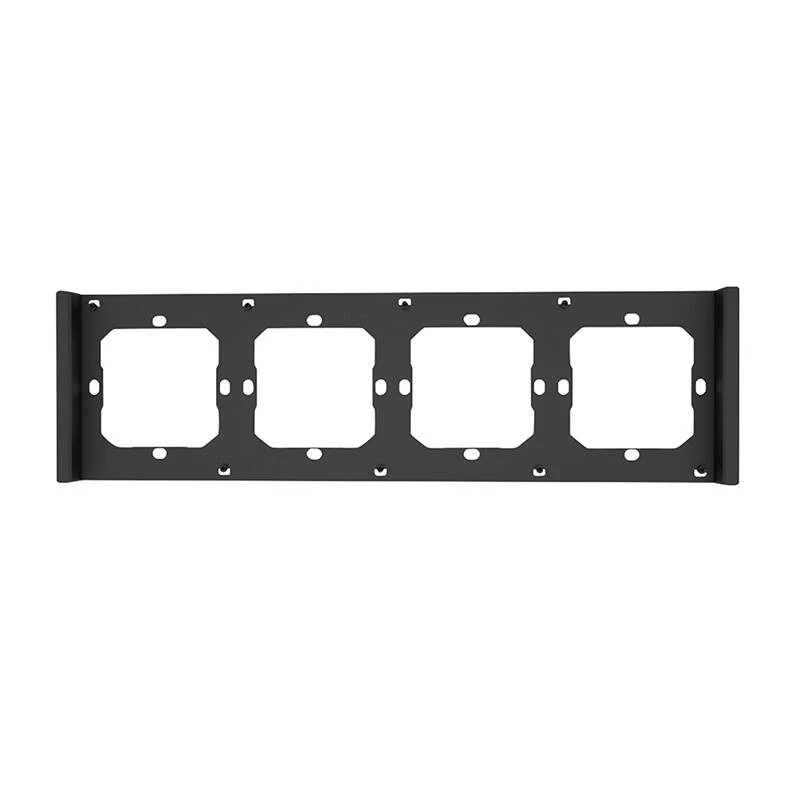

Wall switch mounting frame Sonoff M5-80 designed for M5-F4 quadruple layout. Provides a reliable frame for installing four-module Sonoff M5-F4 wall switches, ensuring proper alignment and secure fixation in the wall opening. Made of V0 fire-retardant PC material and finished in black for a discreet appearance.

Advantages

The Sonoff M5-80 mounting frame is molded from PC with V0 safety class, offering flame-retardant properties for safer installations. Its dimensions and cutouts match Sonoff M5-F4 quadruple switches to ensure accurate positioning and stable fixation. The black finish helps integrate the frame into common interior designs without visible seams or gaps.

Suitable for

• Mounting Sonoff M5-F4 four-gang wall switches
• Standard single-module wall openings adapted to quadruple layout
• Renovation or new installations requiring a neat four-switch arrangement

Key specifications

• Compatibility: Sonoff M5-80 (for M5-F4)
• Material: PC (polycarbonate), V0 flame-retardant
• Safety class: V0
• Dimensions: 299 x 86 x 14.8 mm
• Color: Black
• Brand / MPN: Sonoff / M5-F4
• EAN: 6920075777154

How to use

Place the frame into the prepared wall opening aligned with the electrical box and secure it according to local mounting practices. Insert the Sonoff M5-F4 switch modules into the frame cutouts, verify alignment and fixation, and complete the electrical connections following the switch manufacturer’s installation instructions. Ensure the frame is flush with the wall surface and fasteners are tightened evenly to avoid deformation.

Recommendations

Use this frame only with compatible Sonoff M5-F4 modules. Observe local electrical codes and turn off power before installation. Inspect the frame for damage before mounting and do not modify the material in ways that could reduce its flame-retardant properties.
