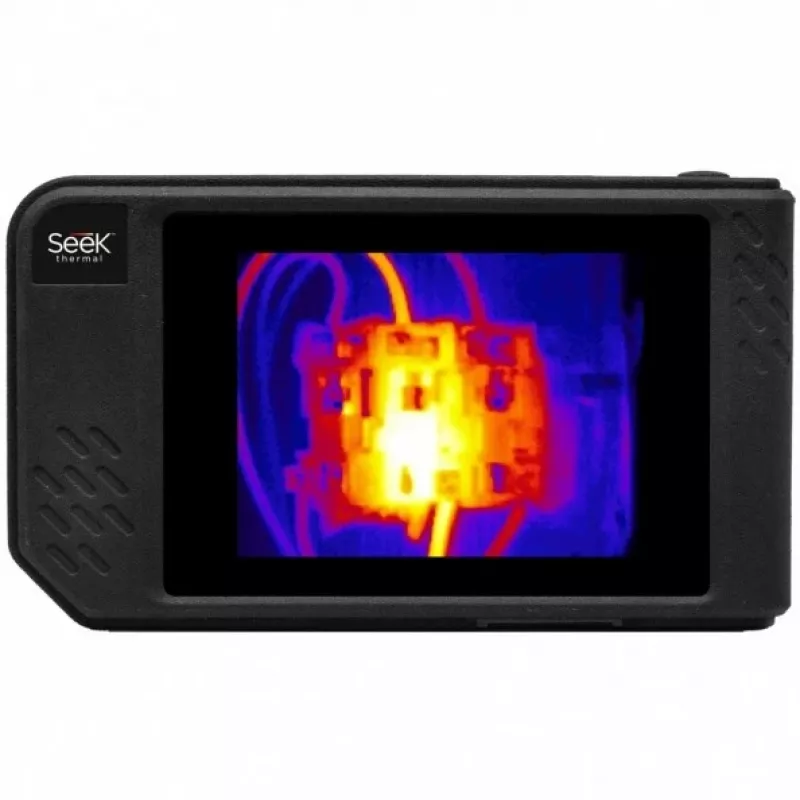

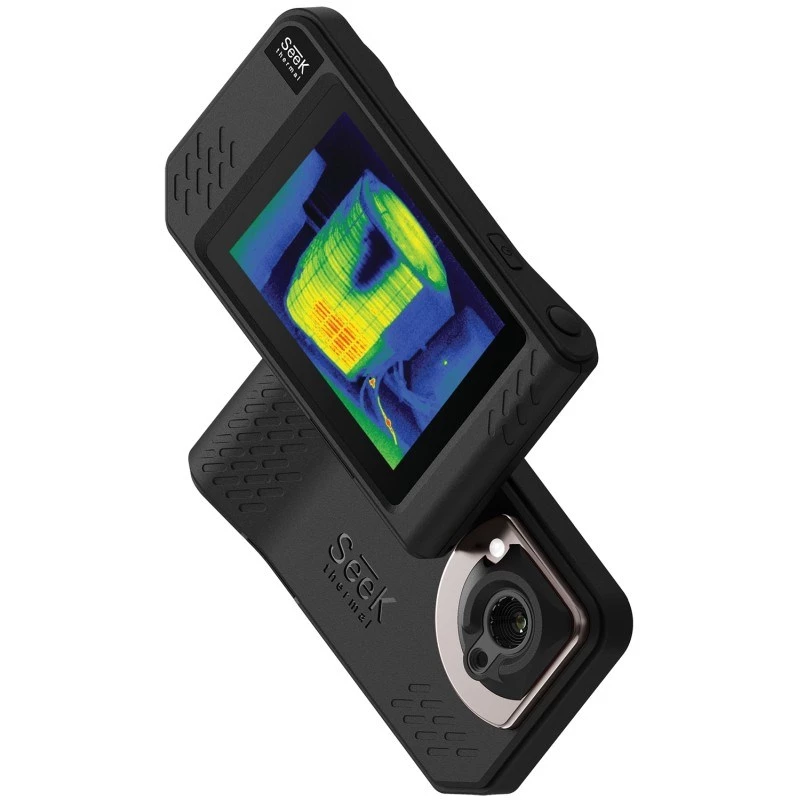

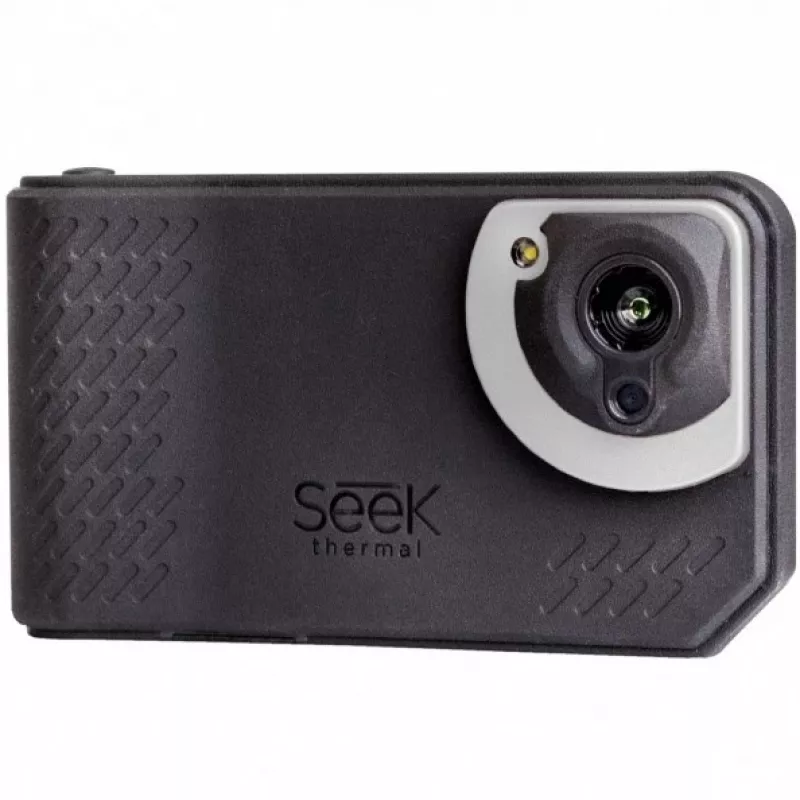

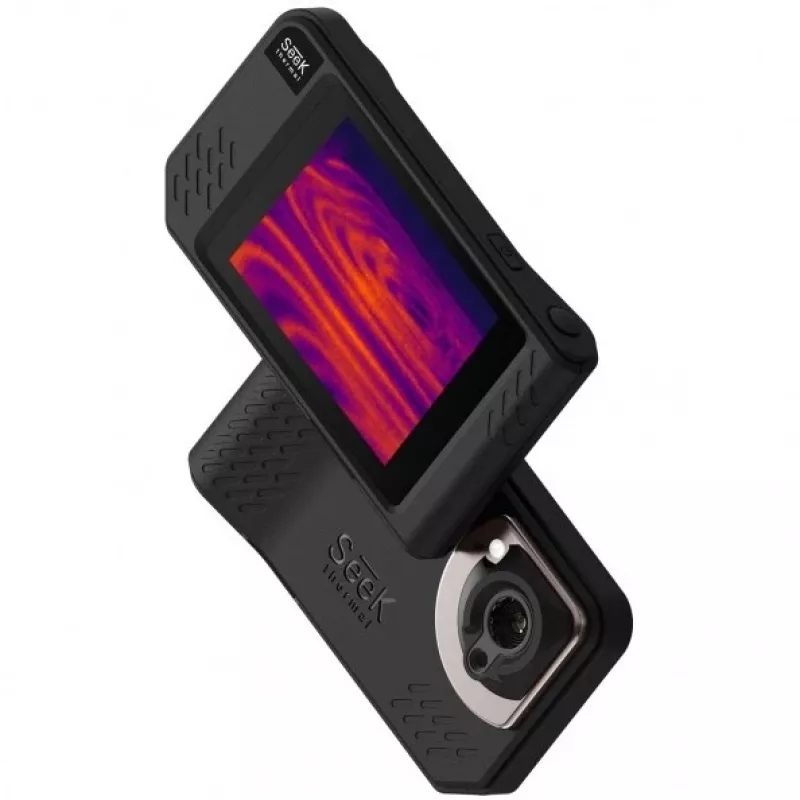

Warmtebeeldcamera Seek Thermal SW-AAA

The Seek Thermal SW-AAA is a compact thermal imaging camera designed for construction and maintenance professionals. It captures thermal images with a 206 x 156 bolometric sensor, a 36° field of view and measures temperatures from -40 °C to +330 °C. The device includes a 3.5" built-in color touchscreen, integrated tripod mount and Wi‑Fi streaming for quick reporting and on‑site analysis.

Advantages

SeekFusion™ image blending improves detail by combining thermal data with visible‑light information. On‑device analysis tools let you add spot measurements and temperature areas, change color palettes and generate inspection documentation without leaving the field. The unit is compact, rubber‑coated for a secure grip, rated IP54 for outdoor use and provides up to 4 hours of battery life.

Suitable for

• Detecting leaks in piping and underfloor heating systems

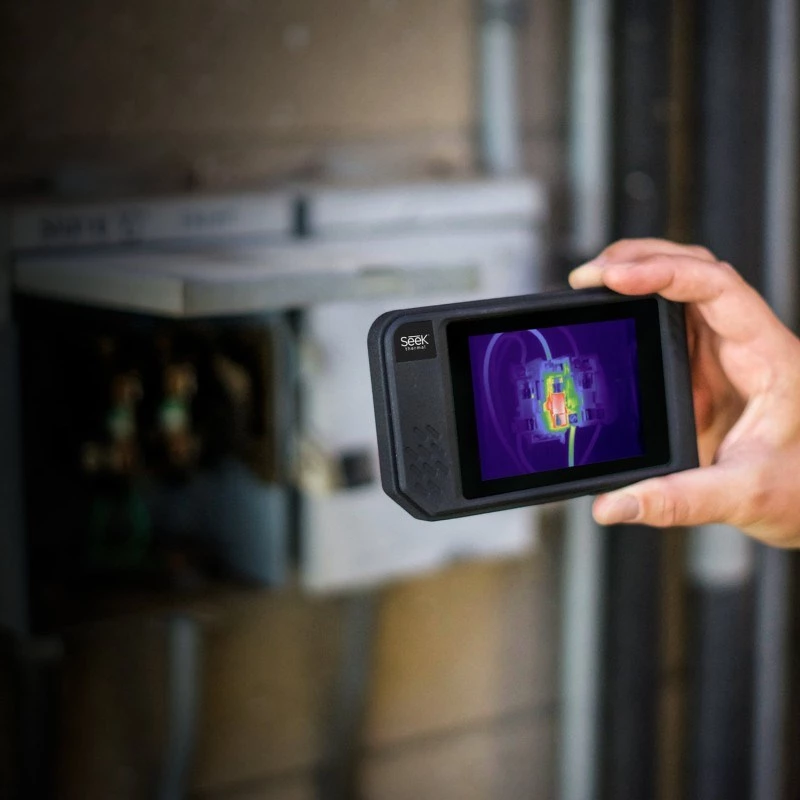

• Finding electrical faults, hot spots and short circuits

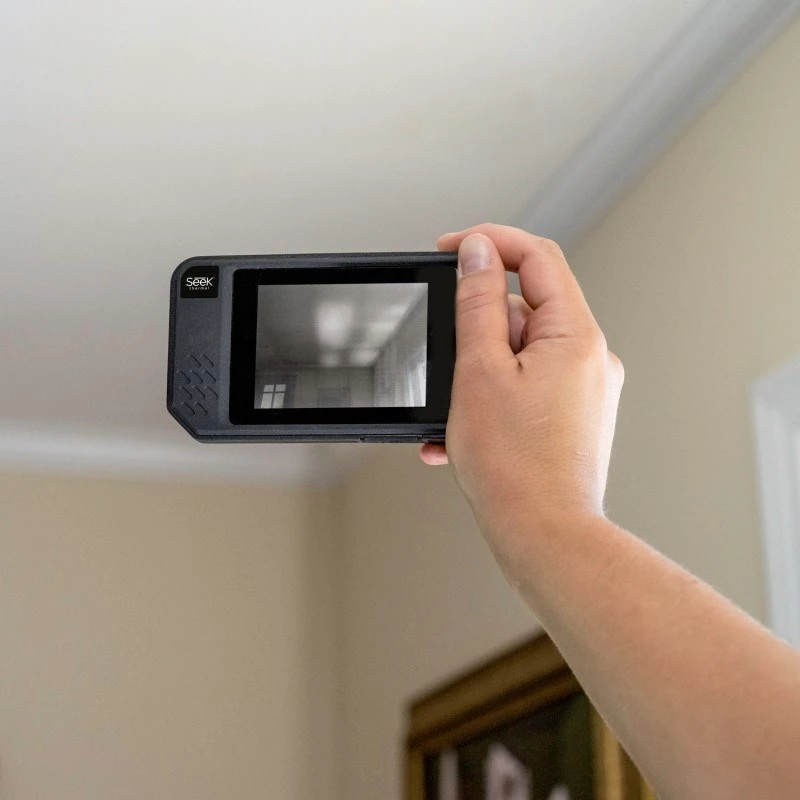

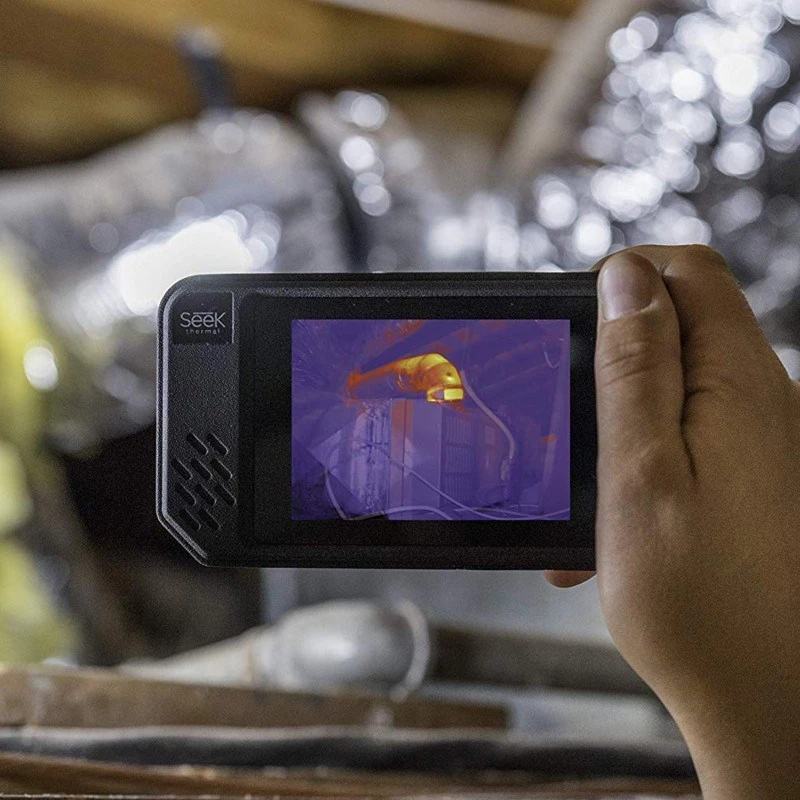

• Inspecting insulation and energy loss in buildings

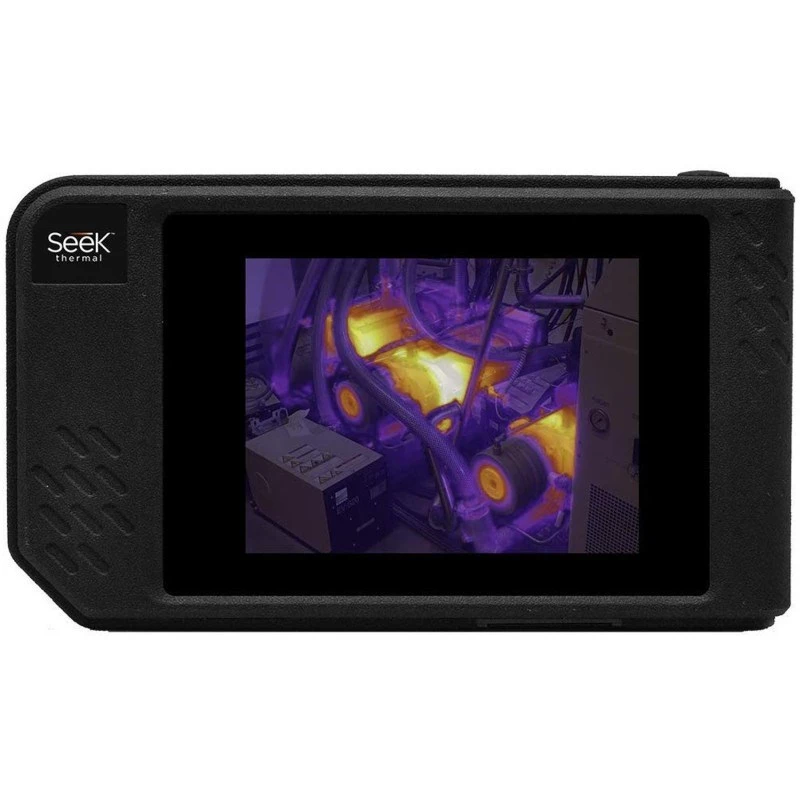

• Monitoring mechanical components and preventative maintenance
• Field documentation and rapid reporting via smartphone or tablet

Key specifications

• Sensor resolution: 206 x 156 pixels (bolometric)
• Field of view (FOV): 36°
• Detectable temperature range: -40 °C to +330 °C
• Thermal sensitivity: 70 mK
• Refresh rate: 9 Hz
• Microbolometer: VOx (Vanadium Oxide), infrared range 7.5–14 µm
• Display: 3.5" color capacitive touchscreen, 648 x 480 px
• Built‑in memory: 4 GB for photos and videos
• Battery: Li‑Poly 3.7 V, up to 4 hours operation
• Connectivity: Wi‑Fi (SeekView streaming), USB‑C for data and charging
• Protection class: IP54, built‑in tripod mount (1/4" thread)
• Dimensions / Weight: 140 x 80 x 28 mm / 205 g
• Included: wrist strap, USB‑C cable, user guide (EN/FR/DE)

How to use

Power on the camera and allow the sensor to stabilize. Use the large touch display to switch between photo and video modes, select color palettes and add spot measurements or temperature areas directly on the captured image. For enhanced detail, adjust the SeekFusion™ blending level to combine the thermal image with the visible image. Mount the camera on a tripod via the 1/4" thread for continuous monitoring or difficult‑to‑reach inspections.

Recommendations

For accurate readings, allow the camera to acclimate to the inspection environment before taking measurements, set the correct emissivity preset for the surface being measured and use spot or area measurements to document minimum, maximum and average temperatures. Stream images to the SeekView app over Wi‑Fi to create immediate reports on a smartphone or tablet.
