Waterleksensor Sonoff SNZB-05P Zigbee 3.0 – draadloze detector voor vocht en overstroming

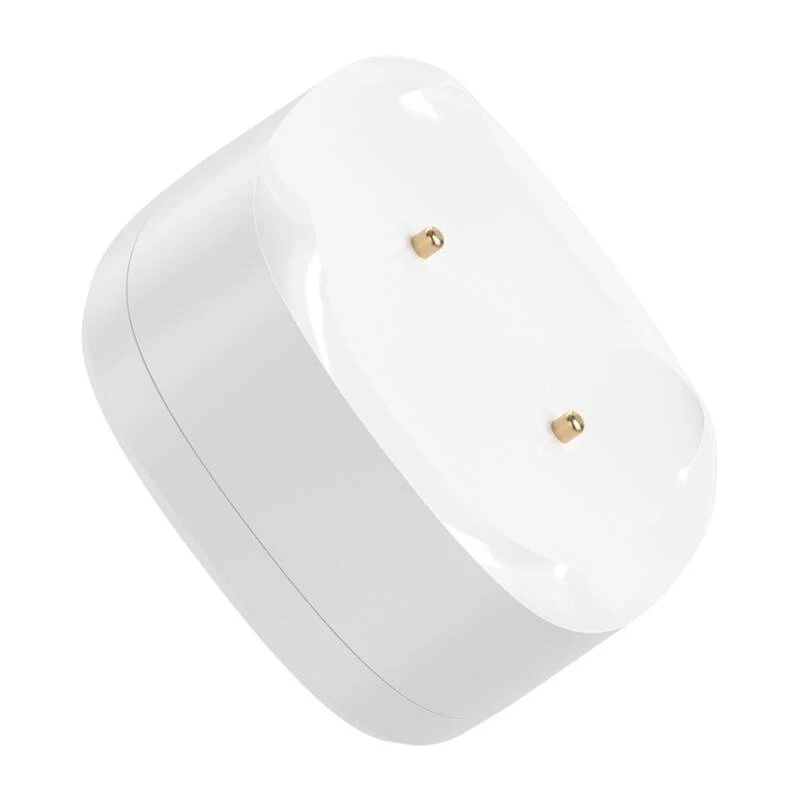

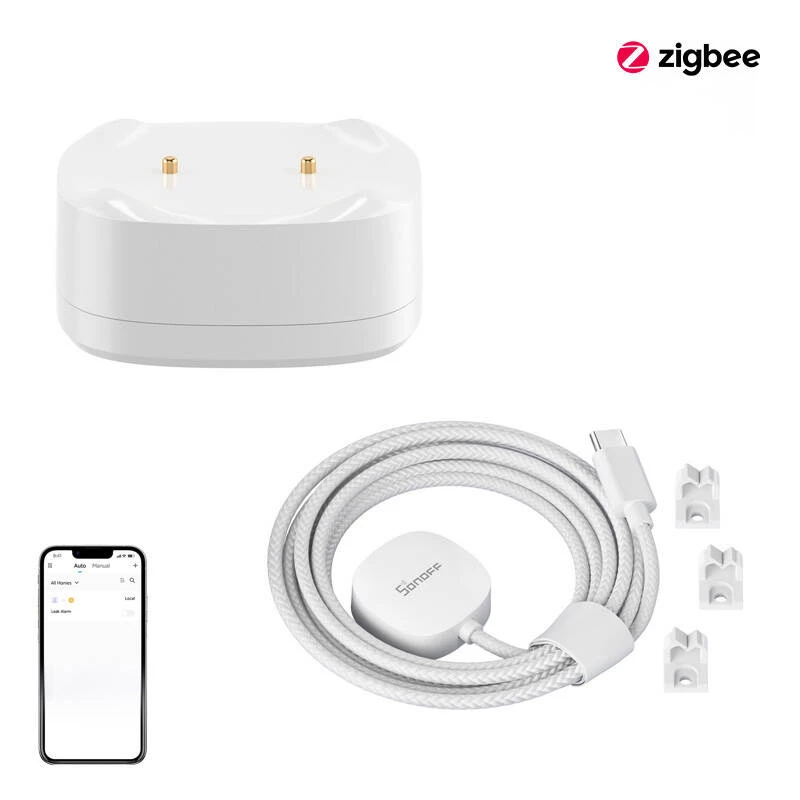

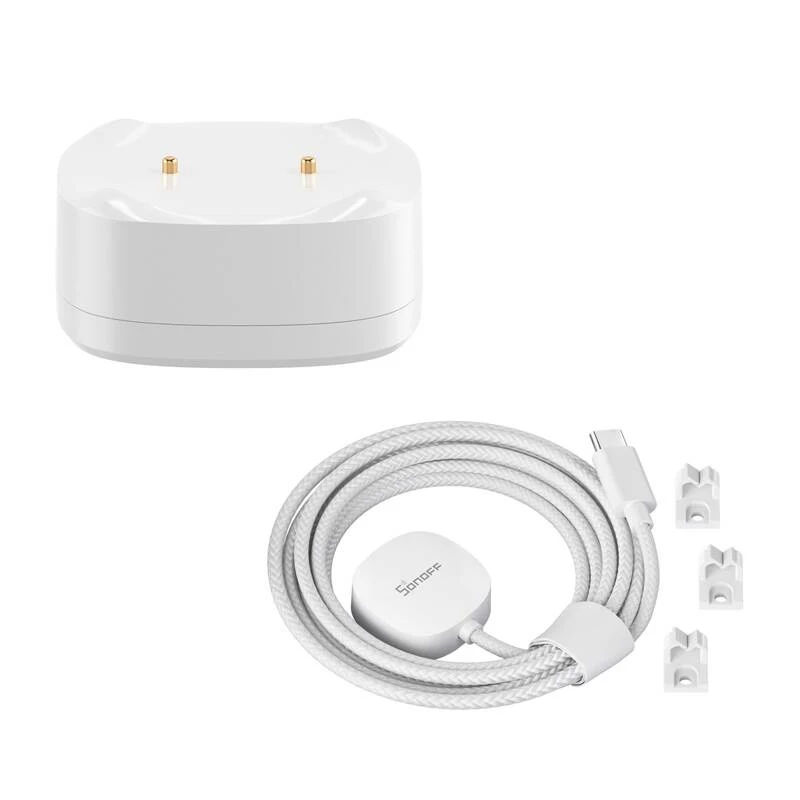

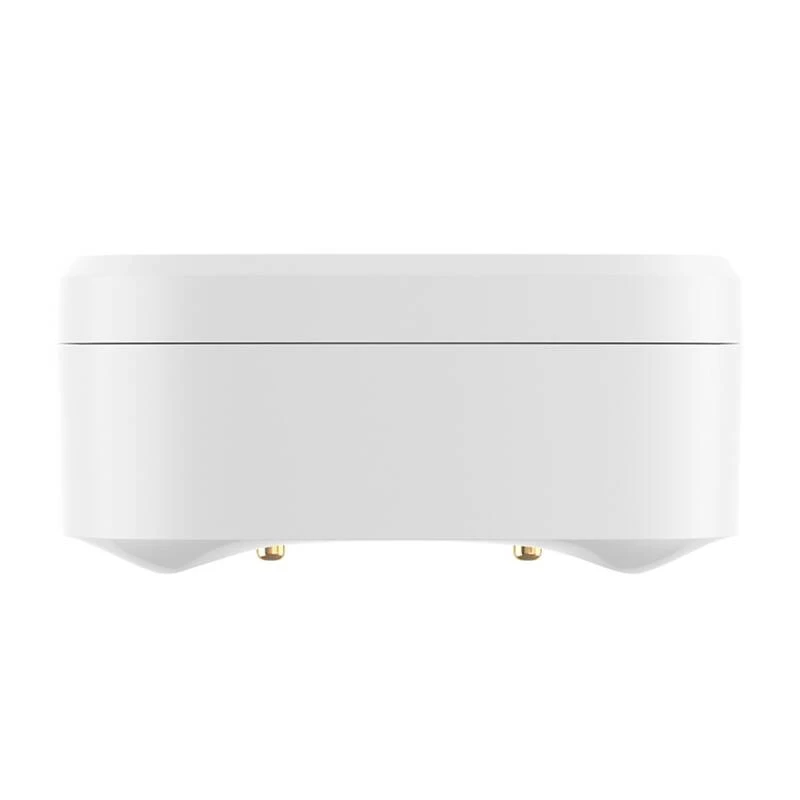

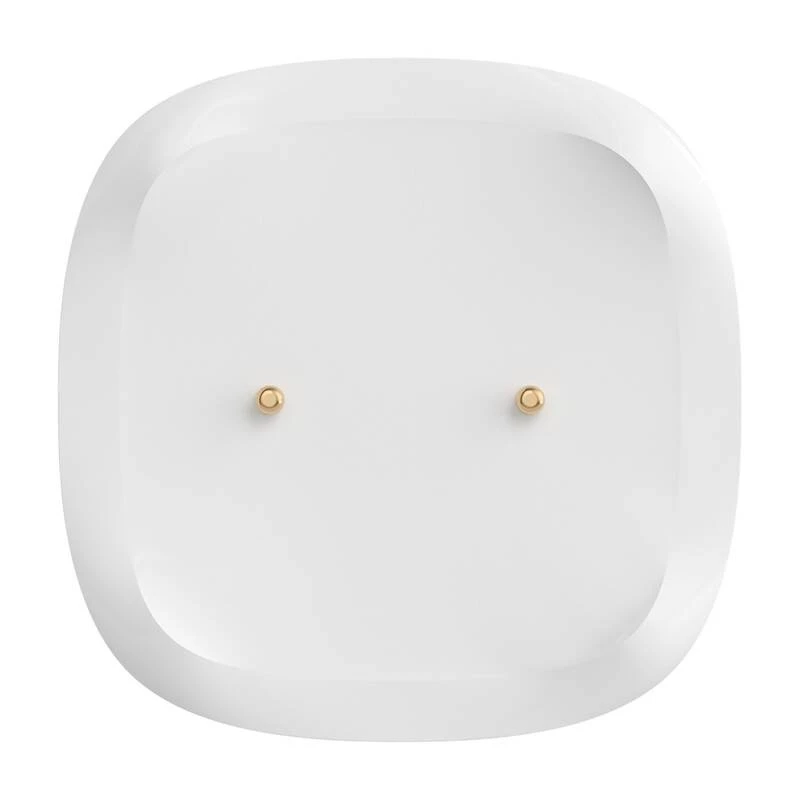

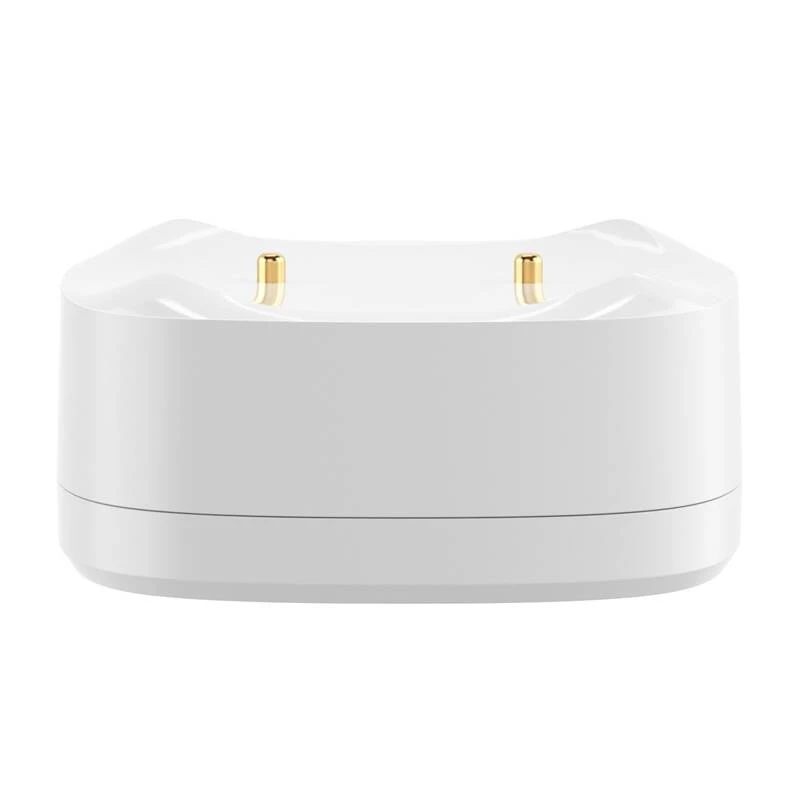

SONOFF SNZB-05P ZigBee flood/water leak sensor kit with WLDC200 cable provides reliable detection of water leaks and flooding. The SNZB-05P sensor uses ZigBee 3.0 communication and features gold-plated probes and IP67 protection for corrosion resistance and operation in wet environments. The included WLDC200 2 m extension cable expands sensing reach to hard-to-reach locations such as basements, under HVAC equipment or around water heaters, enabling timely detection of small leaks.

Advantages

The kit combines a high-precision SNZB-05P sensor with a WLDC200 extension cable to deliver extended monitoring range and flexible installation. The sensor detects water levels from 0.5 mm, offers up to five years of battery life on the included CR2477 battery, and supports long-range ZigBee communication. IP67 housing and gold-plated probes increase reliability in damp or corrosive conditions. Integration with popular smart home platforms and eWeLink notifications ensures remote alerts and centralized control.

Key specifications

• Sensor model: SNZB-05P
• Communication protocol: ZigBee 3.0
• Power supply: CR2477 3V battery (included)
• Battery life: Up to 5 years
• Detection sensitivity: Water level from 0.5 mm
• Protection class: IP67 (waterproof and dustproof)
• Communication range: 130 m (in open space)
• Supported platforms: Amazon Alexa, Google Home, SmartThings, IFTTT; Home Assistant via ZHA or Zigbee2MQTT
• WLDC200 cable length: 2 m
• WLDC200 material: PC, ABS
• Operating temperature (sensor/cable): -10°C ~ 60°C
• Sensor dimensions: 48 x 48 x 21.6 mm; sensor weight: 45 g; cable weight: 32 g
• Package contents: SNZB-05P sensor, WLDC200 extension cable, 3 cable clamps, instruction manual

How to use

Install the SNZB-05P sensor in the area to be monitored and connect the WLDC200 cable to extend the sensing point to remote or concealed locations. Pair the sensor with a ZigBee gateway or compatible hub, then add it to the eWeLink app or your chosen smart home platform. Place the probe contacts where leaks are most likely to appear; use the supplied clamps to secure the cable. Configure notifications in the app to receive push alerts, audio alarms via a ZigBee gateway and optional email alerts (requires eWeLink Advanced subscription). Regularly check battery status in the app and replace the CR2477 battery when indicated.

Recommendations

The kit is suitable for homes and industrial sites where early leak detection is required; for larger areas, connect WLDC200 cables in series as needed and keep probes clear of heavy debris. Maintain periodic inspections of cable routing and probe contacts to ensure reliable operation.
