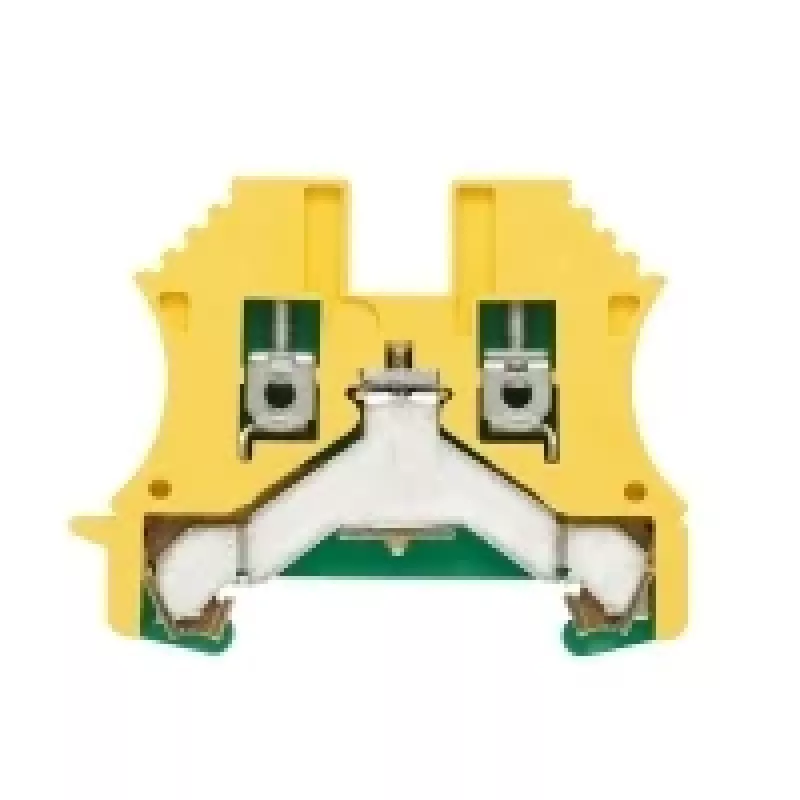

Weidmüller 1010000000 schroefklemmenblok, 2,5 mm², 800 V, 24 A, donkerbeige

The Weidmüller 1010000000 is a high-quality screw connection terminal block designed for reliable and secure electrical connections. With a rated cross-section of 2.5 mm² and a rated voltage of 800 V, it is suitable for a wide range of industrial applications. The terminal block features a compact design with dimensions of 5.1 mm width, 46.5 mm height, and 60 mm depth, making it ideal for space-saving installations on DIN rail TS 35.

Advantages

This terminal block offers easy and tool-free wiring with a screw connection that ensures a secure and vibration-resistant contact. The Wemid insulation material provides excellent thermal and mechanical properties, while the V-0 flammability rating ensures high safety standards. The operating temperature range from -50 °C to +120 °C allows use in harsh environments.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine building

Key specifications

• Connection Technology: Screw Connection
• Number of Connections: 2
• Number of Potentials: 1
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Rated Cross-section (IEC): 2.5 mm²
• Conductor Cross-section (Solid): 0.5 - 4 mm²
• Conductor Cross-section (Stranded): 0.5 - 4 mm²
• Conductor Cross-section (Fine-stranded): 0.5 - 4 mm²
• AWG Range: 24 - 12 AWG
• Wire Stripping Length: 10 mm
• Tightening Torque: 0.4 - 0.8 Nm
• Insulation Material: Wemid
• Colour: Dark Beige
• Mounting Type: DIN Rail TS 35
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating (UL 94): V-0
• Pollution Degree: 3
• Overvoltage Category: III
• Approvals: CE, cURus, KEMA, EAC, ATEX, IECEx, DNV GL, LR, RINA, ABS, BV, CCS, KR, NK, PRS, RS

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. This terminal block is part of the Weidmüller range, known for reliability and innovation in electrical connectivity.
