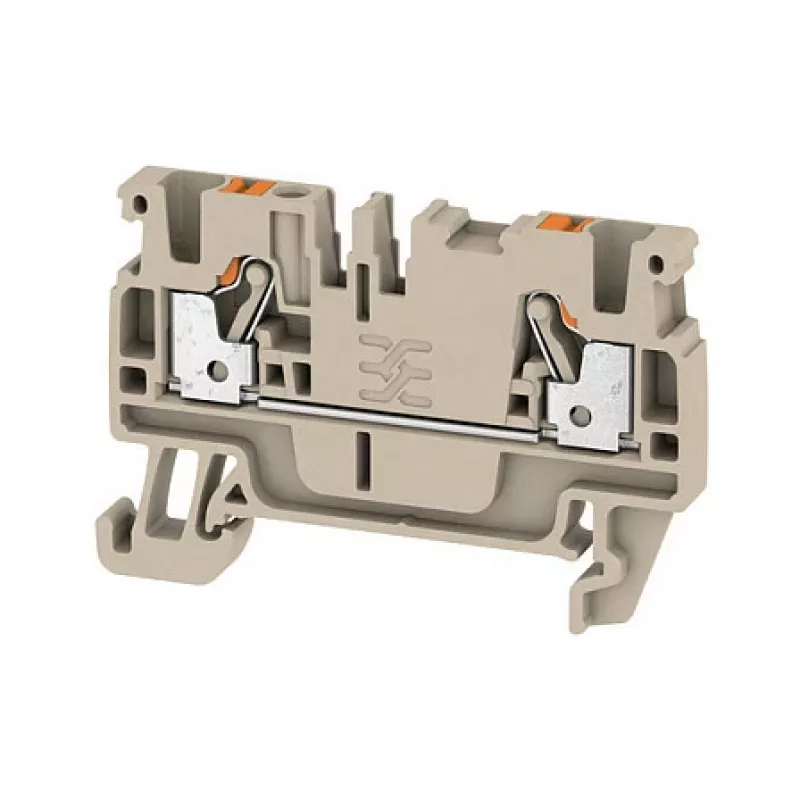

Weidmüller A2C 2.5 doorvoerklem PUSH IN 2,5mm² 1521850000

The Weidmüller A2C 2.5 feed-through terminal block is a high-quality component designed for reliable electrical connections in industrial applications. With PUSH IN connection technology, it enables fast and tool-free wiring, saving time and effort during installation. This terminal block is rated for 800 V and 24 A, making it suitable for a wide range of control and distribution systems.

Advantages

PUSH IN technology allows for quick and secure wire termination without the need for special tools. The compact design saves space on the DIN rail, and the Wemid insulation material provides excellent thermal and mechanical properties. The terminal block is approved by multiple international standards, ensuring safety and reliability.

Suitable for

• Industrial control cabinets
• Building automation
• Power distribution systems
• Machine wiring

Key specifications

• Connection Technology: PUSH IN
• Nominal Cross-Section: 2.5 mm²
• Number of Connections: 2
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Wire Size Solid: 0.5 - 4 mm²
• Wire Size Stranded: 0.5 - 4 mm²
• Wire Size with Ferrule: 0.5 - 2.5 mm²
• Stripping Length: 10 mm
• Mounting Type: TS 35 DIN Rail
• Color: Dark Beige
• Insulation Material: Wemid
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Flammability Rating (UL 94): V-0
• Approvals: cULus, KEMA-KEUR, EAC, DNV GL, ATEX, IECEx

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper stripping length. This terminal block is ideal for applications requiring high reliability and ease of wiring.
