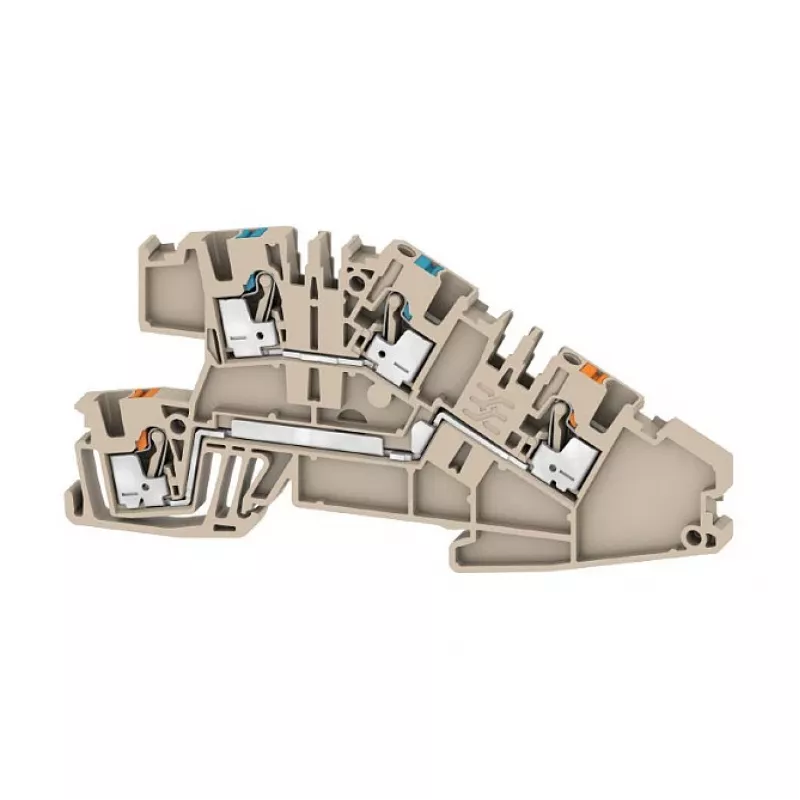

Weidmüller AITB 2.5 BB N-L doorvoerklem, blauw, schroefaansluiting, 500V, 24A, 2,5 mm², DIN-rail

The Weidmüller AITB 2.5 BB N-L is a high-quality feed-through terminal block designed for reliable electrical connections in industrial installations. With a rated voltage of 500 V and a rated current of 24 A, it is suitable for a wide range of applications. The terminal block features a screw connection technology and accepts wire sizes from AWG 26 to AWG 12, with a rated cross-section of 2.5 mm². It is mounted on a DIN rail TS 35 and has a compact design with 3 connections and 1 potential.

Advantages

This terminal block offers secure and durable connections thanks to its robust screw clamping mechanism. The insulating material Wemid provides excellent thermal and electrical insulation, with a flammability rating of V-0 according to UL94. The blue colour coding helps in easy identification of neutral conductors. It operates reliably in a wide temperature range from -50 °C to +120 °C and is suitable for pollution degree 3 and overvoltage category III environments.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution and wiring
• Machine and plant engineering

Key specifications

• Connection Technology: Screw Connection
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 24 A
• Rated Cross-section (IEC): 2.5 mm²
• Wire Size (AWG): AWG 26 - AWG 12
• Number of Potentials: 1
• Number of Connections: 3
• Mounting Type: DIN Rail TS 35
• Colour: Blue
• Insulating Material: Wemid
• Flammability Rating (UL94): V-0
• Operating Temperature: -50 °C to +120 °C
• Stripping Length: 10 mm
• Clamping Screw Torque: 0.4 - 0.8 Nm
• Pollution Degree: 3
• Overvoltage Category: III
• Product Type: Feed-through Terminal Block
• Approvals: cULus

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure proper torque settings as specified. Always follow local electrical codes and regulations.
