Weidmüller doorvoerklem, schroefaansluiting, 4 mm², 32 A, 800 V, beige, DIN-railmontage, 100 stuks

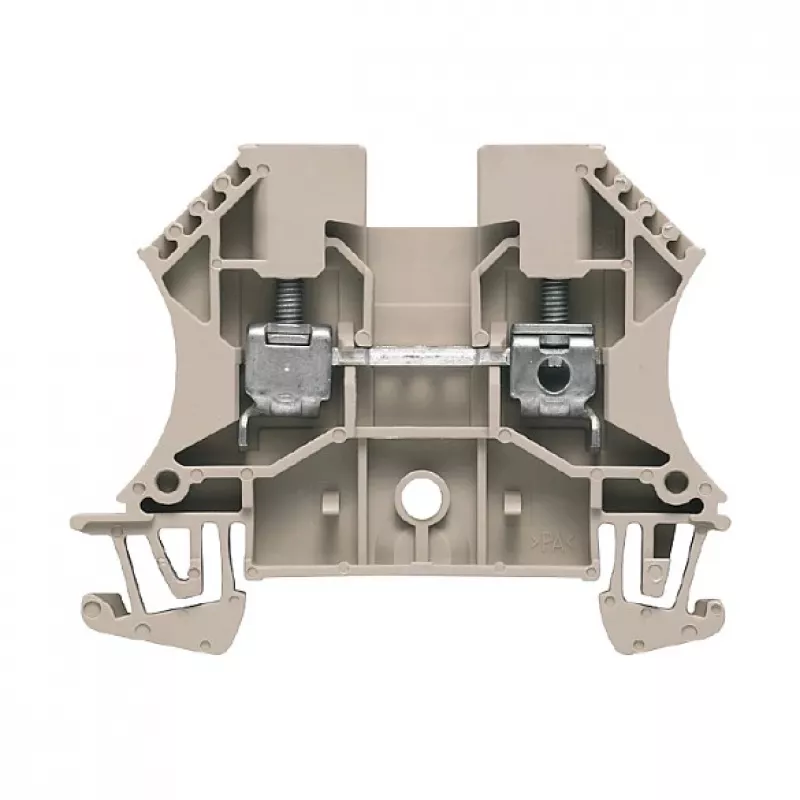

The Weidmüller 1020100000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections in industrial applications. With a nominal cross-section of 4 mm² and a rated current of 32 A, this terminal block is suitable for a wide range of wiring tasks. The screw connection technology ensures a firm and durable contact, while the beige Wemid insulating material provides excellent thermal and electrical insulation. This terminal block is designed for DIN rail mounting (TS 35) and comes in a convenient pack of 100 pieces, making it ideal for large-scale installations.

Advantages

• Reliable screw connection for secure and maintenance-free wiring
• Compact design saves space on the DIN rail
• Wide operating temperature range from -50 °C to +120 °C for use in harsh environments
• High pollution degree (3) and overvoltage category (III) ensure safety in industrial settings
• Easy installation with recommended torque of 0.6-1.0 Nm

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution and junction boxes
• Machine and plant engineering

Key specifications

• Terminal Block Type: Feed-Through
• Connection Technology: Screw Connection
• Nominal Cross-section: 4 mm²
• Rated Current (IEC): 32 A
• Rated Voltage (IEC): 800 V
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail (TS 35)
• Color: Beige
• Insulating Material: Wemid
• Operating Temperature Range: -50 °C to +120 °C
• Stripping Length: 10 mm
• Clamping Range (Solid/Stranded): 0.5 - 6 mm²
• Recommended Torque: 0.6 - 1.0 Nm
• Pollution Degree: 3
• Overvoltage Category: III
• Packaging Unit: 100 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Always follow local electrical codes and regulations.
