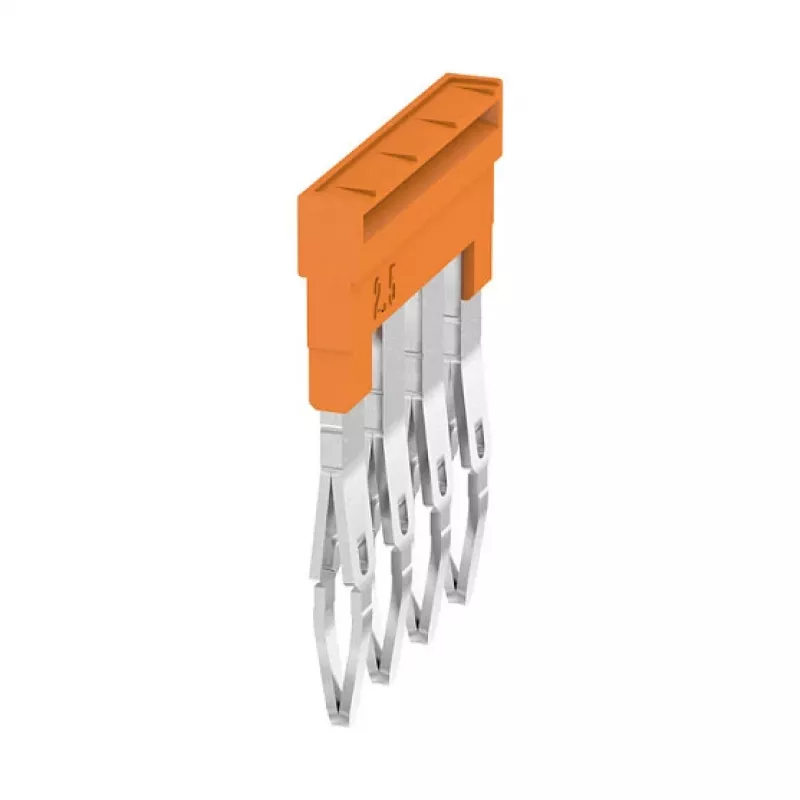

Weidmüller Z-serie dwarsverbinder 4-polig ZQV 2.5N/4

The Weidmüller Z-Series Cross-Connector ZQV 2.5N/4 is a high-quality 4-pole jumper bar designed for potential distribution and bridging in terminal block applications. Manufactured by Weidmüller, a leader in industrial connectivity, this cross-connector ensures reliable electrical connections and easy installation.

Advantages

This cross-connector simplifies wiring by allowing multiple terminal blocks to be connected in parallel, reducing installation time and material costs. Its compact design saves space in control cabinets, and the push-in connection technology ensures fast and secure wiring without tools. The robust WEMID insulation material provides excellent thermal and mechanical resistance, ensuring long-term performance in demanding environments.

Suitable for

• Industrial control panels and automation systems
• Power distribution and signal bridging in terminal blocks
• Applications requiring reliable potential distribution in confined spaces

Key specifications

• Number of Poles: 4
• Compatible Terminal Block Series: Weidmüller Z-Series
• Nominal Cross-Section: 2.5 mm²
• Rated Voltage: 800 V
• Rated Current: 24 A
• Connection Type: Plug-in / Push-in
• Pitch: 5.1 mm
• Insulation Material: WEMID (Polyamide)
• Colour: Dark Beige
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating: UL 94 V-0
• Approvals: CE, RoHS, cURus
• Mounting Position: Horizontal
• Function: Potential Distribution / Bridging
• Length: 20.4 mm

Recommendations

For optimal performance, use this cross-connector with Weidmüller Z-Series terminal blocks. Ensure proper installation according to manufacturer guidelines to maintain rated electrical specifications.
