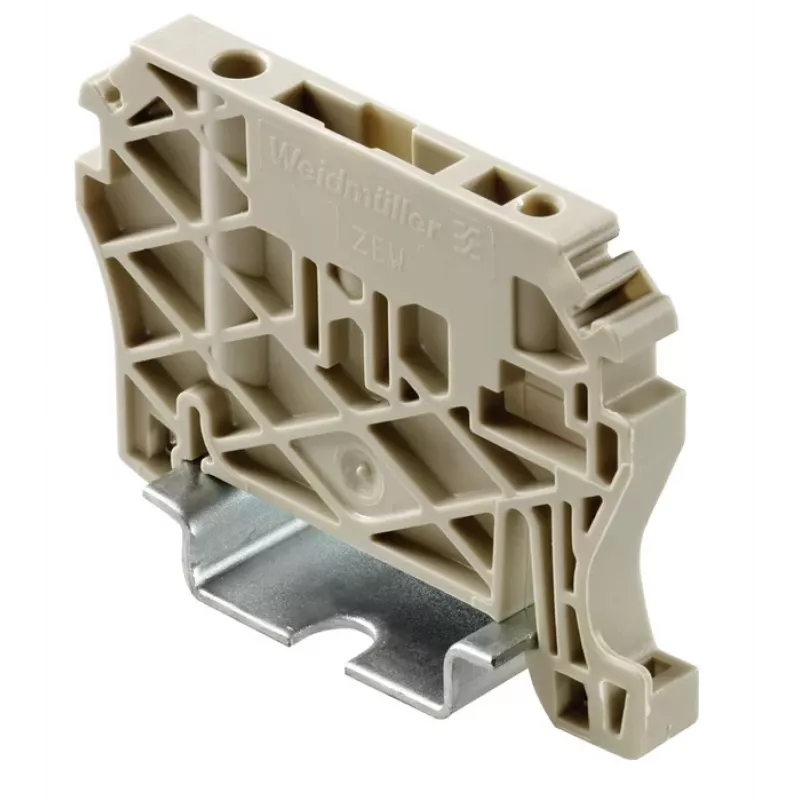

Weidmüller ZEW 35 eindbeugel - 20 stuks - Wemid - beige - -50 tot 100 °C - V2

The Weidmüller ZEW 35 End Bracket is a high-quality accessory designed to secure terminal blocks on DIN rail TS 35. Made from durable Wemid (Polyamide 66) material, this end clamp ensures reliable fixation and long-lasting performance in industrial environments. The beige color and compact dimensions (9.5 mm width, 47 mm height, 47 mm depth) make it easy to integrate into existing setups. With a wide operating temperature range of -50 to 100 °C and UL 94 V-2 flammability rating, it is suitable for demanding applications. The package includes 20 pieces, providing excellent value for bulk installations.

Advantages

This end bracket offers secure mounting of terminal blocks, preventing movement and ensuring stable electrical connections. Its halogen-free and RoHS/REACH compliant construction supports environmental and safety standards. The Wemid material provides high mechanical strength and thermal resistance, making it ideal for use in control cabinets and automation systems.

Suitable for

• Securing terminal blocks on DIN rail TS 35 in industrial control panels
• Use in automation, power distribution, and electrical installations
• Applications requiring high temperature resistance and mechanical stability

Key specifications

• Product Type: End Bracket / End Clamp
• Series: ZEW
• Material: Wemid (Polyamide 66)
• Color: Beige
• Mounting Type: DIN Rail TS 35
• Operating Temperature Range: -50 to 100 °C
• Flammability Rating: UL 94 V-2
• Width: 9.5 mm
• Height: 47 mm
• Depth: 47 mm
• Packaging Unit: 20 pieces
• Standards: IEC 60947-7-1
• Halogen-free: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommendations

For optimal performance, use the ZEW 35 end bracket with compatible Weidmüller terminal blocks and DIN rail accessories. Ensure proper installation to maintain secure fixation and electrical safety.
