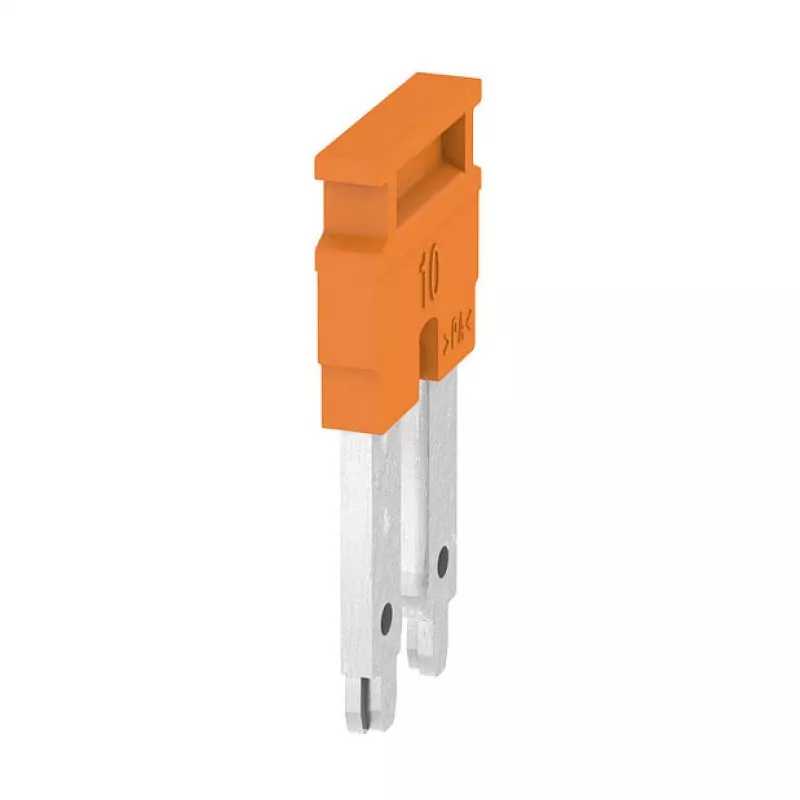

Weidmüller ZQV 10N/2 dwarsverbinder, 2-polig, oranje, 1000V, 57A

The Weidmüller ZQV 10N/2 is a high-quality cross-connector designed for bridging adjacent terminal blocks in industrial control systems. This 2-pole connector is part of the ZQV 10N series and is compatible with a wide range of Weidmüller terminal blocks, including WDU 10, WDU 16, WDU 35, and WDU 50N. It offers reliable electrical connections with a rated voltage of 1000 V and a rated current of 57 A, making it suitable for demanding applications.

Advantages

• Easy plug-in installation without tools
• Compact design saves space on the DIN rail
• High current and voltage ratings for industrial use
• Robust polyamide 66 housing with UL 94 V-0 flammability rating
• RoHS and REACH compliant for environmental safety

Suitable for

• Bridging terminal blocks in control cabinets
• Power distribution in automation systems
• Industrial electrical installations requiring reliable connections

Key specifications

• Number of Poles: 2
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 57 A
• Colour: Orange
• Pitch: 10.2 mm
• Insulation Material: Polyamide 66 (PA 66)
• Contact Material: Copper alloy
• Connection Type: Plug-in
• Flammability Rating: UL 94 V-0
• Operating Temperature: -50 °C to +100 °C
• Pollution Degree: 3
• Mounting: Direct plug-in to terminal block
• Series: ZQV 10N

Recommendations

For optimal performance, use with Weidmüller WDU series terminal blocks. Ensure proper installation by plugging the cross-connector firmly into the terminal block slots. This product is ideal for creating potential bridges in control systems.
