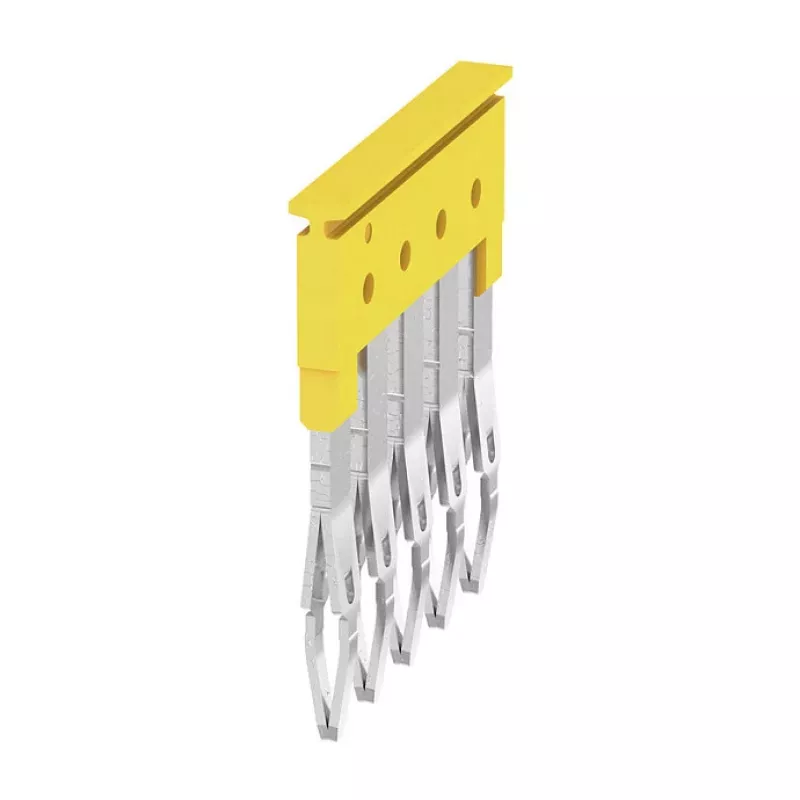

Weidmüller ZQV 2.5/5 dwarsverbinder, geel, 5-polig, 24 A, 800 V, 2,5 mm²

The Weidmüller ZQV 2.5/5 is a high-quality cross-connector designed for potential distribution in terminal blocks. With 5 poles and a rated current of 24 A, it ensures reliable electrical connections in industrial applications. The yellow Wemid housing provides excellent insulation and durability.

Advantages

Easy plug-in mounting saves installation time. The compact design with a pitch of 5.1 mm allows for space-saving wiring. Rated voltage up to 800 V and wide operating temperature range from -50 °C to +100 °C make it suitable for demanding environments.

Suitable for

• Potential distribution in control cabinets
• Industrial automation systems
• Building infrastructure wiring

Key specifications

• Product Type: Cross-connector
• Number of Poles: 5
• Rated Current: 24 A
• Rated Voltage: 800 V
• Nominal Conductor Cross-section: 2.5 mm²
• Color: Yellow
• Material: Wemid (Polyamide)
• Pitch: 5.1 mm
• Mounting Type: Plug-in
• Operating Temperature: -50 °C to +100 °C
• Flammability Rating: UL 94 V-0
• Insulation Resistance: > 10^8 Ω
• Pollution Degree: 3
• Connection Type: Potential distribution
• Series: ZQV
• Approvals: CE, RoHS compliant

Recommendations

For optimal performance, use with compatible Weidmüller terminal blocks. Ensure proper installation according to manufacturer guidelines.
