WEISS WHS450048FZ wandbeugel staal 450mm Wit 39019

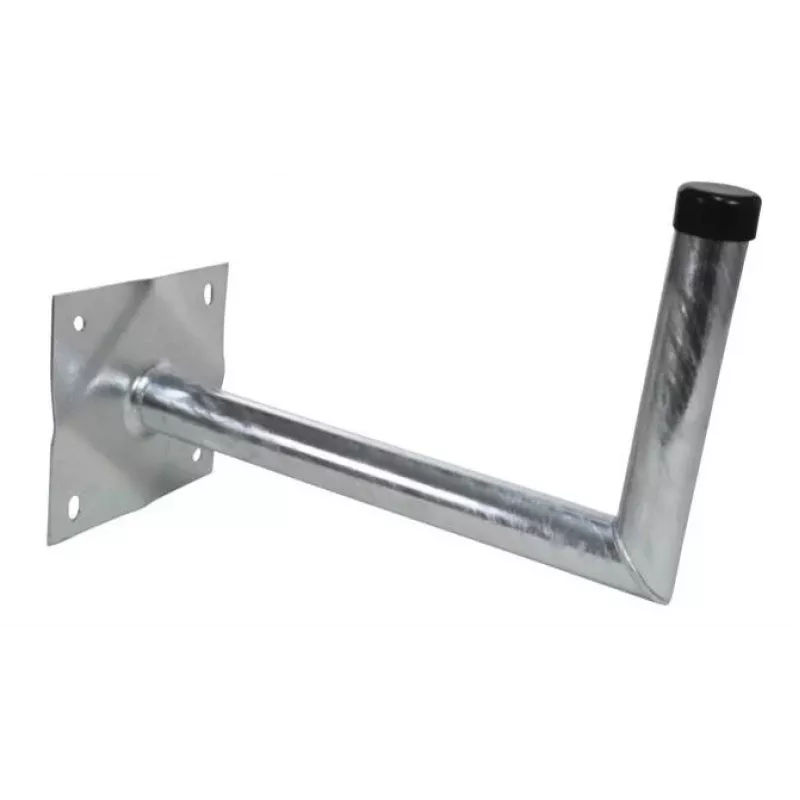

Mounting antennas and satellite dishes on a wall can be challenging without a sturdy, corrosion-resistant bracket. The WEIß WHS450048FZ wall mount bracket solves this by providing a robust steel arm with a 450 mm wall clearance, ideal for satellite dishes, DVB-T antennas, and radio antennas.

Who is it for

Installers and homeowners who need a reliable wall mount for outdoor antennas. The bracket suits mast or tube diameters of 48 mm and is built for long-term outdoor use.

Main features

• Steel construction with hot-dip galvanization and white powder coating for corrosion protection.
• 450 mm wall clearance for optimal signal reception.
• Wall plate dimensions of 150 x 150 mm with four 10 mm mounting holes.
• Straight offset design for simple installation.

Specifications

• Material: Steel
• Finish: Hot-dip galvanized and powder-coated
• Colour: White
• Wall clearance: 450 mm
• Mast/tube diameter: 48 mm
• Wall plate dimensions: 150 x 150 mm
• Number of mounting holes: 4
• Mounting hole diameter: 10 mm
• Application: Satellite dishes, DVB-T antennas, radio antennas
• Corrosion protection: Hot-dip galvanized
• Mounting type: Wall
• Offset type: Straight
• Recommended fasteners: M10 screws (not included)

Tips

Use appropriate wall anchors for your wall type. Ensure the bracket is level before tightening screws.
