Wipschakelaar Bachmann 924.134

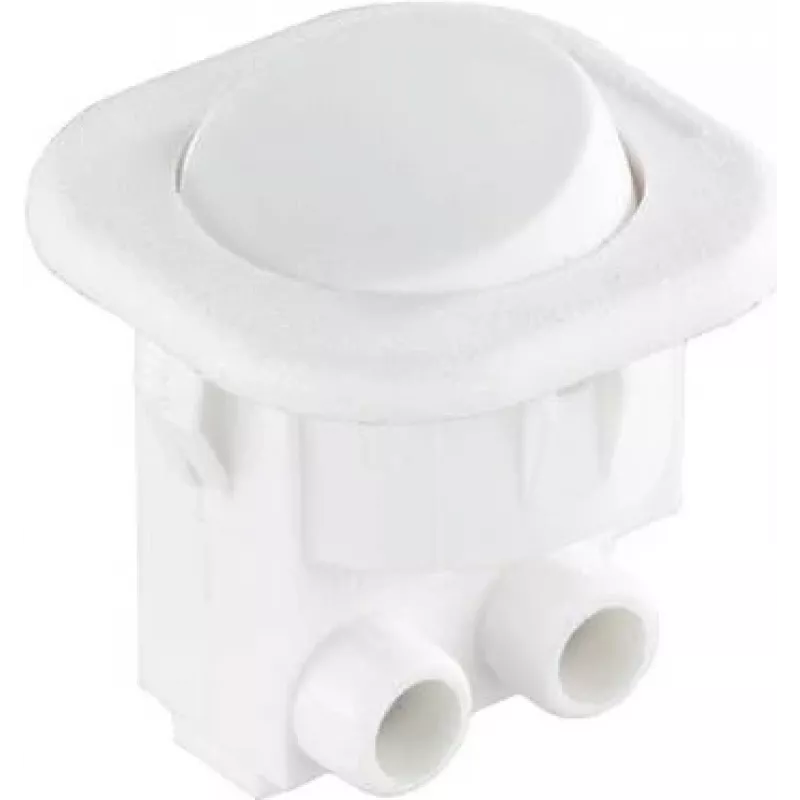

The Bachmann 924.134 is a white single-pole rocker switch designed for switching secondary circuits, for example those of halogen lamps. It features a threaded mounting hole with an installation dimension (hole) of 21.7 mm and screwed contacts. The switch includes contact protection to reduce the risk of accidental touch and is suitable for residential and commercial electrical installations where a compact, panel-mounted control is required.

Advantages

The rocker switch offers a compact 21.7 mm installation diameter that fits into tight panel cutouts and provides reliable screwed contacts for secure electrical connections. Its contact protection improves user safety during operation, and the single-pole configuration simplifies wiring for switching low-voltage secondary lamp circuits.

Suitable for

• Switching secondary circuits of halogen lamps
• Panel-mounted control in furniture or lighting fixtures
• Low-voltage switching tasks in residential and commercial installations

Key specifications

• Brand: Bachmann
• Model / MPN: 924.134
• EAN: 4016514016518
• Type: Single-pole rocker switch
• Color: White
• Installation dimension (hole): 21.7 mm
• Contacts: Screwed contacts
• Protection: Contact protection (against accidental touch)

How to use

Prepare a panel opening of 21.7 mm and insert the switch so it seats securely. Connect the secondary circuit wiring to the screwed contacts according to the circuit schematic, ensuring power is disconnected before wiring. Tighten the screws to secure conductors and verify correct operation by switching the rocker to the on and off positions. Reconnect power and check the controlled halogen lamp or load for proper function.

Recommendations

Use the Bachmann 924.134 only for appropriate low-voltage secondary circuits and ensure all installation and local electrical regulations are followed. Do not exceed the rated voltage/current of the connected load and perform installations with the power isolated.
