Wirewin 19-inch wandbehuizing, eendelig, 600x600mm, afneembare zijwanden (WCAB 600X600X12U)

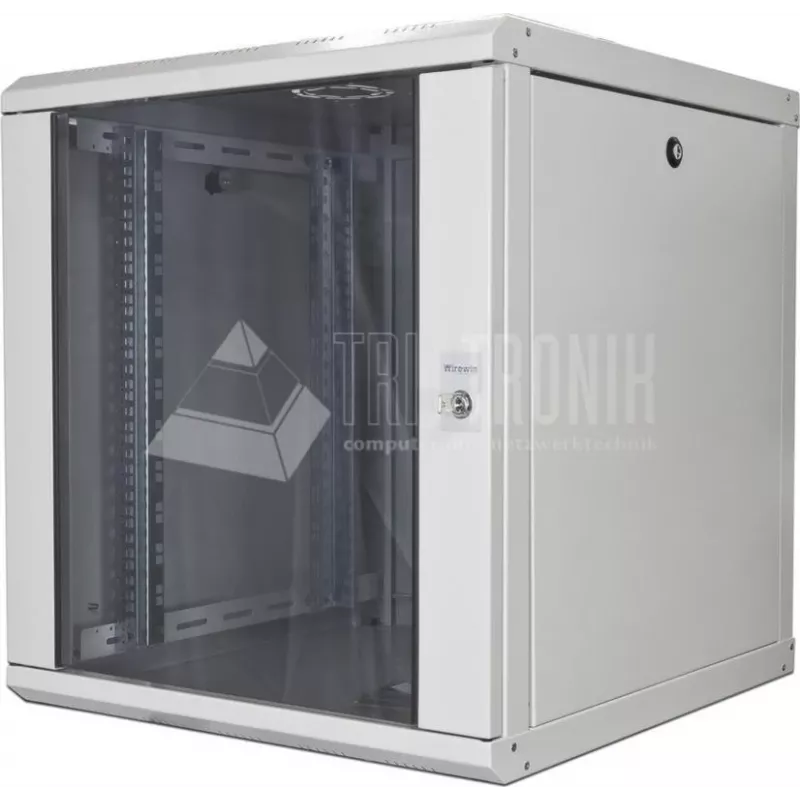

The Wirewin WCAB 600X600X12U is a 12U wall-mount cabinet built on a one-part welded frame, giving it a rigidity that many flat-pack alternatives lack. Its 600x600 mm footprint suits shallow network equipment, while the removable and lockable side panels simplify cable routing and maintenance.

Highlights

• 12U, 19-inch rack with adjustable mounting rails
• Wall-mount design; external dimensions 600 x 600 x 635 mm
• SPCC cold rolled steel frame with powder-coated black finish
• Tempered glass front door with key lock, 180° opening
• Removable and lockable side panels
• Top and bottom cable entry with brush strips
• Prepared for fan unit on top
• 60 kg load capacity

In daily use

The cabinet is suited for small network installations where floor space is limited. The removable side panels allow access from both sides during installation, and the adjustable rails accommodate equipment up to approximately 500 mm deep. The tempered glass door provides visibility of indicator LEDs without opening the cabinet.

Full specifications

• Rack standard: 19 inch
• Rack units: 12U
• Mounting type: wall mount
• External dimensions: 600 mm (W) x 600 mm (D) x 635 mm (H)
• Material: SPCC cold rolled steel
• Door: tempered glass, lockable, 180° opening angle
• Side panels: removable and lockable
• Cable entry: top and bottom with brush strips
• Ventilation: prepared for fan unit on top
• Load capacity: 60 kg
• Protection class: IP20
• Colour: black (RAL 9005)
• Surface finish: powder coated
• Max. installation depth: approx. 500 mm

Final note

This cabinet is a solid choice for structured cabling in branch offices or industrial environments where wall mounting is preferred.
