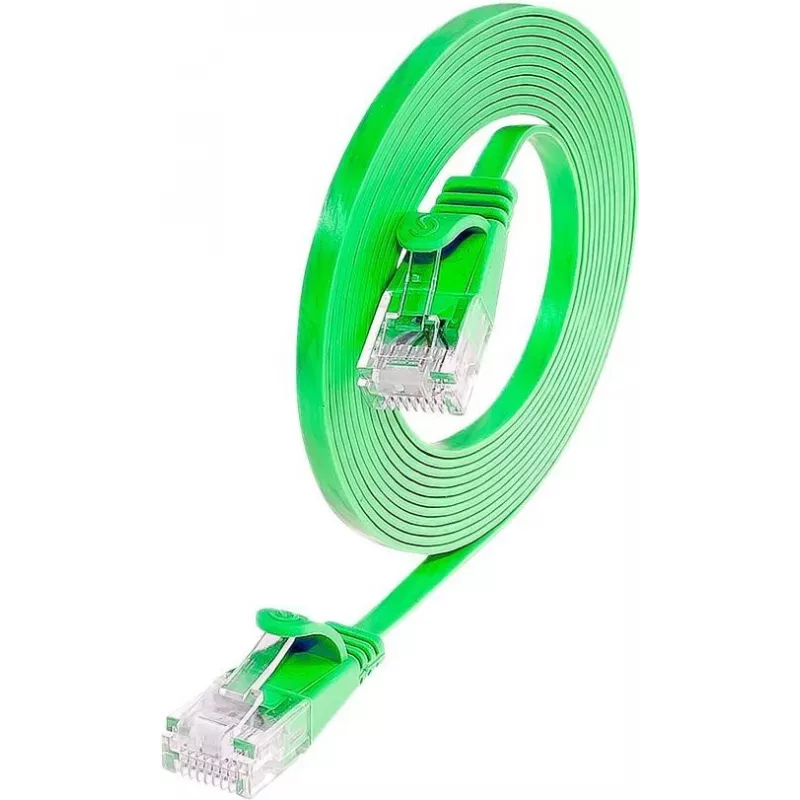

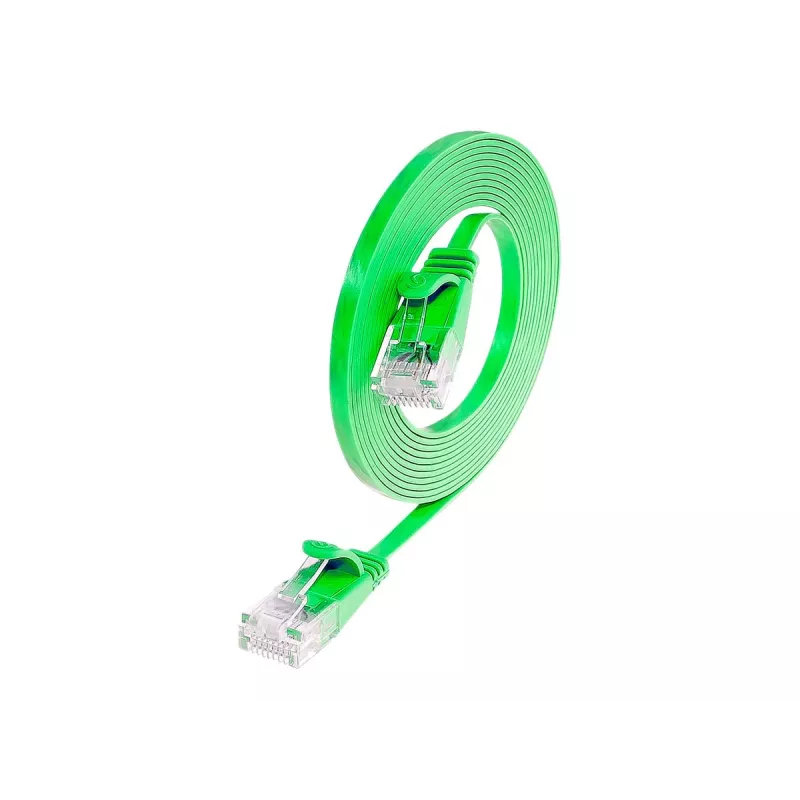

Wirewin Cat.6 Slim patchkabel U/UTP 0,5 m groen PKW-SLIM-KAT6 0.5 GN

This slimline Cat.6 patch cable from SLIM WIREWIN offers a space-saving solution for high-density network environments. Its reduced outer diameter of approximately 3.8 mm allows for cleaner cable management and improved airflow in racks and cabinets, while still delivering Gigabit Ethernet performance.

Highlights

• Cat.6 performance with up to 250 MHz bandwidth and 1 Gbps data transfer rate
• Slim design with a cable diameter of only 3.8 mm for easier routing and better airflow
• Unshielded U/UTP construction with stranded copper conductors (AWG 32) for flexibility
• Snagless gold-plated RJ45 connectors prevent damage to locking tabs during installation
• PVC jacket in green for colour-coded network identification

In daily use

With a length of 0.5 m, this patch cable is ideal for short connections between patch panels, switches, and servers in data centres or wiring closets. The slim profile reduces clutter and makes it easier to trace and manage cables. The snagless boot protects the connector clip when pulling cables through tight spaces, and the green jacket allows for quick visual identification of network segments.

Full specifications

• Cable type: Cat.6 patch cable
• Shielding: U/UTP (unshielded)
• Length: 0.5 m
• Colour: Green
• Connector type: RJ45 male to RJ45 male
• Conductor material: Stranded copper
• Conductor gauge: AWG 32
• Jacket material: PVC
• Cable diameter: 3.8 mm
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1 Gbps
• PoE support: Yes
• Wiring standard: TIA/EIA-568B
• Boot type: Snagless
• Number of pairs: 4 twisted pairs
• Connector plating: Gold-plated contacts

Final note

A reliable and space-efficient choice for Gigabit Ethernet connectivity in dense network installations.
